High Temperature Ceramic Fiber Rope
Product Description:
Temp Grade: 1140°C,1260°C
Density: 500kg/m₃, 550kg/m₃
Round Rope: 6-80mm(Dia)
Square Rope: 6×6-80x80mm
Customized specification is acceptable.
Share

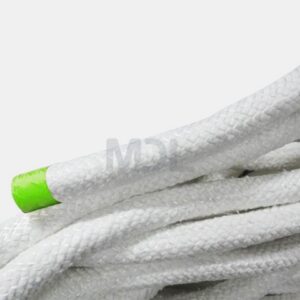

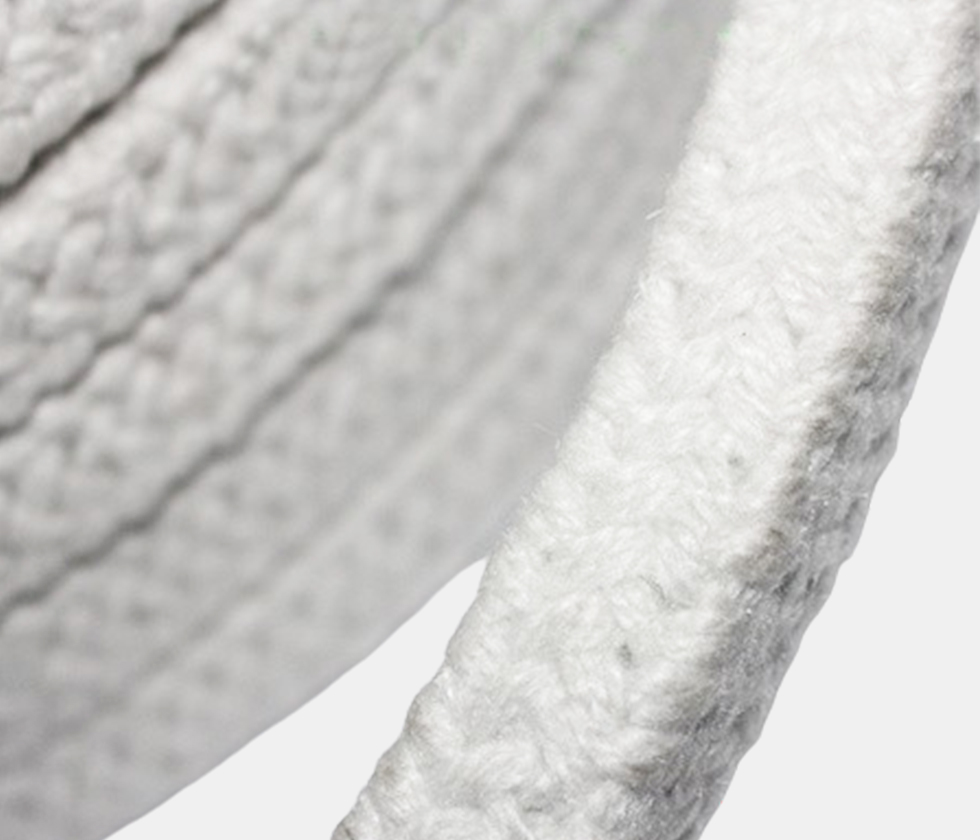

High Temperature Ceramic Fiber Rope
Mindelun offers high temperature ceramic fiber rope for industrial thermal insulation and sealing applications. Made from ceramic fiber yarn, this flexible refractory insulation product helps reduce heat transfer around furnace openings, equipment joints, and other high-temperature areas.
Available in different constructions and selected reinforcement options, ceramic fiber rope can be specified according to installation requirements and operating conditions. Mindelun supports customized dimensions and packaging for insulation distributors, industrial contractors, equipment manufacturers, and international buyers.
Benefits of Ceramic Fiber Rope Insulation
- Thermal Insulation: Helps limit heat loss around compatible sealing points and equipment openings.
- Flexible Installation: Can accommodate different profiles and sealing spaces.
- Versatile Construction: Twisted, round braided, and square braided types are available according to product range.
- Reinforcement Choices: Selected grades may incorporate glass fiber filament or metal wire reinforcement.
- Industrial Applications: Suitable for a range of furnace, kiln, boiler, and heat-treatment equipment.
- Flexible Procurement: Customized sizes and packaging can be discussed for project orders and wholesale supply.
Available Ceramic Fiber Rope Constructions
Twisted Ceramic Fiber Rope
Twisted rope is formed by twisting ceramic fiber yarns into a flexible strand. It is used for selected insulation filling and sealing applications where flexibility and conformity are required.
Round Braided Ceramic Fiber Rope
Round braided rope features a circular profile and braided outer structure. It is suitable for compatible furnace doors, inspection openings, and equipment covers requiring a round sealing material.
Square Braided Ceramic Fiber Rope
Square braided rope provides a square cross-section for installation in suitable grooves and rectangular sealing spaces. It is used in selected industrial heating and high-temperature insulation systems.
Product Specifications
| 1 | Item | Unit | Test Result | Test Result |
| 2 | Al₂O₃ | / | ≧45 | ≧45 |
| 3 | Al₂O₃+SiO₂ | (℃) | ≧96 | ≧96 |
| 4 | Using temp | (℃) | 650 | 1000 |
| 5 | Basic materials | / | CF fiber+Glass fiber | CF fiber+Stainless steel fiber |
| 6 | Fiber diameter | (mm) | 2–5 | 2–5 |
| 7 | Hot shrinkage rate | 1150C*9hrs (%) | ≤4 | ≤4 |
| Thermal conductivity | 800C(w/m.k) | ≤0.2 | ≤0.2 | |
| 8 | LOI | (%) | 18±3 | 18±3 |
| 9 | Shot content | (%) | 0 | 0 |
| 10 | Bulk density | (kg/m3) | 350-600 | 350-600 |
Technical note: Maximum classification temperature does not necessarily indicate the recommended continuous operating temperature. Reinforcement materials and actual service conditions can affect the usable temperature range. Please confirm the technical data for the selected grade.
Industrial Applications
High temperature ceramic fiber rope is used in selected applications such as:
- Furnace and kiln door sealing
- Boiler inspection doors and access openings
- Industrial oven covers and heat-treatment equipment
- High-temperature equipment joints
- Thermal insulation around compatible pipe and duct connections
- Selected gasket and packing applications
The appropriate rope structure should be selected according to the installation space, compression requirements, temperature, and exposure conditions. Applications involving pressure containment, direct flame, or severe abrasion require specific technical evaluation.
Custom Ceramic Fiber Rope for B2B Buyers
Mindelun supports industrial customers seeking reliable ceramic fiber insulation materials for maintenance, equipment production, and project supply. Product selection can be based on rope construction, dimensions, reinforcement requirements, operating temperature, and order quantity.
For an accurate quotation, please share your required cross-section or diameter, roll length, operating conditions, quantity, and packaging preferences. Drawings or samples can also help clarify non-standard requirements, subject to production capability.
Contact Mindelun to discuss your requirements for high temperature ceramic fiber rope and other industrial insulation materials.
Related Insulation Products
Explore our Ceramic Fiber Blanket, Ceramic Fiber Board, and Ceramic Fiber Module for complementary high-temperature insulation solutions.
For furnace lining applications, visit our Industrial Furnace Insulation page or contact Mindelun for product selection and quotation support.
