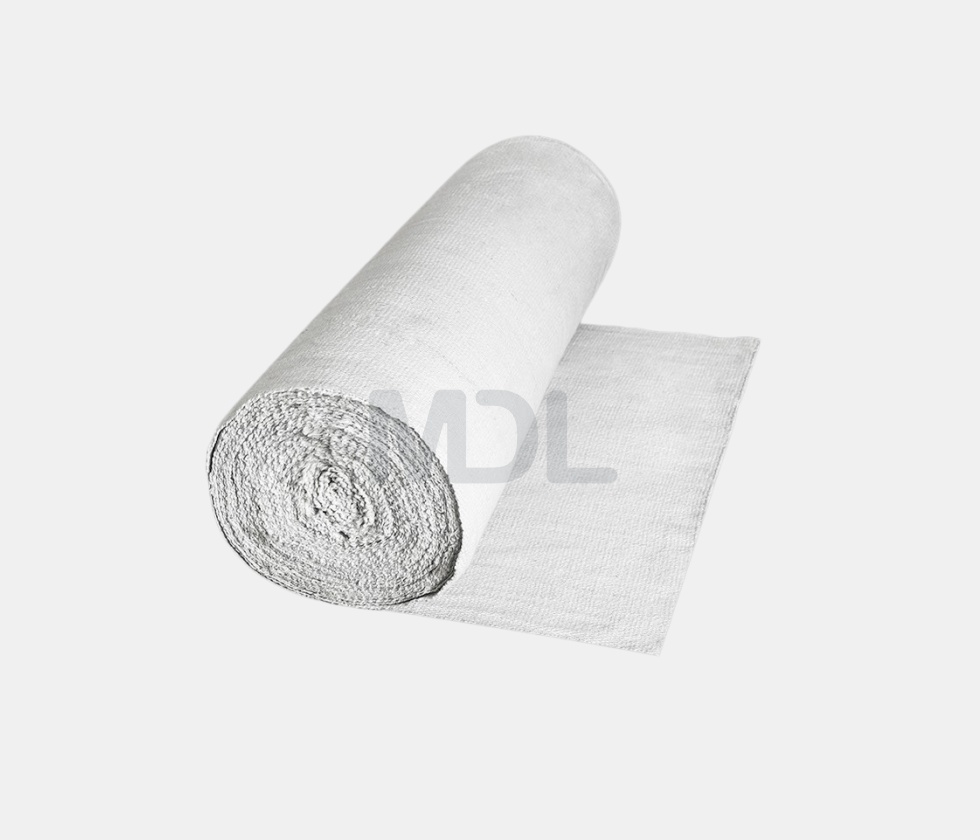

CERAMIC FIBER CLOTH
Product Description:
Temp Grade: 1000°C,1260°C
Density: 500kg/m₃, 550kg/m₃
Specification:
• 2 x1000 x 30000mm
• 3×1000 x 30000mm
• 4×1000 x 30000mm
• 5×1000 x 20000mm
Customized specification is acceptable.
product details
• DESCRIPTION
Ceramic fiber cloth is made from ceramic fiber plus a certain proportion of organic fiber, lined with glass fiber (steel wire) spun into yarn, and woven into cloth, the width and length all can be customized.
• PROPERTIES
Ø High temperature resistance.
Ø Low thermal conductivity, thermal shock resistance.
Ø Excellent high temperature insulation performance.
Ø Long service life and Low heat capacity.
Ø Good resistant to corrosion of non-ferrous metals such as aluminum and zinc.
Ø Low temperature and high temperature strength.
Ø Non-toxic, harmless, no adverse effects on the environment.
• APPLICATION
Ø Heat insulation of various kilns, high temperature pipes and containers.
Ø Furnace door, valve, flange seal, fire door and fire roller curtain materials.
Ø High temperature furnace door sensitive curtain.
Ø Engine and instrument insulation, fireproof cable covering material.
Ø High temperature fireproof material; Heat insulation covering cloth, high temperature expansion joint filler, flue lining.
Ø High temperature labor protection products, fireproof clothing.
Ø High temperature filtration, sound absorption and other alternative asbestos applications.
• SPECIFICATION
| Item | Unit | Test Result | Test Result |
| Color | / | White | White |
| Specification temp | (℃) | 1260(Stainless steel fiber) | 1000(Glass fiber) |
| Using Temp | (℃) | 1000 | 650 |
| Fiber diameter | (um) | 44200 | 44200 |
| Shot content | (%) | ≤8.5 | ≤8.5 |
| Thermal conductivity of average temperature | （W/m.k) | 0.13-0.19(538℃,8pcf） | 0.13-0.19(538℃,8pcf） |
| (%) | 0.075-0.085(1232℃*24h） | 0.075-0.085(1232℃*24h） | |
| Al2O₃ | (%) | ≧45-46 | ≧45-46 |
| SiO₂ | (%) | 51-52 | 51-52 |
| Fe₂O₃ | (%) | ＜0.43 | ＜0.43 |
| Na₂O+K₂O | (%) | 0.7-1.2 | 0.7-1.2 |
| Thickness | (mm) | 2/3/4/5 | |
| Width | (mm) | 1000 | |
| Length | (mm) | 20000/30000 | |
