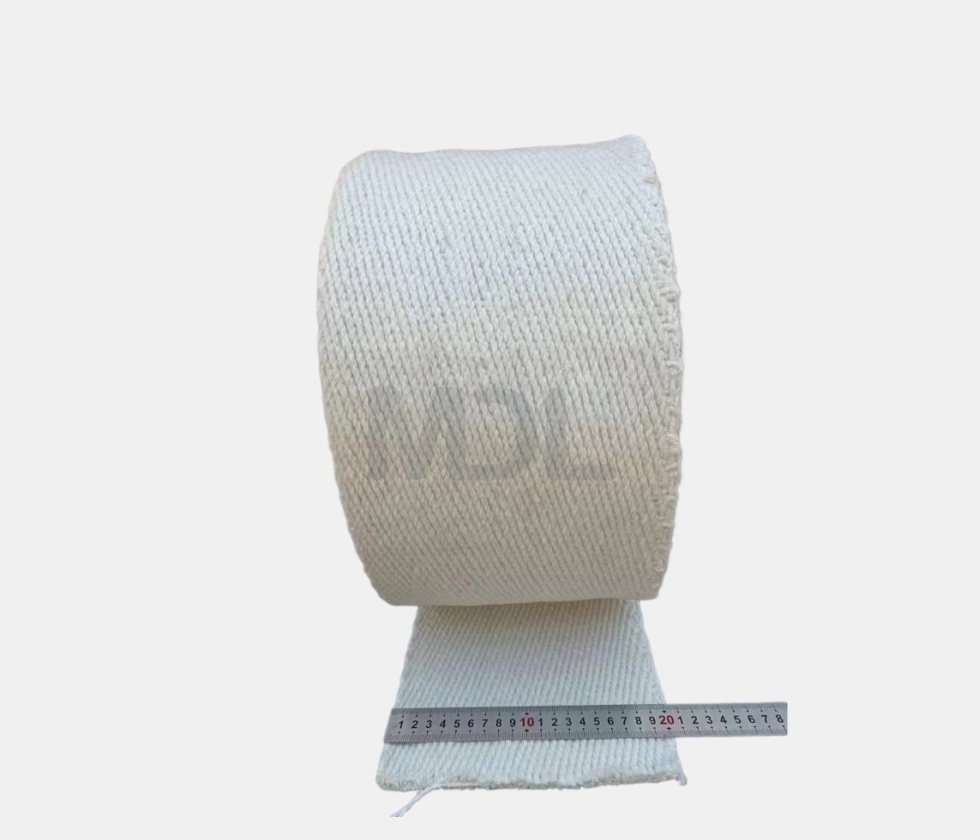

Ceramic Fiber Tape
Product Description:
Temp Grade: 1000°C,1260°C
Density: 500kg/m₃, 550kg/m₃
Specification:
• 2 x25/50/75/100 x 30000mm
• 3×25/50/75/100 x 30000mm
• 4×25/50/75/100 x 30000mm
• 5×25/50/75/100 x 20000mm
Customized specification is acceptable.
Share
product details
• DESCRIPTION
Ceramic fiber tape is made from ceramic fiber blended with a certain proportion of organic fiber, reinforced with glass fiber or steel wire spun into yarn, and woven into cloth. The woven material is then cut into tapes of different widths according to application requirements.
As a professional ceramic fibre tapes supplier, Mindelun provides ceramic fiber insulation tape, ceramic tape, and ceramic fiber tapes for high-temperature insulation, sealing, and fire-resistant applications. Our ceramic fiber tape high temperature solutions are suitable for demanding industrial insulation applications.
• PROPERTIES
Ø High temperature resistance.
Ø Low thermal conductivity, thermal shock resistance.
Ø Excellent high temperature insulation performance.
Ø Long service life and Low heat capacity.
Ø Good resistant to corrosion of non-ferrous metals such as aluminum and zinc.
Ø Low temperature and high temperature strength.
Ø Non-toxic, harmless, no adverse effects on the environment.
• APPLICATION
Ø Heat insulation of various kilns, high temperature pipes and containers.
Ø Furnace door, valve, flange seal, fire door and fire roller curtain materials.
Ø High temperature furnace door sensitive curtain.
Ø Engine and instrument insulation, fireproof cable covering material.
Ø High temperature fireproof material; Heat insulation covering cloth, high temperature expansion joint filler, flue lining.
Ø High temperature labor protection products, fireproof clothing.
Ø High temperature filtration, sound absorption and other alternative asbestos applications.
• SPECIFICATION
| Item | Unit | Test Result | Test Result |
| Color | / | White | White |
| Specification temp | (℃) | 1260(Stainless steel fiber) | 1000(Glass fiber) |
| Using Temp | (℃) | 1000 | 650 |
| Fiber diameter | (um) | 44200 | 44200 |
| Shot content | (%) | ≤8.5 | ≤8.5 |
| Thermal conductivity of average temperature | （W/m.k) | 0.13-0.19(538℃,8pcf） | 0.13-0.19(538℃,8pcf） |
| (%) | 0.075-0.085(1232℃*24h） | 0.075-0.085(1232℃*24h） | |
| Al2O₃ | (%) | ≧45-46 | ≧45-46 |
| SiO₂ | (%) | 51-52 | 51-52 |
| Fe₂O₃ | (%) | ＜0.43 | ＜0.43 |
| Na₂O+K₂O | (%) | 0.7-1.2 | 0.7-1.2 |
| Thickness | (mm) | 2/3/4/5 | |
| Width | (mm) | 25/50/75/100 | |
| Length | (mm) | 20000/30000 | |
