Ceramic Fiber Paper Gasket
Product Description:
Temp Grade: 1050°C,1260°C,1400°C, 1430°C
Density: 180kg/m₃, 200kg/m₃
Specification:
• 0.5/1/2/3/4/5/6/10mm in Thickness
Shape&diameter and length all can be Customized.
Share
• DESCRIPTION

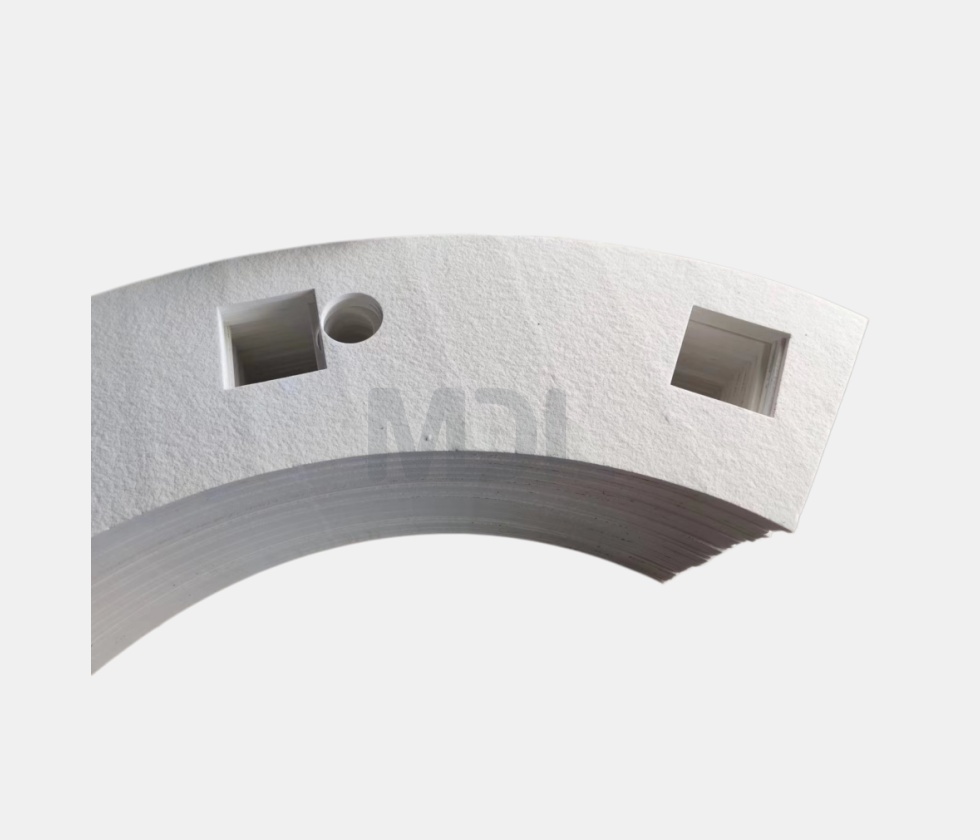

Ceramic fiber paper gasket is manufactured from high-quality ceramic fiber paper, the ceramic fibers paper are formed into different shape gasket paper with a specific thickness and strength, providing reliable thermal insulation and sealing performance for high-temperature applications.
The ceramic fiber paper gasket sheet is available in thicknesses ranging from 0.5 mm to 10 mm. Its diameter and shape can be customized according to the customer’s drawings, making it suitable for various industrial sealing requirements.
Flameworks ceramic fiber paper gasket sheet and other customized ceramic fiber gasket paper solutions are suitable for high-temperature sealing and insulation applications. As a ceramic fiber gaskets supplier, Mindelun provides ceramic fiber paper gasket products in different sizes and specifications to meet specific customer requirements.
• PROPERTIES
Ø High strength tear resistance.
Ø High flexibility.
Ø Low slag ball content.
Ø Accurate thickness.
Ø Good thermal shock resistance and chemical stability.
Ø Low thermal conductivity.
Ø Environment-protective.
• APPLICATION
Ø Flange sealing of various industrial furnaces, heating equipment, high-temperature pipelines, as well as insulation sealing of internal combustion engines and exhaust pipes.
Ø Insulating and heat-preserving material for household appliances such as hair dryers, ovens and induction cookers, also electrical insulating gasket for industrial electric furnaces.
Ø Used as a glass demolding pad, inner lining of cast aluminum models, and anti-sticking isolation gasket for sintered products in glass, metallurgy and ceramic industries.
Ø Insulating filling for fireproof doors and rolling shutters, or for filling and sealing expansion joints.
• SPECIFICATION
| Item | Unit | Test Result | Test Result | Test Result | Test Result | |
| 2 | Specification temp | (℃) | 1260(ST) | 1260(HP) | 1360(HA) | 1430(HZ) |
| 3 | Working temperature | (℃) | 1050 | 1100 | 1200 | 1350 |
| 4 | Density | (kg/m3) | 180/200 | 180/200 | 180/200 | 180/200 |
| 5 | Permanent shrinkage Rate of liner (24h, density 200kg/m3) | (%) | -3 | -3 | -3 | -3 |
| (1000℃） | (1100℃） | (1200℃） | (1350℃） | |||
| 6 | Thermal conductivity of each heat surface(density 200kg/m3) | （W/m.k) | 0.1(400℃） | 0.1(400℃） | 0.1(400℃） | 0.1(400℃） |
| 0.12（800℃） | 0.12（800℃） | 0.13（800℃） | 0.19（800℃） | |||
| 7 | Moisture content | (%) | ≤1% | ≤1% | ≤1% | ≤1% |
| 8 | Compression strength (density 200kg/m3) | (Mpa) | ≧0.3 | ≧0.3 | ≧0.3 | ≧0.3 |
| 9 | Shot contenT | (%) | ≤10% | ≤10% | ≤10% | ≤10% |
| 10 | Al2O3 | (%) | ≧43 | ≧45 | ≧52 | ≧35 |
| 11 | Al2O3+SiO2 | (%) | 97 | 97 | 97 | 97 |
| 12 | Fe2O3 | (%) | ＜1.0 | ＜1.0 | ＜1.0 | ＜1.0 |
| 13 | Na2O+K2O | (%) | ＜0.5 | ＜0.5 | ＜0.5 | ＜0.5 |
| 14 | Aluminum foil thickness | (mm) | 0.05-0.1 | |||
| 15 | Aluminum foil radiation heat rate | (%) | ≧80 | |||
| 16 | Thickness | (mm) | 1/2/3/4/5/6/10 | |||
| 17 | Width | (mm) | Customized | |||
| 18 | Length | (mm) | Customized | |||
