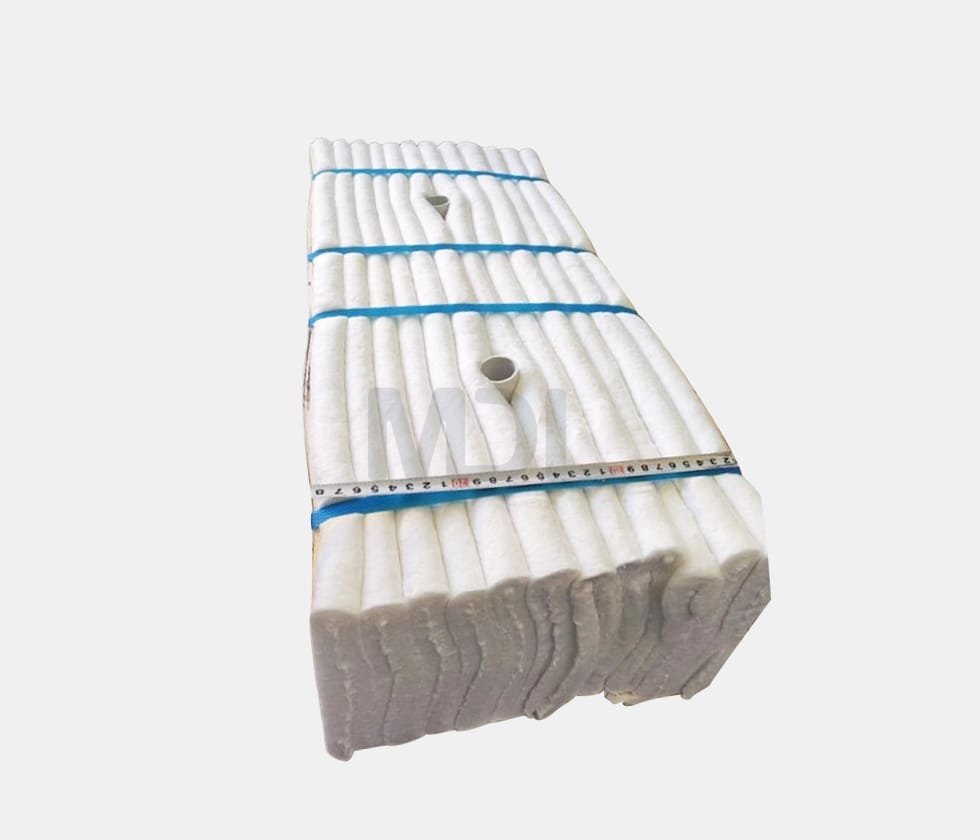

Ceramic Fiber Modules
Product Description:
Temp Grade: 1050°C,1260°C,1400°C, 1430°C
Density: 200kg/m₃, 220kg/m₃, 260kg/m₃
Specification:
• 150x300x300mm
• 200x300x300mm
• 250x300x300mm
• 600x300x300mm
• 300×300 x 300mm
Customized specification is acceptable.
Share
product details
• DESCRIPTION
Ceramic fiber modules is made by folding or cutting ceramic fiber blankets into layers and pressing them into veneer blocks. The veneer blocks can be bonded to backing refractory materials or fiber blocks using ceramic fiber cement, forming a reliable ceramic fiber insulation module.
As a professional ceramic fiber module supplier, Mindelun provides ceramic fiber modules, fiber module, and refractory ceramic fiber module solutions for industrial furnaces, kilns, heat treatment equipment, and other high-temperature insulation applications. These modules help improve thermal insulation performance, reduce heat loss, and support efficient furnace operation.
• PROPERTIES
Ø Low volume weight.
Ø Low thermal conductivity.
Ø Thermal shock resistance, airflow erosion resistance.
Ø High mechanical strength, built-in anchor parts, good safety performance.
Ø The installation is simple, the furnace lining forms a seamless whole after installation, and the thermal insulation effect is good.
• APPLICATION
Ø Ceramic industry: tunnel kiln, shuttle kiln, roller kiln.
Ø Petrochemical industry: atmospheric pressure furnace, conversion furnace, coke furnace, cracking furnace, heating furnace, flue, etc.
Ø Steel industry: ladle cover, heating furnace, annealing furnace, cover furnace, walking furnace, hot air pipe and pipe, etc.
Ø Environmental protection and energy saving industry: waste incinerator, RTO waste gas treatment furnace, SCR environmental protection catalytic furnace, etc.
Ø Refractory thermal insulation of steam engine gas engine and other thermal equipment.
• SPECIFICATION
| 1 | Item | Unit | Test Result/COM | Test Result/ST | Test Result/HP | Test Result/HA | Test Result/ZA | Test Result/HZ |
| 2 | Grade | / | 1000 Fold / stack/ veneer block | 1260 Fold / stack/ veneer block | 1260 Fold / stack/ veneer block | 1360 Fold / stack/ veneer block | 1400 Fold / stack/ veneer block | 1450 Fold / stack/ veneer block |
| 3 | Specification temp | (℃) | 1050 | 1260 | 1260 | 1360 | 1400 | 1450 |
| 4 | Working temperature | (℃) | 800 | 1050 | 1100 | 1150 | 1200 | 1350 |
| 5 | Color | / | White | Pure White | Pure White | Pure White | Pure White | Pure White |
| 6 | Density | (kg/m3) | 220/200/128/96±15 | 220/200/128/96±15 | 220/200/128/96±15 | 220/200/128/96±15 | 220/200/128/96±15 | 220/200/128/96±15 |
| 7 | Permanent shrinkage Rate of liner (24h, density 128kg/m₃) | (%) | -4 | -3 | -3 | -3 | -3 | -3 |
| (1000℃） | (1100℃） | (1000℃) | (1250℃) | (1250℃） | (1350℃） | |||
| 8 | Thermal conductivity of each heat surface(density 128kg/m₃) | （W/m.k) | 0.09(400℃） | 0.09(400℃） | 0.09(400℃) | 0.12(600℃) | 0.132(600℃） | 0.16(800℃） |
| 0.16（800℃） | 0.16（800℃） | 0.16（800℃) 0.20(1000℃) |
0.16（800℃) 0.20(1000℃) |
0.22（1000℃） | 0.22（1000℃） | |||
| 9 | Compression strength (density 128kg/m₃) | (Mpa) | ≧0.04 | ≧0.04 | ≧0.04 | ≧0.06 | ≧0.06 | ≧0.06 |
| 10 | Al₂O₃ | (%) | ≧40 | ≧42 | ≧47 | ≧45 | ≧45 | ≧40 |
| 11 | Al₂O₃+SiO₂ | (%) | 96 | 97 | 99 | 99 | – | – |
| 12 | Al₂O₃+SiO₂+ZrO₂ | (%) | – | – | – | – | 99 | 99 |
| 13 | ZrO₂ | (%) | – | – | – | – | 5–7 | 15–17 |
| 14 | Fe₂O₃ | (%) | ＜1.2 | ＜1.0 | ＜0.2 | ＜0.2 | ＜0.2 | ＜0.2 |
| 15 | Na₂O+K₂O | (%) | ＜0.5 | ＜0.5 | ＜0.2 | ＜0.2 | ＜0.2 | ＜0.2 |
| 16 | Thickness | (mm) | 150/200/250/300/600 | |||||
| 17 | Width | (mm) | 300 | |||||
| 18 | Length | (mm) | 300/600 | |||||
