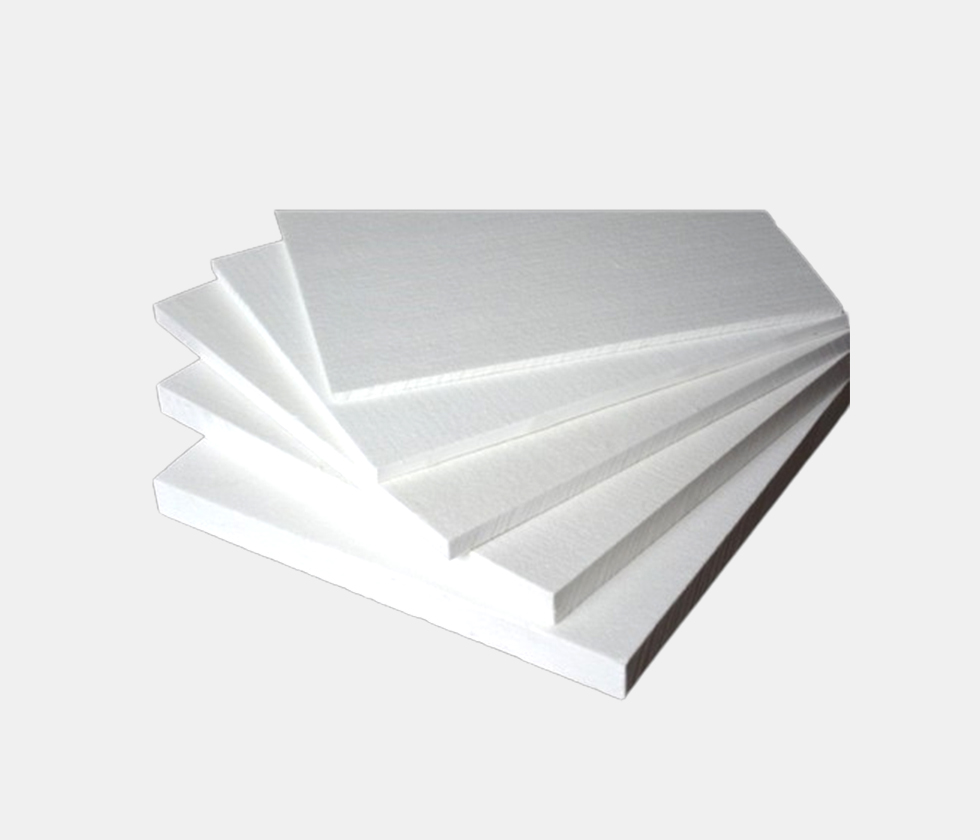

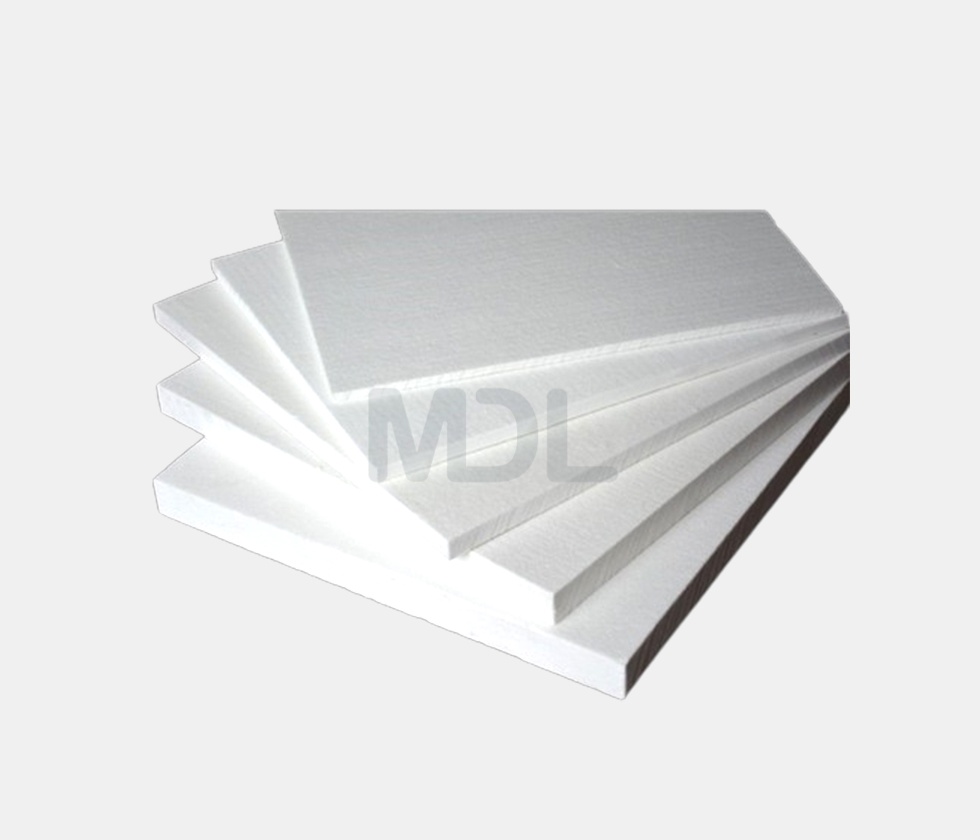

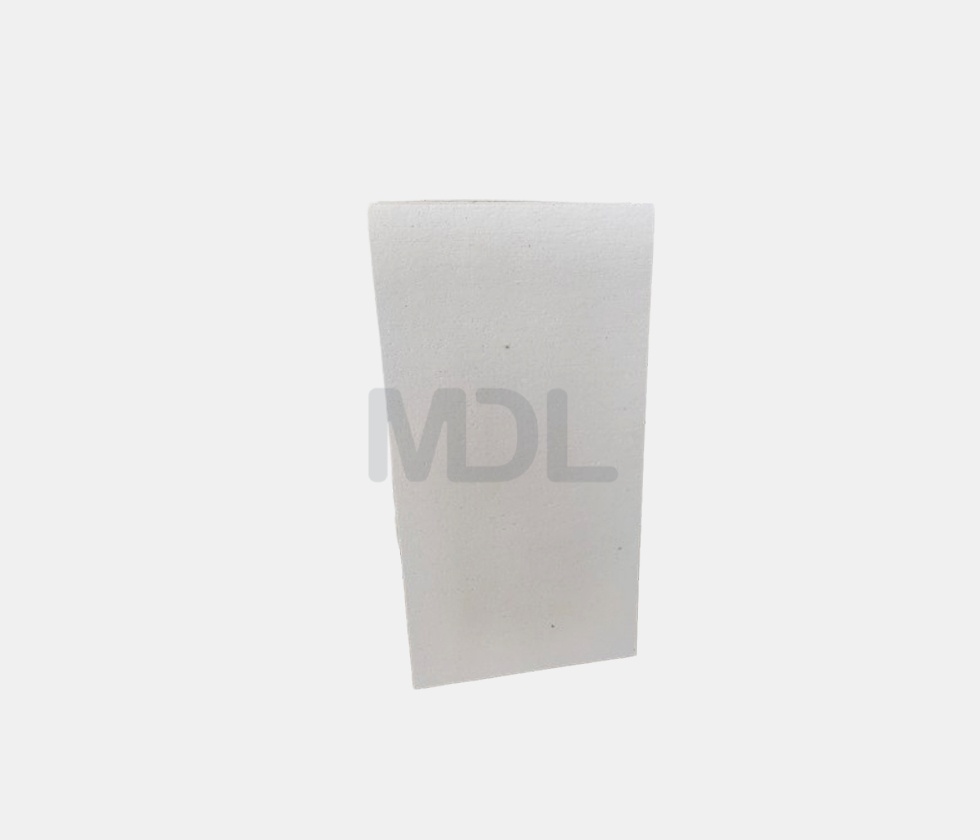

Ceramic Fiber Board
Temp Grade: 1050°C,1260°C,1400°C, 1430°C
Density: 250kg/m₃, 280kg/m₃, 300kg/m₃
Specification:
• 13 x1000 x 1200mm
• 25 x1000 x 1200mm
• 38 x1000 x 1200mm
• 50×1000 x 1200mm
Customized specification is acceptable.
Share
product details
• DESCRIPTION
Ceramic fiber board is made from high-purity raw materials through wet forming, constant-temperature drying, high-temperature sintering, processing, and forming. This manufacturing process produces rigid and durable ceramic fiber boards with excellent thermal insulation and refractory performance.
With high compressive strength, long service life, accurate dimensions, and good flatness, the ceramic fiber insulation board is easy to cut, handle, and install, making construction more convenient and efficient. As a reliable high temperature insulation board and refractory board, it can maintain stable performance in demanding high-temperature environments.
Available in different densities, thicknesses, and temperature grades, our high temperature ceramic fiber board can be customized for specific industrial requirements. It is widely used for furnaces, kilns, boilers, heat-treatment equipment, and other thermal insulation systems. The material can also be used as a ceramic insulation board, or ceramic fiber board for wood stove applications where lightweight, rigid, and high-temperature insulation is required.
As a professional ceramic fiber board manufacturer and supplier, Mindelun provides ceramic fiber board, insulating board for high-temperature sealing, kiln shelf protection, and other insulation applications.
• PROPERTIES
Ø High compressive strength and long service life.
Ø Low thermal capacity, low thermal conductivity.
Ø Non-brittle material, good toughness.
Ø Accurate size, good flatness; Easy to cut and install.
Ø Excellent wind erosion resistance.
Ø Uniform fiber distribution, stable performance.
Ø Excellent sound absorption and noise reduction performance.
• APPLICATION
Ø Construction field: Thermal insulation of building walls, roofs and floors, improving the energy efficiency of buildings and reduce energy waste.
Ø Metallurgical field: Heat insulation of high-temperature furnace lining, pipeline and FRP preparation molding mold.
Ø Chemical industry: Insulation of Chemical high-temperature furnaces or reactors and other devices. Prevent high temperature from spreading out and protect peripheral equipment and personnel security.
Ø Power field: Applied to the insulation of power equipment, such as motors, transformers, capacitors, etc.
• SPECIFICATION
| 1 | Item | Unit | Test Result | Test Result | Test Result | Test Result | Test Result | Test Result |
| 2 | Grade | / | Common/COM | Standard/ST | High purity/HP | High alumina/HA | Zirconia-alumina/ZA | Zirconia/HZ |
| 3 | Specification temp | (℃) | 1150 | 1260 | 1260 | 1360 | 1360 | 1450 |
| 4 | Working temperature | (℃) | 1000 | 1050 | 1100 | 1150 | 1200 | 1350 |
| 5 | Color | / | White | Pure White | Pure White | Pure White | Pure White | Pure White |
| 6 | Density | (kg/m3) | 260/280/300±15 | 260/280/300±15 | 260/280/300±15 | 260/280/300±15 | 260/280/300±15 | 260/280/300±15 |
| 7 | Permanent shrinkage Rate of liner (24h, density 128kg/m₃) | (%) | -4 | -3 | -3 | -3 | -3 | -3 |
| (1000℃） | (1100℃） | (1000℃) | (1250℃) | (1250℃） | (1350℃） | |||
| 8 | Thermal conductivity of each heat surface(density 280kg/m₃) | （W/m.k) | 0.09(400℃） | 0.09(400℃） | 0.09(400℃) | 0.12(600℃) | 0.132(600℃） | 0.16(800℃） |
| 0.13（800℃） | 0.16（800℃） | 0.13（800℃) 0.18(1000℃) |
0.18（1000℃) | 0.22（1000℃） | 0.22（1000℃） | |||
| 9 | Compression strength (density 280kg/m₃) | (Mpa) | ≧0.5 | ≧0.5 | ≧0.5 | ≧0.5 | ≧0.5 | ≧0.06 |
| 10 | Al₂O₃ | (%) | ≧40 | ≧42 | ≧47 | ≧45 | ≧45 | ≧40 |
| 11 | Al₂O₃+SiO₂ | (%) | 96 | 97 | 99 | 99 | – | – |
| 12 | Al₂O₃+SiO₂+ZrO₂ | (%) | – | – | – | – | 99 | 99 |
| 13 | ZrO₂ | (%) | – | – | – | – | 5–7 | 15–17 |
| 14 | Fe₂O₃ | (%) | ＜1.2 | ＜1.0 | ＜0.2 | ＜0.2 | ＜0.2 | ＜0.2 |
| 15 | Na₂O+K₂O | (%) | ＜0.5 | ＜0.5 | ＜0.2 | ＜0.2 | ＜0.2 | ＜0.2 |
| 16 | Thickness | (mm) | 25/50 | |||||
| 17 | Width | (mm) | 500/600 | |||||
| 18 | Length | (mm) | 900/1200 | |||||
