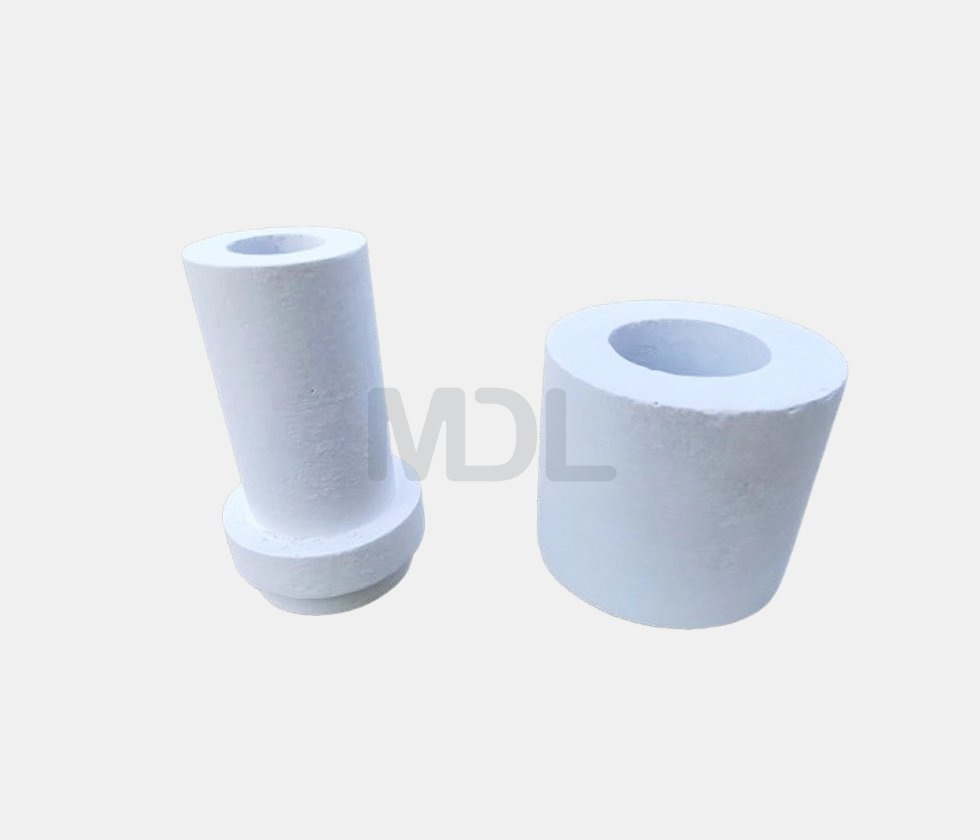

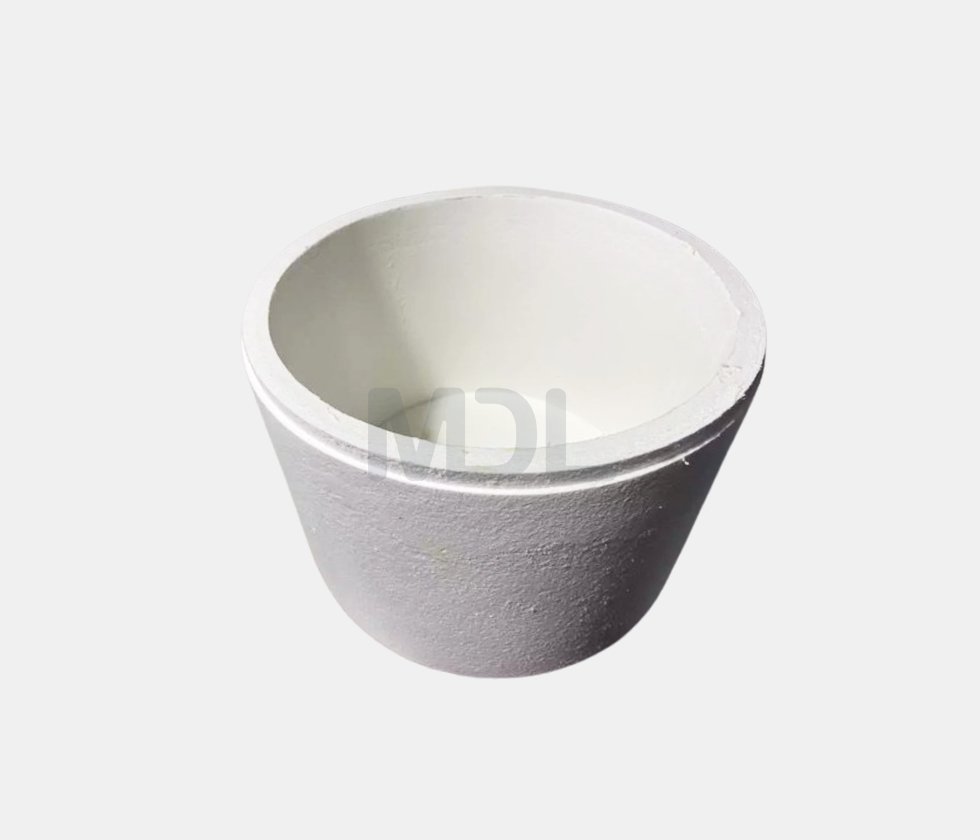

Ceramic Fiber Board Shaped Parts
Product Description:
Temp Grade: 1050°C,1260°C,1400°C, 1430°C
Density: 280kg/m³
Specification:
Thickness: 10mm/20mm/25mm/50mm
Shaped is based on customer’s drawing
Customized specification is acceptable.
Share
product details
• DESCRIPTION
Ceramic fiber board shaped parts are custom-machined insulation components made from high-density ceramic fiber boards. These ceramic fiber shaped parts and ceramic fiber formed shapes can be precisely customized according to specific equipment and insulation requirements, providing excellent heat resistance and dimensional stability. As a reliable ceramic fiber board shaped parts supplier, Mindelun supplies customized insulation components for industrial furnaces, steel plants, petrochemical equipment, power plants, and thermal processing systems where precise insulation and high-temperature performance are required.
• PROPERITIES
Ø Excellent high-temperature resistance.
Ø Lightweight structure.
Ø Good thermal shock resistance.
Ø Easy cutting and CNC machining.
Ø Energy-saving insulation performance.
Ø Custom sizes and special shapes available.
Ø Low thermal conductivity.
• APPLICATION
Ø In steel plants and heat treatment systems, ceramic fiber shaped parts help reduce heat loss and improve furnace efficiency.
Ø Industrial Furnace Insulation: Ceramic fiber board shaped parts are widely used in: Furnace door insulation, Expansion joints, Burner blocks, Heating chamber linings, Kiln car insulation.
Ø Petrochemical Equipment: they are widely used in Pipe insulation, Reactor linings, High-temperature sealing, Thermal protection systems.
Ø Power Generation Industry: Ceramic fiber board insulation components are suitable for boilers, turbines, and exhaust systems requiring lightweight refractory insulation.
• CUSTOM PROCESSING SERVICE
At Mindelun Materials, ceramic fiber boards can be processed into different irregular shapes based on technical drawings or application requirements. Common processing methods include:
Ø CNC cutting
Ø Punching
Ø Grooving
Ø Edge beveling
Ø Hole drilling
• SPECIFICATION
| 1 | Item | Unit | Test Result | Test Result | Test Result | Test Result | Test Result | Test Result |
| 2 | Grade | / | Common/COM | Standard/ST | High purity/HP | High alumina/HA | Zirconia-alumina/ZA | Zirconia/HZ |
| 3 | Specification temp | (℃) | 1150 | 1260 | 1260 | 1360 | 1400 | 1450 |
| 4 | Working temperature | (℃) | 1000 | 1050 | 1100 | 1150 | 1200 | 1350 |
| 5 | Color | / | White | Pure White | Pure White | Pure White | Pure White | Pure White |
| 6 | Density | (kg/m3) | 260/280/300±15 | 260/280/300±15 | 260/280/300±15 | 260/280/300±15 | 260/280/300±15 | 260/280/300±15 |
| 7 | Permanent shrinkage Rate of liner (24h, density 128kg/m₃) | (%) | -4 | -3 | -3 | -3 | -3 | -3 |
| (1000℃） | (1100℃） | (1000℃) | (1250℃) | (1250℃） | (1350℃） | |||
| 8 | Thermal conductivity of each heat surface(density 128kg/m₃) | （W/m.k) | 0.09(400℃） | 0.09(400℃） | 0.09(400℃) | 0.12(600℃) | 0.13(600℃） | 0.16(800℃） |
| 0.13（800℃） | 0.16（800℃） | 0.13（800℃) 0.18(1000℃) |
0.18（1000℃) | 0.22（1000℃） | 0.22（1000℃） | |||
| 9 | Compression strength (density 128kg/m₃) | (Mpa) | ≧0.04 | ≧0.04 | ≧0.04 | ≧0.06 | ≧0.06 | ≧0.06 |
| 10 | Al₂O₃ | (%) | ≧40 | ≧42 | ≧47 | ≧45 | ≧45 | ≧40 |
| 11 | Al₂O₃+SiO2₂ | (%) | 96 | 97 | 99 | 99 | – | – |
| 12 | Al₂O₃+SiO₂+ZrO₂ | (%) | – | – | – | – | 99 | 99 |
| 13 | ZrO₂ | (%) | – | – | – | – | 5–7 | 15–17 |
| 14 | Fe₂O₃ | (%) | ＜1.2 | ＜1.0 | ＜0.2 | ＜0.2 | ＜0.2 | ＜0.2 |
| 15 | Na₂O+K₂O | (%) | ＜0.5 | ＜0.5 | ＜0.2 | ＜0.2 | ＜0.2 | ＜0.2 |
| 16 | Thickness | (mm) | 10/20/25/50 | |||||
| 17 | Width | (mm) | Customized | |||||
| 18 | Length | (mm) | Customized | |||||
