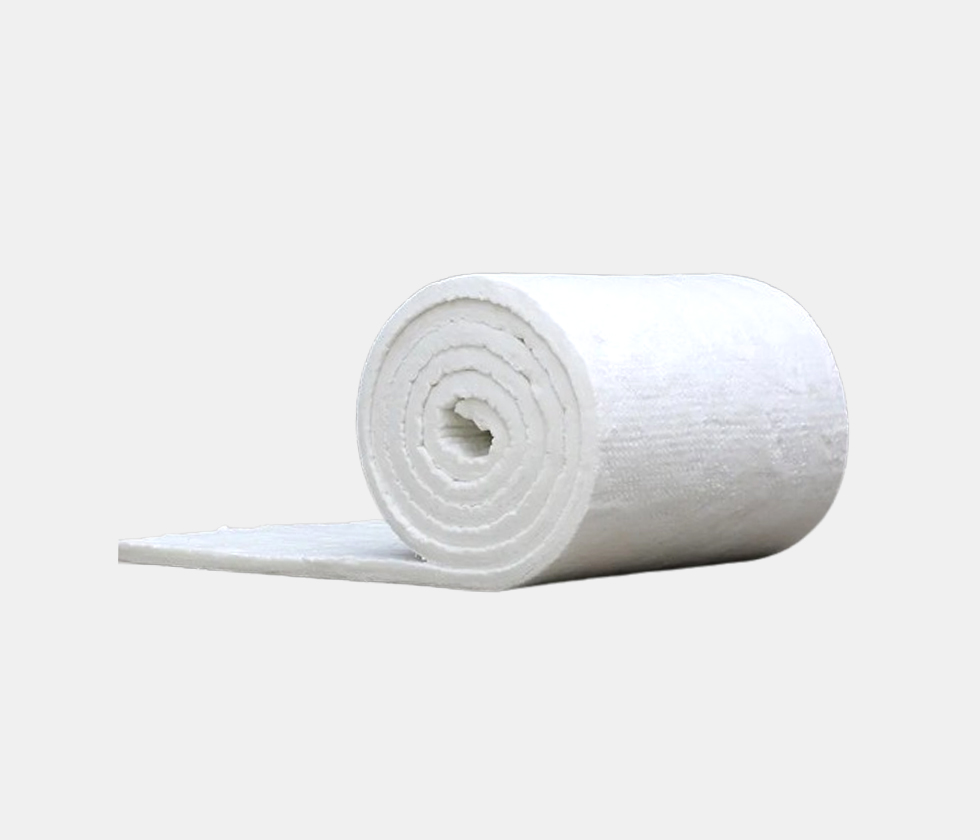

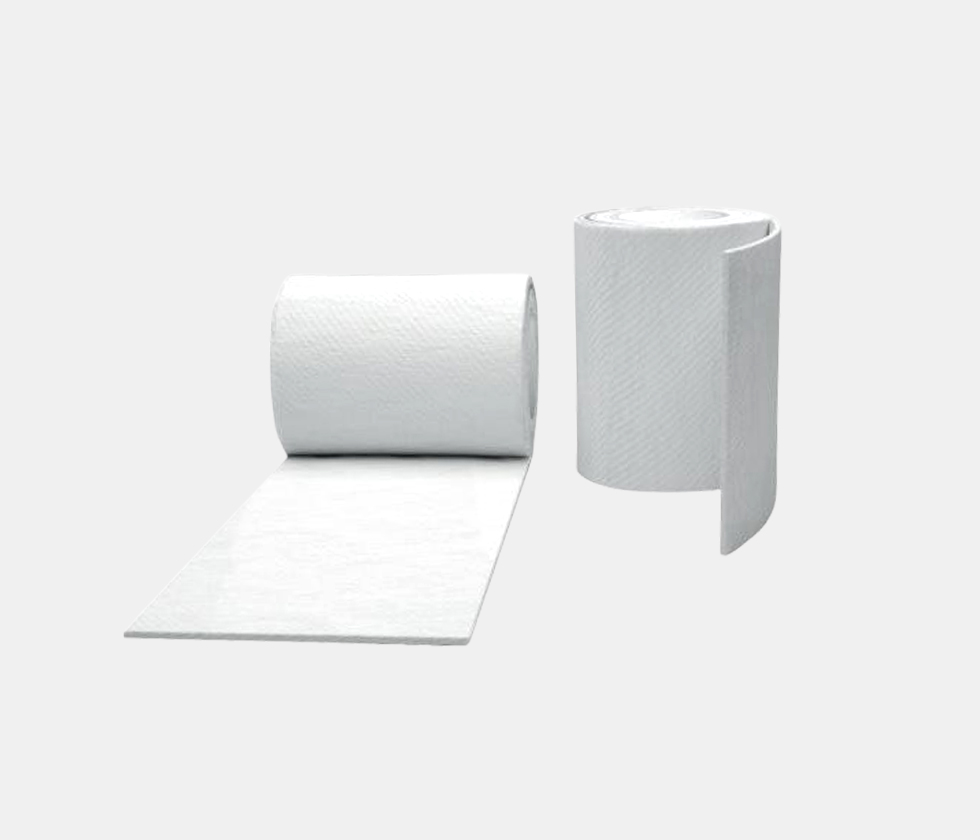

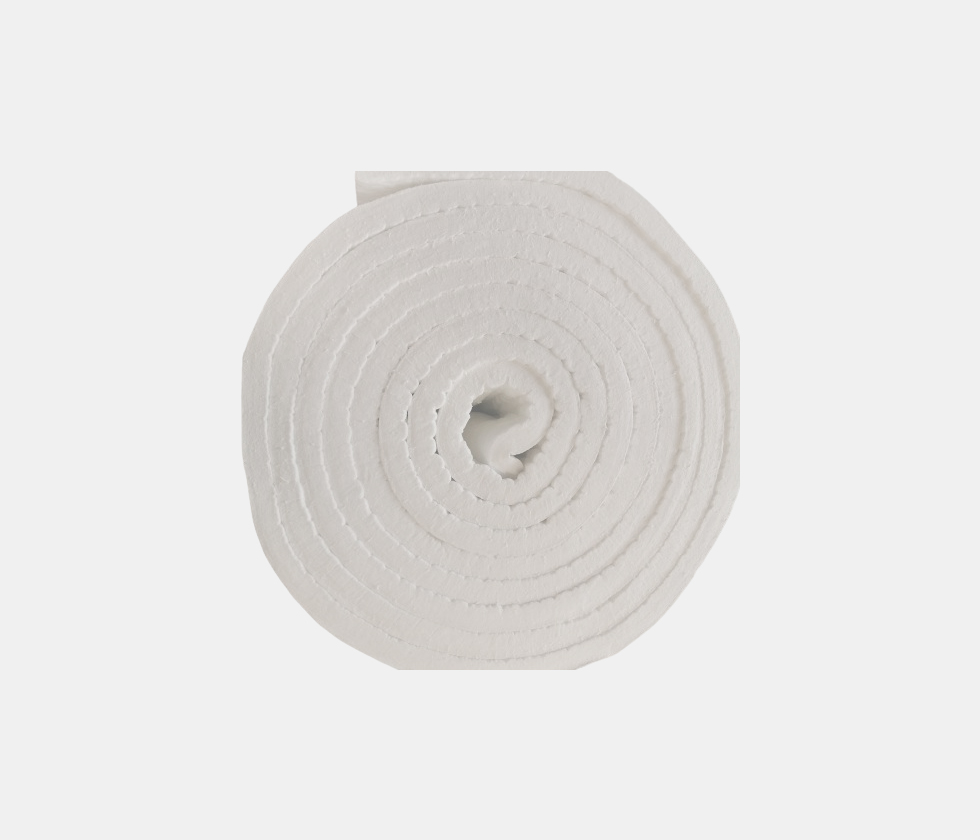

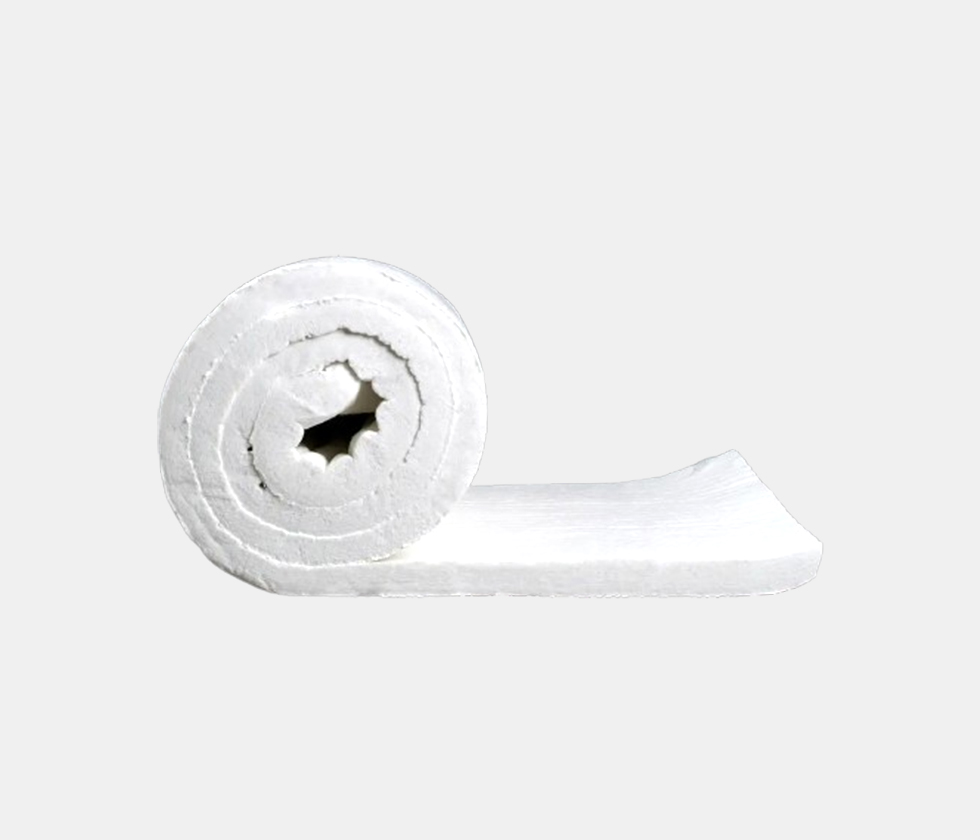

Ceramic Fiber Blanket
Temp Grade: 1050°C,1260°C,1400°C, 1430°C
Density:64kg/m³, 96kg/m³, 128kg/m³, 160kg/m³
Specification:
• 13 x610/1220 x 14400mm
• 25 x610/1220 x7320mm
• 38 x610/1220 x 4810mm
• 50×610/1220x3660mm
Customized specification is acceptable.
Share
product details
• DESCRIPTION
Ceramic fiber blanket is made from high-purity raw materials through high-temperature electromelting, high-speed air blowing and fiberization, followed by needling, heat setting, cutting, and rolling. This manufacturing process produces a lightweight, flexible, and durable ceramic fiber insulation blanket with excellent refractory and thermal insulation properties.
Light in weight and soft to the touch, ceramic fiber blankets are easy to handle, cut, and install. As a reliable high temperature insulation blanket and thermal insulation blanket material, they are widely used for furnaces, kilns, boilers, pipelines, heat-treatment equipment, and other industrial thermal insulation applications.
Available in different densities, thicknesses, and temperature grades, our ceramic blanket insulation can be customized according to specific project requirements. Whether used as ceramic fiber blanket insulation, a ceramic insulation blanket, or a flexible fiber ceramic blanket, it provides effective heat-loss reduction and reliable protection in high-temperature environments.
• PROPERITIES
Ø Excellent handling resistance.
Ø High heat resistance.
Ø Low thermal capacity, low thermal conductivity.
Ø Strong corrosion resistance.
Ø Good thermal stability.
Ø Good chemical stability.
Ø Excellent electrical insulation.
Ø Light weight, easy installation and ECO friendly.
• APPLICATION
Ø For aerospace, iron and steel, petrochemical heat insulation.
Ø Fire and heat insulation of military equipment.
Ø Insulation for wall lining and backing of industrial furnaces and heating devices.
Ø Heat insulation of high temperature equipment and pipeline,Highways, Bridges, tunnels.
Ø Electrical components heat insulation and fire prevention.
Ø For making high temperature gasket, Module, folding block.
• SPECIFICATION
| 1 | Item | Unit | Test Result | Test Result | Test Result | Test Result | Test Result | Test Result |
| 2 | Grade | / | Common/COM | Standard/ST | High purity/HP | High alumina/HA | Zirconia-alumina/ZA | Zirconia/HZ |
| 3 | Specification temp | (℃) | 1050 | 1260 | 1260 | 1360 | 1400 | 1450 |
| 4 | Working temperature | (℃) | 800 | 1050 | 1100 | 1150 | 1200 | 1350 |
| 5 | Color | / | White | Pure White | Pure White | Pure White | Pure White | Pure White |
| 6 | Density | (kg/m3) | 128/96/80/64±15 | 128/96/80/64±15 | 128/96/80±15 | 160/128±15 | 160/128/96±15 | 160/128/96±15 |
| 7 | Permanent shrinkage Rate of liner (24h, density 128kg/m₃) | (%) | -4 | -3 | -3 | -3 | -3 | -3 |
| (1000℃） | (1100℃） | (1000℃) | (1250℃) | (1250℃） | (1350℃） | |||
| 8 | Thermal conductivity of each heat surface(density 128kg/m₃) | （W/m.k) | 0.09(400℃） | 0.09(400℃） | 0.09(400℃) | 0.12(600℃) | 0.132(600℃） | 0.16(800℃） |
| 0.16（800℃） | 0.16（800℃） | 0.16（800℃) 0.20(1000℃) |
0.20（1000℃) | 0.22（1000℃） | 0.22（1000℃） | |||
| 9 | Compression strength (density 128kg/m₃) | (Mpa) | ≧0.04 | ≧0.04 | ≧0.04 | ≧0.06 | ≧0.06 | ≧0.06 |
| 10 | Al₂O₃ | (%) | ≧40 | ≧42 | ≧47 | ≧45 | ≧45 | ≧40 |
| 11 | Al₂O₃+SiO2₂ | (%) | 96 | 97 | 99 | 99 | – | – |
| 12 | Al₂O₃+SiO₂+ZrO₂ | (%) | – | – | – | – | 99 | 99 |
| 13 | ZrO₂ | (%) | – | – | – | – | 5–7 | 15–17 |
| 14 | Fe₂O₃ | (%) | ＜1.2 | ＜1.0 | ＜0.2 | ＜0.2 | ＜0.2 | ＜0.2 |
| 15 | Na₂O+K₂O | (%) | ＜0.5 | ＜0.5 | ＜0.2 | ＜0.2 | ＜0.2 | ＜0.2 |
| 16 | Thickness | (mm) | 12.5/20/25/38/50 | |||||
| 17 | Width | (mm) | 610/1220 | |||||
| 18 | Length | (mm) | 3600/7200/14400 | |||||
