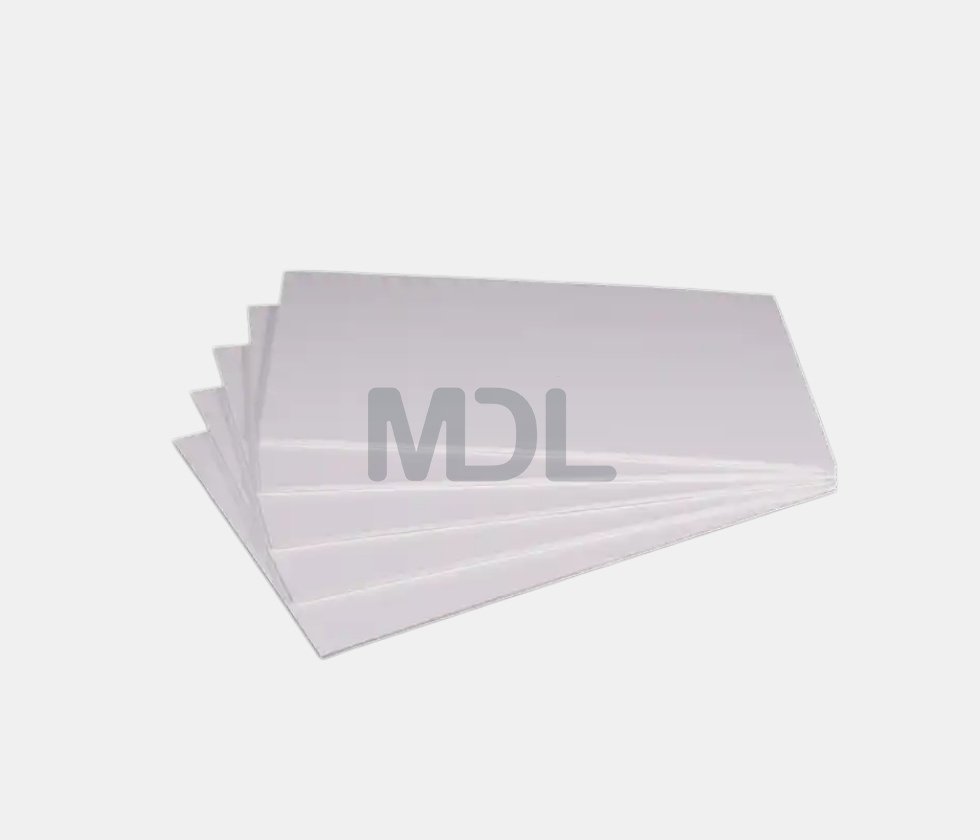

Ceramic Fiber Fireproof Insulation Board
Product Description:
Temp Grade: 1050°C,1260°C,1400°C, 1430°C
Density: 250kg/m₃, 280kg/m₃, 300kg/m₃
Specification:
• 13 x1000 x 1200mm
• 25 x1000 x 1200mm
• 38 x1000 x 1200mm
• 50×1000 x 1200mm
Customized specification is acceptable.
Share
product details
• DESCRIPTION
Ceramic fiber fireproof insulation board is a rigid, high-temperature insulation material designed for applications requiring excellent fire resistance, thermal stability, and structural strength. Made from high-purity aluminum silicate ceramic fibers, the Aluminum Silicate Ceramic Fireproof Fiberboard provides reliable thermal insulation and dimensional stability under demanding operating conditions.
Compared with flexible insulation products such as ceramic fiber blankets, fireproof ceramic fiber board offers greater rigidity, durability, and resistance to deformation. This makes it suitable for furnace linings, industrial equipment, kiln insulation, and other applications where stable fireproof board insulation is required.
As a professional manufacturer and supplier, Mindelun fireproof ceramic fiber board can be customized in different thicknesses, densities, and sizes according to specific application requirements, providing reliable solutions for high-temperature and industrial fireproof insulation.
• PROPERTIES
Ø High compressive strength and long service life.
Ø Low thermal capacity, low thermal conductivity.
Ø Non-brittle material, good toughness.
Ø Accurate size, good flatness; Easy to cut and install.
Ø Excellent wind erosion resistance.
Ø Uniform fiber distribution, stable performance.
Ø Excellent sound absorption and noise reduction performance.
• APPLICATION
Ø Furnace and kiln linings
Ø Fireproof wall panels and partitions.
Ø Boiler and heat processing equipment.
Ø High-temperature gaskets and seals
Ø Backup insulation behind refractory linings
• SPECIFICATION
| 1 | Item | Unit | Test Result | Test Result | Test Result | Test Result | Test Result | Test Result |
| 2 | Grade | / | Common/COM | Standard/ST | High purity/HP | High alumina/HA | Zirconia-alumina/ZA | Zirconia/HZ |
| 3 | Specification temp | (℃) | 1150 | 1260 | 1260 | 1360 | 1360 | 1450 |
| 4 | Working temperature | (℃) | 1000 | 1050 | 1100 | 1150 | 1200 | 1350 |
| 5 | Color | / | White | Pure White | Pure White | Pure White | Pure White | Pure White |
| 6 | Density | (kg/m3) | 260/280/300±15 | 260/280/300±15 | 260/280/300±15 | 260/280/300±15 | 260/280/300±15 | 260/280/300±15 |
| 7 | Permanent shrinkage Rate of liner (24h, density 128kg/m₃) | (%) | -4 | -3 | -3 | -3 | -3 | -3 |
| (1000℃） | (1100℃） | (1000℃) | (1250℃) | (1250℃） | (1350℃） | |||
| 8 | Thermal conductivity of each heat surface(density 280kg/m₃) | （W/m.k) | 0.09(400℃） | 0.09(400℃） | 0.09(400℃) | 0.12(600℃) | 0.132(600℃） | 0.16(800℃） |
| 0.13（800℃） | 0.16（800℃） | 0.13（800℃) 0.18(1000℃) |
0.18（1000℃) | 0.22（1000℃） | 0.22（1000℃） | |||
| 9 | Compression strength (density 280kg/m₃) | (Mpa) | ≧0.5 | ≧0.5 | ≧0.5 | ≧0.5 | ≧0.5 | ≧0.06 |
| 10 | Al₂O₃ | (%) | ≧40 | ≧42 | ≧47 | ≧45 | ≧45 | ≧40 |
| 11 | Al₂O₃+SiO₂ | (%) | 96 | 97 | 99 | 99 | – | – |
| 12 | Al₂O₃+SiO₂+ZrO₂ | (%) | – | – | – | – | 99 | 99 |
| 13 | ZrO₂ | (%) | – | – | – | – | 5–7 | 15–17 |
| 14 | Fe₂O₃ | (%) | ＜1.2 | ＜1.0 | ＜0.2 | ＜0.2 | ＜0.2 | ＜0.2 |
| 15 | Na₂O+K₂O | (%) | ＜0.5 | ＜0.5 | ＜0.2 | ＜0.2 | ＜0.2 | ＜0.2 |
| 16 | Thickness | (mm) | 25/50 | |||||
| 17 | Width | (mm) | 500/600 | |||||
| 18 | Length | (mm) | 900/1200 | |||||
