Custom Ceramic Fiber Rope Insulation
Product Description:
Temp Grade: 1140°C,1260°C
Density: 500kg/m₃, 550kg/m₃
Round Rope: 6-80mm(Dia)
Square Rope: 6×6-80x80mm
Customized specification is acceptable.
Share
Ceramic Fiber Rope Insulation
Mindelun supplies ceramic fiber rope insulation for high-temperature sealing and thermal insulation in industrial equipment. Available in twisted, round braided, and square braided constructions, ceramic fiber rope provides flexible insulation for furnace doors, kiln covers, access panels, and selected expansion joint applications.
Different rope structures and reinforcement options are available according to product specifications and operating conditions. Mindelun supports customized dimensions and packaging for industrial insulation distributors, contractors, equipment manufacturers, and bulk buyers.
Key Features of Ceramic Fiber Rope
- High-Temperature Insulation: Helps reduce heat transfer around furnace openings, joints, and other hot surfaces.
- Flexible Construction: Adapts to different sealing profiles and installation spaces.
- Multiple Rope Structures: Twisted, round braided, and square braided options for different applications.
- Reinforcement Options: Glass fiber filament or metal wire reinforcement may be available, depending on the product grade.
- Thermal Shock Resistance: Suitable for selected applications involving temperature fluctuations, subject to operating conditions.
- Customized Supply: Rope dimensions, lengths, and packaging can be specified according to project and procurement requirements.
Types of Ceramic Fiber Rope
Twisted Ceramic Fiber Rope
Twisted ceramic fiber rope is made by twisting ceramic fiber yarns together. Its flexible construction makes it suitable for insulation filling and general sealing applications where a twisted profile is appropriate.
Round Braided Ceramic Fiber Rope
Round braided ceramic fiber rope features a circular cross-section and braided construction. It is commonly selected for furnace doors, access panels, and other sealing locations requiring a round profile.
Square Braided Ceramic Fiber Rope
Square braided ceramic fiber rope has a square cross-section designed for compatible grooves and sealing spaces. It can be used in selected furnace, kiln, and industrial heating equipment applications.
Technical Specifications
| 1 | Item | Unit | Test Result | Test Result |
| 2 | Al₂O₃ | / | ≧45 | ≧45 |
| 3 | Al₂O₃+SiO₂ | (℃) | ≧96 | ≧96 |
| 4 | Using temp | (℃) | 650 | 1000 |
| 5 | Basic materials | / | CF fiber+Glass fiber | CF fiber+Stainless steel fiber |
| 6 | Fiber diameter | (mm) | 2–5 | 2–5 |
| 7 | Hot shrinkage rate | 1150C*9hrs (%) | ≤4 | ≤4 |
| Thermal conductivity | 800C(w/m.k) | ≤0.2 | ≤0.2 | |
| 8 | LOI | (%) | 18±3 | 18±3 |
| 9 | Shot content | (%) | 0 | 0 |
| 10 | Bulk density | (kg/m3) | 350-600 | 350-600 |
Important: Classification temperature and continuous service temperature are not interchangeable. Actual service limits depend on the fiber grade, reinforcement, atmosphere, and operating conditions. Confirm the applicable technical data sheet before selecting a product.
Applications of Ceramic Fiber Rope Insulation
Ceramic fiber rope is used in selected high-temperature industrial sealing and insulation applications, including:
- Industrial furnace and kiln door seals
- Boiler doors and inspection openings
- Furnace covers and access panels
- High-temperature joints and selected expansion joint systems
- Industrial ovens and heat-treatment equipment
- Selected pipe sealing, gasket, and packing applications where the material is suitable
For applications involving direct flame, high gas velocity, mechanical abrasion, or pressure sealing, the product grade and construction should be evaluated before selection.
Custom Ceramic Fiber Rope Supply
Mindelun provides ceramic fiber insulation products for industrial maintenance, equipment manufacturing, project procurement, and wholesale distribution. We can review your requirements to help identify a suitable ceramic fiber rope specification.
To request a quotation, please provide:
- Rope type: twisted, round braided, or square braided
- Required diameter or cross-sectional dimensions
- Length per roll and estimated order quantity
- Operating temperature and application details
- Reinforcement preference, if applicable
- Packaging and delivery requirements
Contact Mindelun for product specifications, customized supply options, and a quotation for ceramic fiber rope insulation.
Related Ceramic Fiber Insulation Products

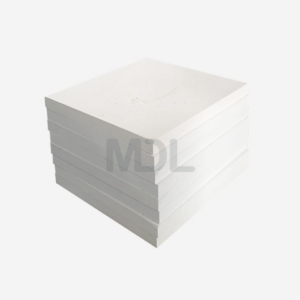

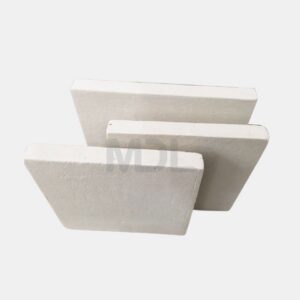

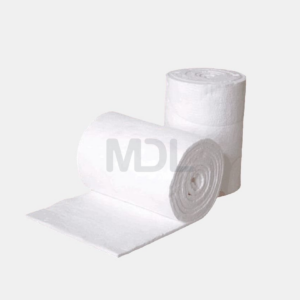

Explore our Ceramic Fiber Blanket, Ceramic Fiber Board, and Ceramic Fiber Module for other industrial thermal insulation requirements.
For furnace lining projects, visit our Industrial Furnace Insulation page or contact Mindelun to discuss your application.
