Ceramic Fiber Cloth Supplier for High-Temperature Applications
Product Description:
Temp Grade: 1000°C,1260°C
Density: 500kg/m₃, 550kg/m₃
Specification:
• 2 x1000 x 30000mm
• 3×1000 x 30000mm
• 4×1000 x 30000mm
• 5×1000 x 20000mm
Customized specification is acceptable.
Share
Ceramic Fiber Cloth Supplier for High-Temperature Applications
Mindelun supplies ceramic fiber cloth for industrial thermal insulation, heat shielding, and high-temperature sealing applications. Manufactured from woven ceramic fiber yarn, this flexible refractory textile is suitable for fabricating insulation covers, furnace curtains, pipe wraps, and selected sealing components.
Depending on the product grade, ceramic fiber cloth may be reinforced with glass fiber filament or metal wire to improve handling strength and fabric integrity. Mindelun supports industrial distributors, insulation contractors, and equipment manufacturers with product selection and customized supply options.
Key Features of Ceramic Fiber Cloth
- High-temperature protection: Suitable for selected industrial heat insulation and shielding applications.
- Flexible woven construction: Adapts to curved surfaces and different equipment configurations.
- Reinforcement options: Available reinforcement depends on the selected product grade.
- Easy fabrication: Can be cut and fabricated into suitable covers, curtains, and insulation components.
- Versatile industrial use: Suitable for selected pipe wrapping, sealing, and expansion joint applications.
- Custom specifications: Thickness, width, roll length, and packaging can be confirmed according to requirements.
Ceramic Fiber Cloth Specifications
| Item | Unit | Test Result | Test Result |
| Color | / | White | White |
| Specification temp | (℃) | 1260(Stainless steel fiber) | 1000(Glass fiber) |
| Using Temp | (℃) | 1000 | 650 |
| Fiber diameter | (um) | 44200 | 44200 |
| Shot content | (%) | ≤8.5 | ≤8.5 |
| Thermal conductivity of average temperature | （W/m.k) | 0.13-0.19(538℃,8pcf） | 0.13-0.19(538℃,8pcf） |
| (%) | 0.075-0.085(1232℃*24h） | 0.075-0.085(1232℃*24h） | |
| Al2O₃ | (%) | ≧45-46 | ≧45-46 |
| SiO₂ | (%) | 51-52 | 51-52 |
| Fe₂O₃ | (%) | ＜0.43 | ＜0.43 |
| Na₂O+K₂O | (%) | 0.7-1.2 | 0.7-1.2 |
| Thickness | (mm) | 2/3/4/5 | |
| Width | (mm) | 1000 | |
| Length | (mm) | 20000/30000 | |
Please confirm actual dimensions, reinforcement material, chemical composition, and temperature ratings against the technical data sheet for the selected product.
Types of Ceramic Fiber Cloth
Glass Fiber Reinforced Ceramic Fiber Cloth
Glass fiber reinforced ceramic fiber cloth combines woven ceramic fiber yarn with glass fiber reinforcement. It can be considered for suitable insulation covers, flexible wraps, and heat protection applications. The glass fiber reinforcement has its own temperature limitations, which must be considered during product selection.
Wire Reinforced Ceramic Fiber Cloth
Wire reinforced ceramic fiber cloth incorporates metal wire into the fabric structure to improve mechanical integrity in suitable service conditions. Depending on its construction and metal type, it may be used for furnace curtains, expansion joint fabrics, and industrial insulation assemblies.
The reinforcement material should be selected according to operating temperature, mechanical stress, and the intended application.
Applications of Ceramic Fiber Cloth
Pipe and Exhaust Wrapping
Ceramic fiber cloth can be used in selected pipe and exhaust insulation assemblies to provide a flexible textile layer. The complete insulation system should be designed for the required temperature and environmental conditions.
Furnace Curtains and Heat Shields
Suitable grades can be fabricated into furnace curtains and heat shields for industrial thermal environments. Product selection should account for heat exposure, mechanical stress, and the required protection level.
High-Temperature Gaskets and Sealing
Ceramic fiber cloth can be incorporated into selected gasket and sealing assemblies where flexible refractory textile materials are required. The final design should consider compression, temperature, and chemical exposure.
Expansion Joints and Removable Insulation Covers
Depending on its construction, ceramic fiber cloth may be used in suitable expansion joint fabrics and removable insulation covers for industrial equipment. Reinforcement and fabric construction should match the movement and service requirements.
For related insulation materials, explore our Industrial Furnace Insulation solutions and Ceramic Fiber Blanket products.
How to Select the Right Ceramic Fiber Cloth
When sourcing ceramic fiber cloth for industrial insulation, consider these factors:
- Operating temperature: Specify continuous operating conditions and any intermittent heat exposure.
- Reinforcement: Select the appropriate fabric construction based on strength requirements and temperature limits.
- Dimensions: Confirm required thickness, width, and roll length.
- Application: Identify whether the cloth is intended for wrapping, curtains, sealing, or expansion joints.
- Service environment: Consider abrasion, movement, chemical exposure, and direct flame or hot-particle contact where relevant.
Ceramic Fiber Cloth Supplier – Mindelun
Mindelun supplies thermal insulation materials to industrial distributors, contractors, and equipment manufacturers. Our product portfolio includes ceramic fiber insulation, calcium silicate products, and other industrial thermal insulation materials.
Contact Mindelun to confirm available ceramic fiber cloth grades, reinforcement options, specifications, and packaging. For a quotation, please provide your required dimensions, operating temperature, application, reinforcement preference, and order quantity.
Frequently Asked Questions
What is ceramic fiber cloth used for?
Ceramic fiber cloth is used in suitable industrial insulation and heat protection applications, including pipe wrapping, furnace curtains, removable insulation covers, expansion joints, and selected sealing assemblies.
What is the difference between glass fiber reinforced and wire reinforced ceramic fiber cloth?
Glass fiber and metal wire reinforcement offer different mechanical characteristics and temperature limitations. The suitable option depends on the fabric construction and actual operating conditions.
What temperature can ceramic fiber cloth withstand?
Temperature capability depends on the ceramic fiber grade, reinforcement material, and service conditions. The classification temperature of the base fiber should not be treated automatically as the continuous operating temperature of the complete fabric. Check the product technical data sheet before selection.
Can ceramic fiber cloth be supplied in custom sizes?
Available options for thickness, width, roll length, and reinforcement depend on the product range. Contact Mindelun with your required specifications to confirm availability.
What information is needed for a quotation?
Please provide the application, operating temperature, required thickness and width, roll length, reinforcement preference, and order quantity. This helps us confirm product suitability and prepare a quotation.
Professional Insulation Materials Manufacturer in China
Mindelun supplies a comprehensive range of ceramic fiber, mineral wool, calcium silicate, silica fiber and advanced insulation materials for industrial applications. From standard products to customized insulation solutions, we help customers improve thermal efficiency, equipment protection and operating performance.
Send Us An Inquiry
Related products
-
Ceramic fiber insulation

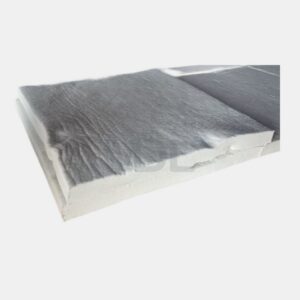

Sliced Ceramic Fiber Blanket Supplier | Pre-Cut Ceramic Fiber Insulation
