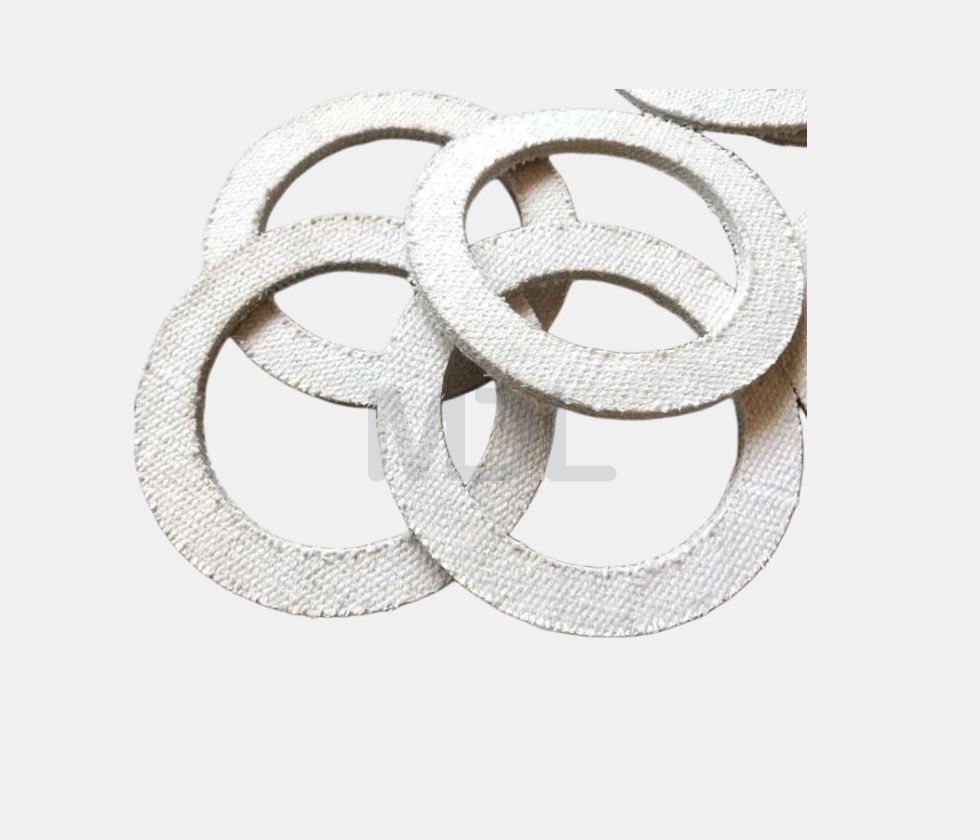

Ceramic Fiber Cloth Gasket for Furnace and Thermal Equipment
Product Description:
Temp Grade: 1000°C,1260°C
Density: 500kg/m₃, 550kg/m₃
Specification:
• 1x 30000mm
• 2x 30000mm
• 3x 30000mm
• 4x 30000mm
• 5x 20000mm
• 6x 20000mm
• 7x 20000mm
• 8x 20000mm
• 9x 20000mm
• 10x 20000mm
Thickness from 1mm-10mm, diameter and shape, length all can be Customized.
Share
Mindelun manufactures ceramic fiber cloth gaskets for high-temperature sealing, heat protection, and thermal insulation applications. Produced from woven ceramic fiber cloth, the gasket can be supplied with fiberglass or stainless steel reinforcement to provide additional strength and dimensional stability.
With custom cutting and OEM production capabilities, Mindelun supplies ceramic fiber cloth gasket solutions for furnace doors, kiln equipment, ducts, boilers, burners, expansion joints, and other industrial thermal systems.
What Is a Ceramic Fiber Cloth Gasket?
A ceramic fiber cloth gasket is a flexible sealing component made from woven ceramic fiber textile. Unlike rigid ceramic fiber boards, the woven structure allows the gasket to adapt to curved, uneven, or movable sealing surfaces.
For applications requiring greater mechanical strength, the ceramic fiber cloth can be reinforced with fiberglass or stainless steel wire. The appropriate construction can be selected according to operating temperature, installation conditions, and mechanical requirements.
Benefits of Ceramic Fiber Cloth Gaskets
Ceramic fiber cloth gaskets provide a combination of thermal insulation and flexible sealing performance.
Key benefits include:
- High-temperature insulation capability
- Low thermal conductivity
- Flexible woven construction
- Good resistance to thermal shock
- Easy handling and installation
- Fiberglass or stainless steel reinforcement
- Custom cutting and forming
- Suitable for irregular sealing surfaces
- OEM and customized production
The actual service temperature should be evaluated according to fiber grade, reinforcement material, operating atmosphere, compression, and installation conditions.
Reinforced Ceramic Fiber Cloth Gasket
Mindelun offers different reinforcement options for reinforced ceramic fiber gaskets.
Fiberglass Reinforced
Fiberglass reinforcement provides additional tensile strength and helps maintain the structure of the cloth during handling and installation. It is suitable for general high-temperature sealing and insulation applications.
Stainless Steel Reinforced
Stainless steel wire reinforcement provides additional mechanical support for applications requiring greater handling strength or structural stability.
The reinforcement type should be selected according to temperature, mechanical stress, gasket construction, and operating environment.
Applications
Ceramic fiber cloth gaskets are commonly used in industrial thermal equipment where flexible sealing and heat insulation are required.
Typical applications include:
- Furnace door sealing
- Kiln door and kiln car sealing
- Furnace inspection covers
- Boiler access doors
- Burner assemblies
- Hot-air duct connections
- Thermal expansion joints
- Heat treatment equipment
- Steel and aluminum processing equipment
- Cement and ceramic production equipment
- Glass manufacturing equipment
- Petrochemical heating systems
For complete furnace lining and insulation systems, ceramic fiber cloth gaskets can be combined with ceramic fiber blanket, ceramic fiber board, and ceramic fiber module.
Ceramic Fiber Cloth Gasket Specifications
| Item | Unit | Test Result | Test Result |
| Color | / | White | White |
| Specification temp | (℃) | 1260(Stainless steel fiber) | 1000(Glass fiber) |
| Using Temp | (℃) | 1000 | 650 |
| Fiber diameter | (um) | 44200 | 44200 |
| Shot content | (%) | ≤8.5 | ≤8.5 |
| Thermal conductivity of average temperature | （W/m.k) | 0.13-0.19(538℃,8pcf） | 0.13-0.19(538℃,8pcf） |
| (%) | 0.075-0.085(1232℃*24h） | 0.075-0.085(1232℃*24h） | |
| Al2O₃ | (%) | ≧45-46 | ≧45-46 |
| SiO₂ | (%) | 51-52 | 51-52 |
| Fe₂O₃ | (%) | ＜0.43 | ＜0.43 |
| Na₂O+K₂O | (%) | 0.7-1.2 | 0.7-1.2 |
| Thickness | (mm) | 1/2/3/4/5/6/7/8/9/10 | |
| Width | (mm) | Customized | |
| Length | (mm) | Customized | |
Dimensions and construction can be manufactured according to customer drawings, samples, or specifications.
Custom Ceramic Fiber Cloth Gasket Manufacturer
Mindelun provides custom ceramic fiber cloth gaskets for distributors, industrial manufacturers, insulation contractors, maintenance companies, and engineering projects.
Custom manufacturing can include:
- Custom thickness
- Custom width and length
- Inner and outer diameter
- Bolt holes
- Ring and frame profiles
- Special-shaped gaskets
- Fiberglass reinforcement
- Stainless steel reinforcement
- Customized packaging
- OEM labeling
Customers can send a drawing, sample, or basic equipment information. Mindelun can evaluate the required material construction and recommend a suitable gasket solution.
For more complicated insulation components, customers can also consider our [ceramic fiber special shapes] manufactured according to drawings.
Ceramic Fiber Cloth Gasket and Ceramic Fiber Paper Gasket
Although both products are used for high-temperature sealing, they are designed for different requirements.
Ceramic Fiber Cloth Gasket
- Woven construction
- Flexible and conformable
- Reinforcement options available
- Suitable for doors, covers, ducts, and expansion joints
- Suitable where flexibility and handling strength are important
Ceramic Fiber Paper Gasket
- Thin sheet construction
- Smooth and lightweight
- Easy to die-cut
- Suitable for thin sealing and thermal barrier applications
Mindelun also supplies [ceramic fiber paper] for customers who need sheet material for local gasket fabrication.
Selecting the Right Ceramic Fiber Cloth Gasket
Before ordering a high temperature ceramic fiber cloth gasket, customers should provide:
- Working temperature
- Gasket dimensions
- Required thickness
- Sealing location
- Compression conditions
- Mechanical load
- Required flexibility
- Reinforcement requirements
- Operating atmosphere
The maximum rated temperature of the material does not automatically represent its continuous service temperature in every application. Actual performance depends on the complete operating environment and gasket design.
Related Ceramic Fiber Insulation Products
Mindelun provides complementary ceramic fiber insulation materials for industrial thermal systems:
- Ceramic Fiber Blanket – flexible insulation for furnaces, kilns, pipes, and equipment
- Ceramic Fiber Board – rigid thermal insulation for furnace walls and equipment
- Ceramic Fiber Paper – thin insulation and sealing material
- Ceramic Fiber Module– prefabricated furnace lining insulation
- Ceramic Fiber Special Shapes – customized insulation components
These products can be sourced together as part of a one-stop ceramic fiber insulation procurement program.
Why Buy Ceramic Fiber Cloth Gaskets from Mindelun?
Mindelun is a China-based ceramic fiber cloth gasket manufacturer and supplier serving industrial distributors, contractors, equipment manufacturers, and project customers.
We provide:
- Factory-direct production
- Custom gasket manufacturing
- Fiberglass and stainless steel reinforcement
- Drawing and sample-based production
- OEM and ODM services
- Flexible packaging options
- Related ceramic fiber insulation products
- One-stop sourcing for industrial insulation
Our manufacturing and customization capabilities help customers source both finished gaskets and related ceramic fiber insulation products from one supplier.
Request a Custom Ceramic Fiber Cloth Gasket
Provide your drawing, gasket dimensions, working temperature, reinforcement requirements, and application information.
Mindelun can recommend a suitable ceramic fiber cloth gasket construction and provide customized production for your industrial application.
Contact Mindelun for custom ceramic fiber cloth gaskets, reinforced high-temperature gaskets, and industrial thermal insulation materials.
