Ceramic Fiber Modules for Industrial Furnaces
Product Description:
Temp Grade: 1050°C,1260°C,1400°C, 1430°C
Density: 200kg/m₃, 220kg/m₃, 260kg/m₃
Specification:
• 150x300x300mm
• 200x300x300mm
• 250x300x300mm
• 600x300x300mm
• 300×300 x 300mm
Customized specification is acceptable.
Share
With low thermal conductivity and low heat storage, ceramic fiber insulation modules help reduce heat loss and improve thermal response in suitable industrial applications. Different fiber grades, module dimensions, densities, and anchoring configurations can be selected according to operating conditions and furnace design.
Key Features of Ceramic Fiber Modules
- High-Temperature Insulation: Fiber grades are selected according to the required operating conditions.
- Low Thermal Conductivity: Helps reduce heat transfer through furnace walls and roofs.
- Low Heat Storage: Supports faster heating and cooling cycles in suitable applications.
- Prefabricated Design: Simplifies handling and installation compared with assembling individual blanket layers on site.
- Flexible Configuration: Module dimensions and installation arrangements can be adapted to the furnace lining design.
- Anchoring Options: Suitable fixing systems can be selected according to equipment structure and service conditions.
Ceramic Fiber Module Types and Construction
Ceramic fiber modules are typically produced by folding or stacking ceramic fiber blanket and compressing it into a compact block. The modules are installed using an appropriate anchoring system to form a continuous insulation lining.
The module configuration, fiber orientation, joint arrangement, and anchoring method should be selected according to furnace geometry, temperature, atmosphere, and mechanical conditions.
Technical Specifications
| 1 | Item | Unit | Test Result/COM | Test Result/ST | Test Result/HP | Test Result/HA | Test Result/ZA | Test Result/HZ |
| 2 | Grade | / | 1000 Fold / stack/ veneer block | 1260 Fold / stack/ veneer block | 1260 Fold / stack/ veneer block | 1360 Fold / stack/ veneer block | 1400 Fold / stack/ veneer block | 1450 Fold / stack/ veneer block |
| 3 | Specification temp | (℃) | 1050 | 1260 | 1260 | 1360 | 1400 | 1450 |
| 4 | Working temperature | (℃) | 800 | 1050 | 1100 | 1150 | 1200 | 1350 |
| 5 | Color | / | White | Pure White | Pure White | Pure White | Pure White | Pure White |
| 6 | Density | (kg/m3) | 220/200/128/96±15 | 220/200/128/96±15 | 220/200/128/96±15 | 220/200/128/96±15 | 220/200/128/96±15 | 220/200/128/96±15 |
| 7 | Permanent shrinkage Rate of liner (24h, density 128kg/m₃) | (%) | -4 | -3 | -3 | -3 | -3 | -3 |
| (1000℃） | (1100℃） | (1000℃) | (1250℃) | (1250℃） | (1350℃） | |||
| 8 | Thermal conductivity of each heat surface(density 128kg/m₃) | （W/m.k) | 0.09(400℃） | 0.09(400℃） | 0.09(400℃) | 0.12(600℃) | 0.132(600℃） | 0.16(800℃） |
| 0.16（800℃） | 0.16（800℃） | 0.16（800℃) 0.20(1000℃) |
0.16（800℃) 0.20(1000℃) |
0.22（1000℃） | 0.22（1000℃） | |||
| 9 | Compression strength (density 128kg/m₃) | (Mpa) | ≧0.04 | ≧0.04 | ≧0.04 | ≧0.06 | ≧0.06 | ≧0.06 |
| 10 | Al₂O₃ | (%) | ≧40 | ≧42 | ≧47 | ≧45 | ≧45 | ≧40 |
| 11 | Al₂O₃+SiO₂ | (%) | 96 | 97 | 99 | 99 | – | – |
| 12 | Al₂O₃+SiO₂+ZrO₂ | (%) | – | – | – | – | 99 | 99 |
| 13 | ZrO₂ | (%) | – | – | – | – | 5–7 | 15–17 |
| 14 | Fe₂O₃ | (%) | ＜1.2 | ＜1.0 | ＜0.2 | ＜0.2 | ＜0.2 | ＜0.2 |
| 15 | Na₂O+K₂O | (%) | ＜0.5 | ＜0.5 | ＜0.2 | ＜0.2 | ＜0.2 | ＜0.2 |
| 16 | Thickness | (mm) | 150/200/250/300/600 | |||||
| 17 | Width | (mm) | 300 | |||||
| 18 | Length | (mm) | 300/600 | |||||
Technical note: Classification temperature should not be treated as the recommended continuous service temperature. Actual performance depends on fiber grade, furnace atmosphere, temperature profile, installation quality, and exposure to flame, gas flow, or mechanical wear. Confirm the applicable technical data before selection.
Applications of Ceramic Fiber Insulation Modules
Ceramic fiber modules are used in selected high-temperature insulation systems, including:
- Steel reheating and heat-treatment furnaces
- Petrochemical process heaters
- Ceramic kilns and tunnel kilns
- Industrial boilers and waste incinerators
- Furnace walls, roofs, and other suitable lining areas
- Industrial ovens and thermal processing equipment
For applications involving direct flame, high gas velocity, chemical attack, or severe abrasion, the material grade and lining design should be evaluated for the actual operating conditions.
Ceramic Fiber Module Supplier for Industrial Projects
Mindelun supports insulation distributors, furnace manufacturers, industrial contractors, and project buyers with ceramic fiber insulation materials for high-temperature applications.
To request a quotation for custom ceramic fiber modules, please provide the required fiber grade, operating temperature, module dimensions, density, lining thickness, anchoring requirements, and estimated quantity. Furnace drawings or lining layouts can help clarify the required configuration.
Contact Mindelun for technical information, customized supply options, and bulk quotations.
Related Ceramic Fiber Insulation Products
Explore our Ceramic Fiber Blanket and Ceramic Fiber Board for complementary high-temperature insulation materials.
Learn more about our Industrial Furnace Insulation solutions or contact Mindelun to discuss your project requirements.
Professional Insulation Materials Manufacturer in China
Mindelun supplies a comprehensive range of ceramic fiber, mineral wool, calcium silicate, silica fiber and advanced insulation materials for industrial applications. From standard products to customized insulation solutions, we help customers improve thermal efficiency, equipment protection and operating performance.
Send Us An Inquiry
Related products
-
Ceramic fiber insulation

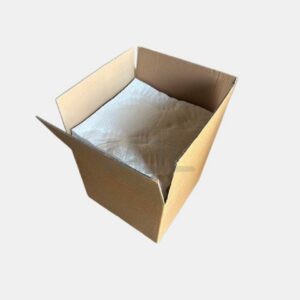

Sliced Ceramic Fiber Blanket Supplier | Pre-Cut Ceramic Fiber Insulation
