Bio soluble ceramic fiber board for high-temperature insulation
Product Description:
Temp Grade: 1100°C, 1260°C,
Density: 250kg/m₃, 280kg/m₃, 300kg/m₃
Specification:
• 12.5 x600/1000 x 1000mm
• 20×600/1000x 1000mm
• 25×600/1000 x 1000mm
• 50×600/1000 x 1000mm
Customized specification is acceptable.
Share

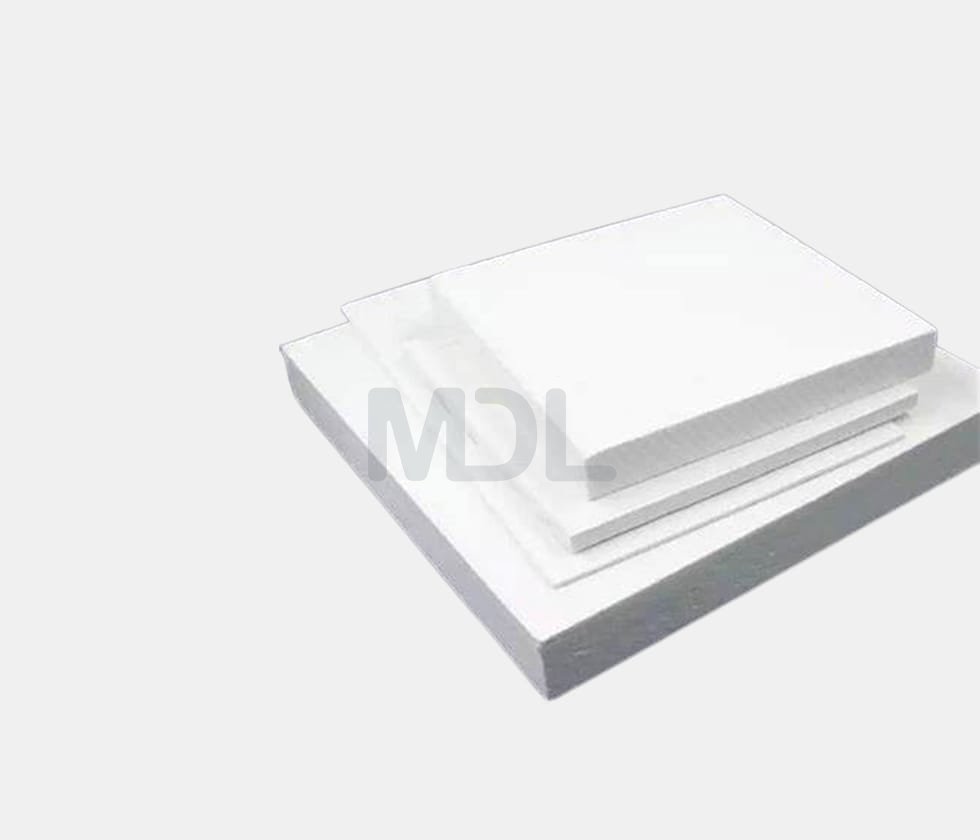

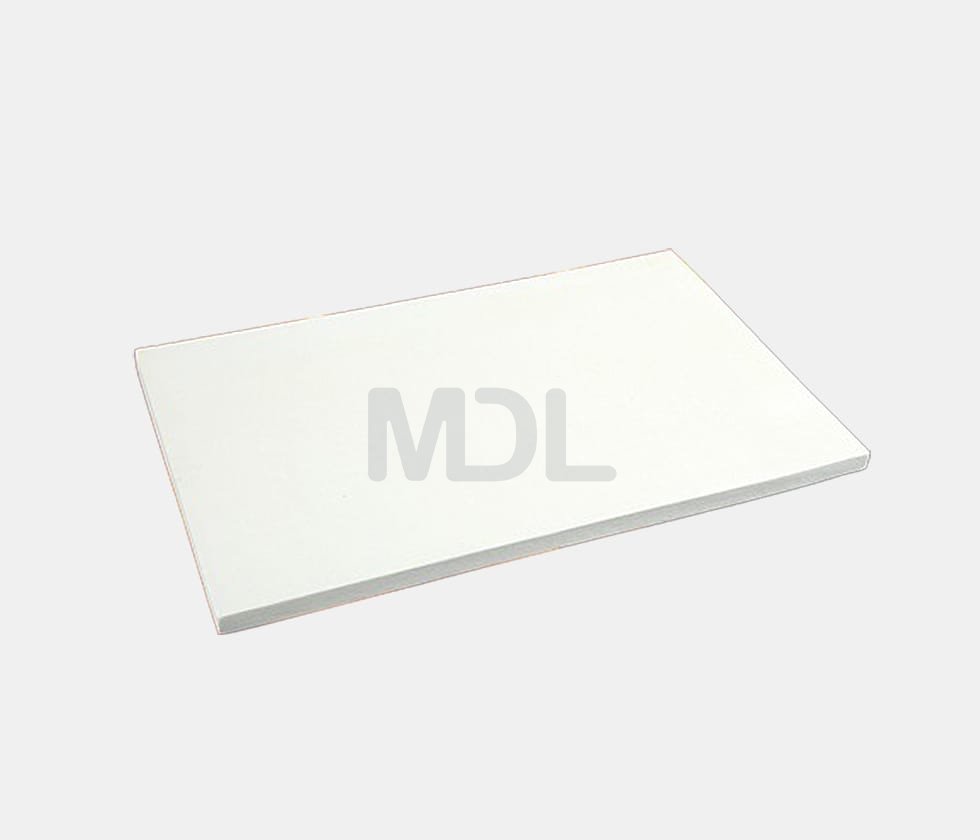

BioSoluble Ceramic Fiber Board
BioSoluble Ceramic Fiber Board is a rigid thermal insulation material made with bio-soluble alkaline earth silicate (AES) fibers and suitable bonding additives. It is designed for selected high-temperature applications requiring thermal insulation, structural rigidity, and dimensional stability.
As an alternative to conventional refractory ceramic fiber board, bio-soluble fiber board uses a fiber formulation designed for lower biopersistence. Its suitability depends on the specific grade, operating temperature, mechanical requirements, and applicable regulatory standards.
Mindelun supplies industrial thermal insulation materials for distributors, equipment manufacturers, contractors, and project buyers seeking application-specific insulation solutions.
Key Features of BioSoluble Ceramic Fiber Board
- Low-bio-persistence fiber: AES fibers are designed to have lower biopersistence than conventional refractory ceramic fibers. Verify product-specific test reports and regulatory documentation.
- Thermal insulation: Helps reduce heat transfer in properly designed industrial insulation systems.
- Rigid board structure: Provides a self-supporting panel format for compatible applications.
- Low heat storage: Supports thermal management in suitable heating and cooling processes.
- Thermal stability: Performance depends on the selected grade and service conditions.
- Custom sizing: Boards may be cut to required dimensions where supported by the product and processing capabilities.
Applications of BioSoluble Ceramic Fiber Board
Industrial Furnace and Kiln Insulation
Suitable grades can be used in selected furnace and kiln insulation systems where rigid insulation panels are required. Temperature rating, thermal shrinkage, and installation design should be evaluated before use.
Explore our industrial furnace insulation solutions for related high-temperature applications.
Heat Treatment Equipment
Bio-soluble fiber boards may be suitable for selected heat treatment equipment, furnace doors, insulation partitions, and thermal barriers, depending on the material specifications and service conditions.
Laboratory and Ceramic Kilns
Certain grades can be considered for laboratory furnaces, ceramic kilns, and other thermal processing equipment that requires rigid insulation panels.
Custom Insulation Components
For equipment manufacturers and insulation contractors, boards can be cut or processed into components according to the material grade and available machining capabilities. Confirm dimensional tolerances and processing requirements before ordering.
Technical Specifications
| 1 | Item | Unit | Test Result | Test Result | Test Result |
| 3 | Specification temp | (℃) | 1200 | 1300 | 1400 |
| 4 | Working temperature | (℃) | 1100 | 1200 | 1300 |
| 5 | Color | / | Pure White | Pure White | Pure White |
| 6 | Density | (kg/m₃) | 250/300 | 250 | 280 |
| 7 | Permanent shrinkage Rate of liner (24h, density 300kg/m₃) | (%) | ≤1.5 | ≤2.5 | ≤2.1 |
| (1450℃） | (1450℃） | (1650℃） | |||
| Thermal conductivity of each heat surface(density 300kg/m₃) | 0.09（400℃） 0.12（600℃） 0.18（800℃） -（1000℃） |
0.08（400℃） 0.17（600℃） 0.17（800℃） -（1000℃） |
0.12（600℃） 0.17（800℃） 0.22（1000℃） |
||
| 9 | Compression strength (density 280kg/m₃) | (Mpa) | ≧0.7 | ≧0.7 | ≧0.7 |
| 10 | Al2O₃ | (%) | 5 | 4 | 2 |
| 11 | SiO₂ | (%) | 73 | 77 | 82 |
| 12 | CaO+MgO | (%) | 22 | 19 | 16 |
| 16 | Thickness | (mm) | 12.5/20/25/50 | ||
| 17 | Width | (mm) | 600/1000 | ||
| 18 | Length | (mm) | 1000 | ||
Specifications vary by product grade. Contact Mindelun to confirm available sizes and technical data.
BioSoluble Ceramic Fiber Board vs. Conventional Ceramic Fiber Board
Both materials are used in high-temperature insulation, but they differ in fiber composition and may have different technical properties.
| Comparison | Bio-soluble Fiber Board | Conventional Ceramic Fiber Board |
|---|---|---|
| Fiber type | AES fiber formulation | Typically alumina-silica refractory ceramic fiber |
| Biopersistence | Designed for lower biopersistence | Depends on fiber composition |
| Thermal performance | Grade-dependent | Grade-dependent |
| Mechanical strength | Depends on density and formulation | Depends on density and formulation |
| Selection priorities | Fiber documentation, temperature, strength | Temperature, shrinkage, conductivity, strength |
Neither material is automatically superior in every application. Buyers should compare product-specific data, required compliance documents, and operating conditions.
For other insulation options, see our ceramic fiber board and ceramic thermal insulation blanket product pages.
How to Choose a Bio Soluble Ceramic Fiber Board Manufacturer
When selecting a bio soluble ceramic fiber board manufacturer or supplier, consider the following factors:
- Fiber composition: Confirm the product uses the specified AES fiber formulation.
- Temperature performance: Check classification temperature, recommended service conditions, and linear shrinkage.
- Mechanical properties: Review density and strength data against the installation requirements.
- Dimensions and processing: Specify thickness, length, width, tolerances, and any cutting requirements.
- Quality documentation: Request a technical data sheet, safety data sheet, and applicable test reports or certifications.
These checks help buyers evaluate product suitability and reduce the risk of selecting an unsuitable grade.
Request a Quote for BioSoluble Ceramic Fiber Board
Looking for a bio soluble ceramic fiber board manufacturer for your industrial insulation project?
Contact Mindelun with your required dimensions, operating temperature, application, quantity, and documentation requirements. Our team can review your specifications and discuss available product options.
Contact Mindelun for technical information and a quotation.
Professional Insulation Materials Manufacturer in China
Mindelun supplies a comprehensive range of ceramic fiber, mineral wool, calcium silicate, silica fiber and advanced insulation materials for industrial applications. From standard products to customized insulation solutions, we help customers improve thermal efficiency, equipment protection and operating performance.
Send Us An Inquiry
Related products
-
Biosoluble fiber insulation

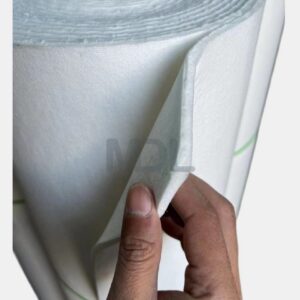

BioSoluble Fiber Paper Manufacturer for Industrial Thermal Insulation
