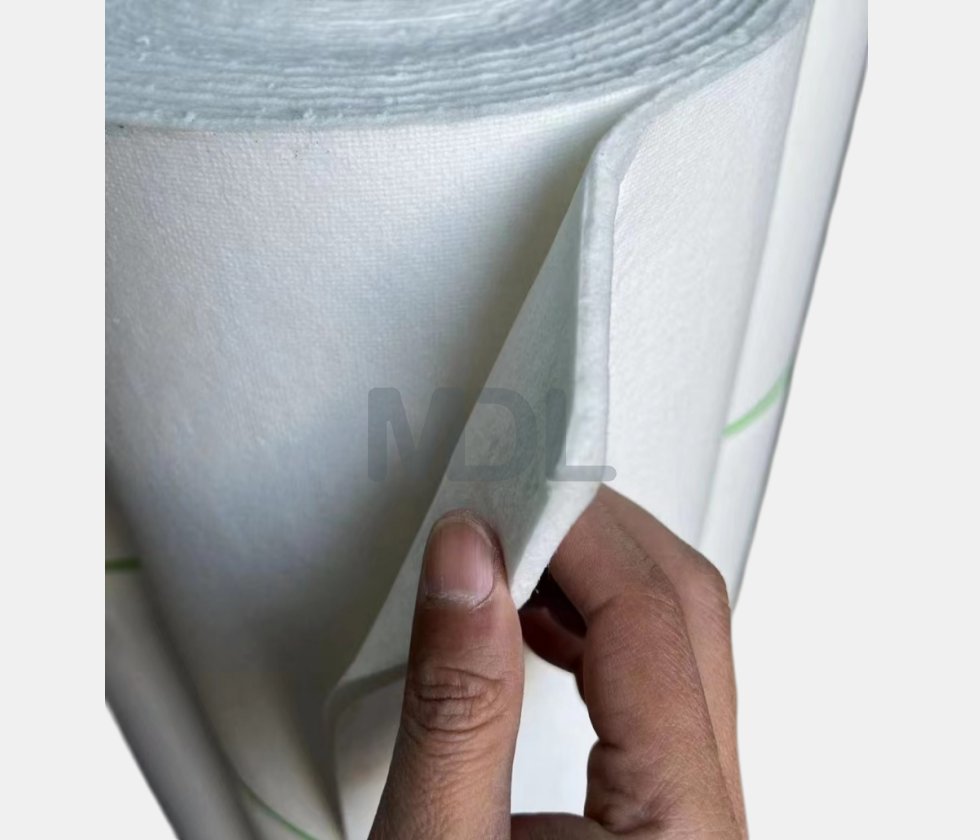

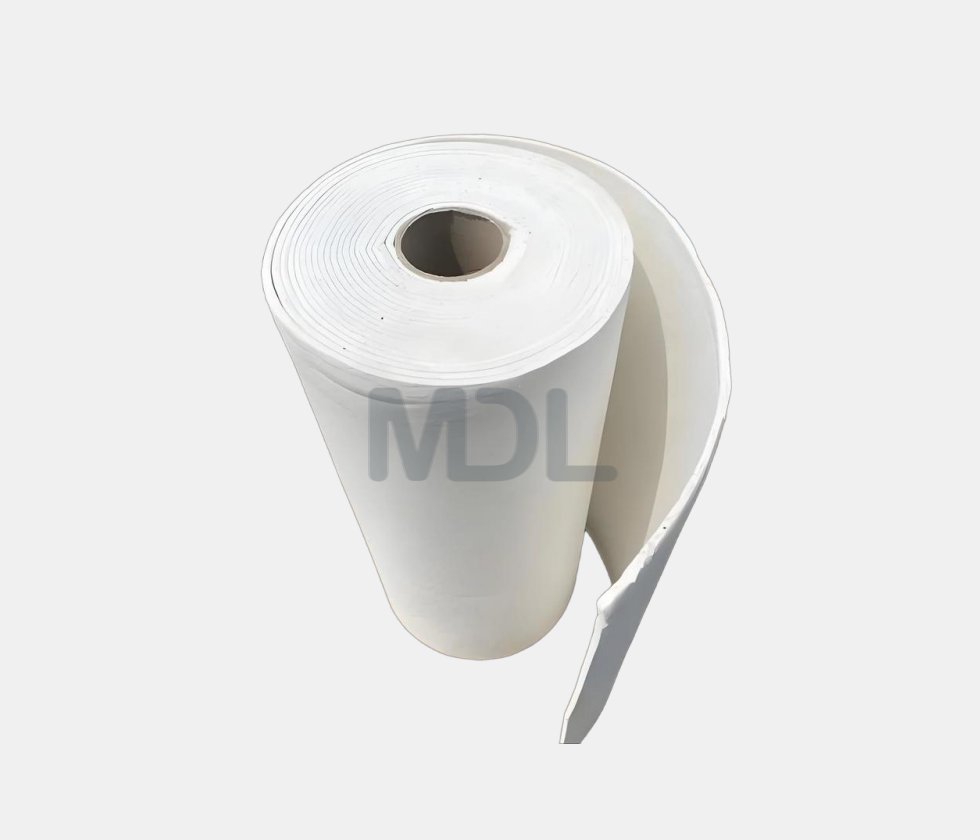

BioSoluble Ceramic Fiber Paper
Product Description:
Temp Grade: 1150°C, 1200°C,
Density: 180kg/m₃, 200kg/m₃, 220kg/m₃
Specification:
• Thickness: 0.5-6mm
Customized specification is acceptable.
Share
product details
• DESCRIPTION
BioSoluble ceramic fiber paper (also known as AES fiber paper) is a lightweight, flexible insulation product manufactured through a wet-forming process. It features uniform thickness, smooth surface, and excellent mechanical strength.
Unlike conventional refractory ceramic fibers, Bio-Soluble ceramic fiber dissolve more easily in body fluids, significantly reducing long-term health risks. Mindelun specializes in Bio-soluble ceramic fiber insulation materials. Beyond bio-soluble-grade products, we supply ceramic fiber insulation in various temperature, as well as calcium silicate and rock wool products, providing cost-effective solutions for thermal insulation, energy efficiency, and fire protection.
• PROPERTIES
Ø Eco-Friendly & Safe
Ø Excellent Thermal Insulation
Ø Low thermal conductivity
Ø High energy efficiency
Ø Lightweight and Flexible
Ø Good Mechanical Strength
Ø Electrical Insulation Properties
• APPLICATION
Ø High-Temperature Gaskets and Seals. Used as sealing material in furnaces, kilns, and boilers.
Ø Backup Insulation. Acts as a secondary insulation layer to improve thermal efficiency.
Ø Electrical Insulation. Widely used in heating elements, resistance furnaces, and electrical devices.
Ø Automotive Industry. Applied in exhaust systems and heat shields.
Ø Glass and Metallurgy. Used as parting layers, thermal barriers, and protective linings.
• SPECIFICATION
| 1 | Item | Unit | Test Result | Test Result |
| 3 | Specification temp | (℃) | 1200 | 1300 |
| 4 | Working temperature | (℃) | 1150 | 1200 |
| 5 | Color | / | Pure White | Pure White |
| 6 | Density | (kg/m₃) | 180/200/220 | 200/220 |
| 7 | Thermal conductivity of each heat surface(density 300kg/m₃) | (W/m.k) | 0.09（400℃） 0.13（600℃） 0.16（800℃） 0.18（1000℃） |
0.08（400℃） 0.13（600℃） 0.16（800℃） 0.18（1000℃） |
| 8 | Tensile strength (density 200kg/m₃) | (Mpa) | ≧0.3 | ≧0.3 |
| 9 | Al2O₃ | (%) | ≤1 | |
| 10 | SiO₂ | (%) | 62-70 | |
| 11 | CaO+MgO | (%) | 25-35 | |
| 12 | Thickness | (mm) | 0.5-6 | |
| 13 | Width | (mm) | 610/1220 | |
| 14 | Length | (mm) | 10000–120000 | |
