Flexible AES Insulation Blanket for Industrial Applications
Product Description:
Temp Grade: 1100°C, 1260°C,
Density: 96kg/m₃, 128kg/m₃, 160kg/m₃
Specification:
• 12.5 x610/1220 x 14400mm
• 20 x610/1220 x9000mm
• 25 x610/1220 x7200mm
• 50×610/1220x3600mm
Customized specification is acceptable.
Share
Flexible AES Insulation Blanket for Industrial Applications
BioSoluble Ceramic Fiber Blanket is a flexible thermal insulation material manufactured from alkaline earth silicate (AES) fibers. Designed for selected high-temperature applications, it helps reduce heat transfer while conforming to curved surfaces and equipment with complex shapes.
The blanket is also known as an AES fiber blanket or bio-soluble insulation blanket. Its fiber composition differs from conventional refractory ceramic fiber (RCF), making it an option for applications that specify low-biopersistence fiber materials.
Mindelun supplies industrial insulation materials to distributors, equipment manufacturers, refractory contractors, and project buyers seeking reliable product specifications and supply support.
Advantages of BioSoluble Ceramic Fiber Blanket
- Flexible Installation: Conforms to suitable pipes, ducts, furnace surfaces, and irregular equipment profiles.
- Thermal Insulation: Helps limit heat loss in properly designed insulation systems.
- Low Heat Storage: Supports thermal cycling in compatible industrial processes.
- Lightweight Construction: Offers a flexible blanket format for applications where rigid insulation boards may be less suitable.
- Needled Fiber Structure: Provides cohesion for handling and installation.
- AES Fiber Composition: Suitable for projects specifying bio-soluble, low-biopersistence fiber products, subject to applicable documentation.
Actual thermal performance and mechanical properties depend on the selected grade, density, thickness, and installation conditions.
Typical Applications
Furnace and Kiln Linings
Used in selected industrial furnace and kiln insulation systems, depending on operating temperature and lining design.
Pipework and Thermal Equipment
The flexible form is suitable for wrapping compatible pipework, ducts, and equipment surfaces where the selected grade meets service requirements.
Expansion Joints and Thermal Seals
Selected grades may be considered for insulation systems requiring flexibility and accommodation of movement.
Heat Treatment and Industrial Processing
Potential applications include heat treatment equipment and other industrial thermal systems requiring flexible insulation.
For more application information, visit our Industrial Furnace Insulation page.
BioSoluble Ceramic Fiber Blanket Technical Specifications
| 1 | Item | Unit | Test Result | Test Result |
| 3 | Specification temp | (℃) | 1200 | 1300 |
| 4 | Working temperature | (℃) | 1150 | 1260 |
| 5 | Color | / | Pure White | Pure White |
| 6 | Density | (kg/m₃) | 96/128 | 100/128 |
| 8 | Thermal conductivity of each heat surface(density 128kg/m₃) | （W/m.k) | 0.08(200℃) 0.13(600℃) |
0.08(200℃) 0.13(600℃) |
| 0.16(800℃) 0.18(1000℃) |
0.16(800℃) 0.18（1000℃) |
|||
| 11 | SiO₂ | (%) | 62-70 | |
| 13 | CaO+MgO | (%) | 25-35 | |
| 14 | Fe₂O₃ | (%) | ≤0.2 | |
| 15 | Al2O3 | (%) | ≤1 | |
| 16 | Thickness | (mm) | 12.5/20/25/50 | |
| 17 | Width | (mm) | 610/1220 | |
| 18 | Length | (mm) | 3600/7200/9000/14400 | |
Specifications are grade-dependent. Classification temperature should not be treated as the recommended continuous-use temperature. Confirm service conditions with the applicable technical data sheet.
How to Select the Right AES Insulation Blanket
Selecting an appropriate bio-soluble fiber blanket requires more than matching a temperature rating. Industrial buyers should consider:
- Service Conditions: Identify normal operating temperature, peak temperature, duration, and atmosphere.
- Required Thickness: Consider the insulation design, available installation space, and target thermal performance.
- Density and Mechanical Properties: Confirm that the selected grade suits handling and installation requirements.
- Dimensional Requirements: Specify roll width, length, thickness, and quantity.
- Technical Documentation: Review product data, safety information, and applicable test reports before purchase.
These details help suppliers assess suitability and prepare a quotation based on actual project requirements.
BioSoluble Fiber Blanket vs. Conventional Ceramic Fiber Blanket
Both products are flexible insulation materials, but their fiber compositions and service requirements can differ.
| Factor | BioSoluble Fiber Blanket | Conventional Ceramic Fiber Blanket |
|---|---|---|
| Fiber Composition | AES fiber | Typically alumina-silica RCF |
| Biopersistence | Designed for lower biopersistence | Depends on fiber type |
| Temperature Range | Depends on grade | Depends on grade |
| Flexibility | Depends on construction | Depends on construction |
| Selection Criteria | Fiber type, temperature, shrinkage, and strength | Temperature, shrinkage, strength, and application |
The final selection should be based on the application, technical data, installation design, and applicable safety requirements.
You may also compare our Ceramic Thermal Insulation Blanket for other industrial insulation requirements.
BioSoluble Ceramic Fiber Blanket Supplier — Mindelun
Mindelun supports B2B customers sourcing thermal insulation materials for industrial equipment, furnace projects, and distribution. We help buyers review product requirements and confirm suitable specifications based on application conditions and available grades.
When requesting a quotation, please provide:
- Required thickness and density
- Roll width and length
- Operating temperature and application
- Estimated order quantity
- Delivery destination and documentation requirements
Contact Mindelun to request product details and a quotation for BioSoluble Ceramic Fiber Blanket.
Professional Insulation Materials Manufacturer in China
Mindelun supplies a comprehensive range of ceramic fiber, mineral wool, calcium silicate, silica fiber and advanced insulation materials for industrial applications. From standard products to customized insulation solutions, we help customers improve thermal efficiency, equipment protection and operating performance.
Send Us An Inquiry
Related products
-
Biosoluble fiber insulation

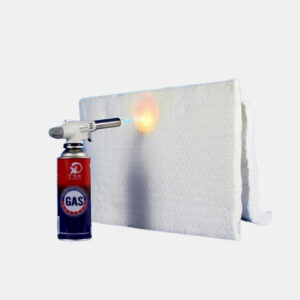

Low-Biopersistence AES Fiber Blanket for Industrial Insulation
