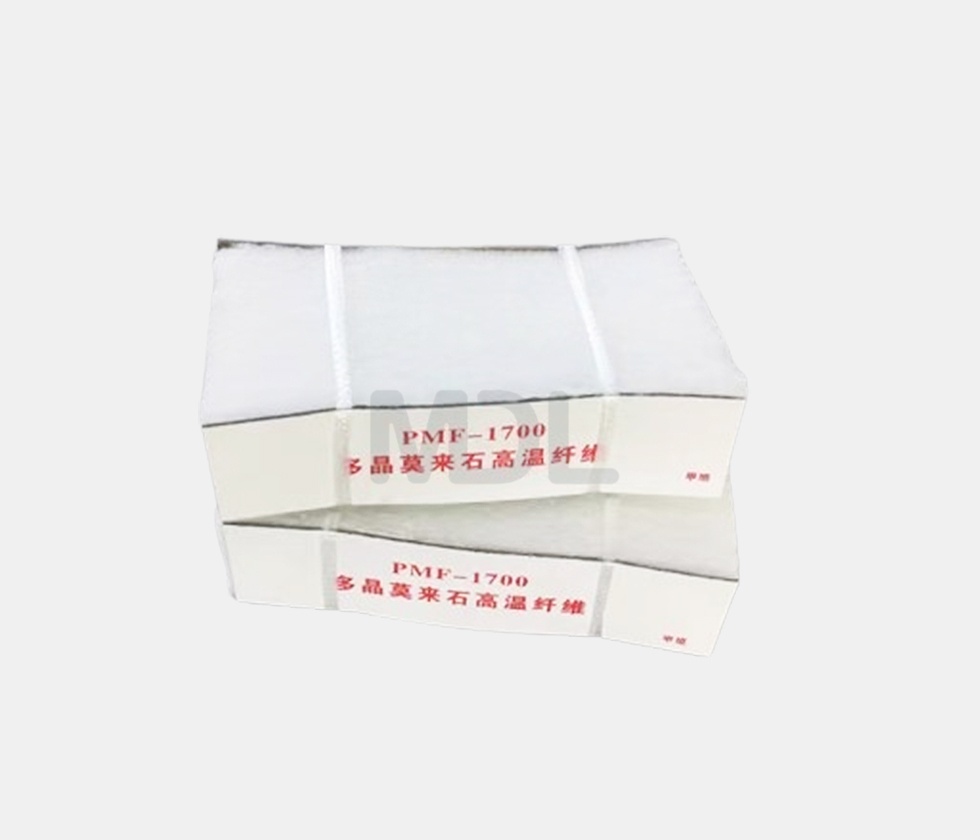

Polycrystalline Mullite Fiber Veneer Block
Product Description:
Temp Grade: 1600°C, 1800°C
Density: 100kg/m₃
Specification:
• 30x100x200mm
• 50x100x200mm
• 100x100x200mm
Customized specification is acceptable.
Share
product details
• DESCRIPTION
Polycrystalline mullite fiber veneer block is also called Polycrystalline mullite facing block, it made of polycrystalline mullite fiber by compression and cutting, the product does not contain any binder or other components, has excellent elasticity and flexibility, and the use temperature can reach 1600℃.
As a professional Polycrystalline Mullite Fiber Veneer Block supplier, Mindelun supports customized Polycrystalline Mullite Fiber Veneer Block solutions based on furnace temperature, lining structure, installation method, and project requirements. With professional material selection and OEM customization capabilities, we help customers achieve lightweight, energy-efficient, and reliable high-temperature insulation systems.
• PROPERTIES
Ø Low heat storage and low thermal conductivity.
Ø Thermal shock resistance, good sound absorption performance.
Ø High thermal reflection performance, uniform fiber diameter.
Ø Excellent chemical stability and resistance to airflow erosion.
• APPLICATION
Ø Kiln lining or furnace lining, heat treatment furnace, closed furnace cover.
Ø Ceramic fast firing kiln, furnace door.
Ø High temperature filter pad, high temperature sealing pad.
Ø Heating furnace, soaking furnace.
Ø Metallurgical, chemical, machinery, ceramics, electronics and other industries of thermal equipment.
• SPECIFICATION
| 1 | Item | Unit | Test Result |
| 2 | Grade | / | 1600 veneer block |
| 3 | Specification temp | (℃) | 1600 |
| 4 | Working temperature | (℃) | 1450 |
| 5 | Color | / | Pure White |
| 6 | Density | (kg/m₃) | 100±15 |
| 7 | Permanent shrinkage Rate of liner (24h, density 200kg/m3 ) | (%) | 1 |
| (1500℃） | |||
| Thermal conductivity of each heat surface(density 200kg/m3) | 0.226（1000℃） 0.295（1200℃） 0.387（1400℃） |
||
| 10 | Al₂O₃ | (%) | 72 |
| 11 | Al₂O₃+SiO₂ | (%) | 99.8 |
| 12 | Al₂O₃+SiO₂+ZrO₂ | (%) | – |
| 13 | ZrO₃ | (%) | – |
| 14 | Fe₂O3₃ | (%) | – |
| 15 | Na₂O+K₃O | (%) | – |
| 16 | Thickness | (mm) | 30-100 |
| 17 | Width | (mm) | 100 |
| 18 | Length | (mm) | 200 |
Professional Insulation Materials Manufacturer in China
Mindelun supplies a comprehensive range of ceramic fiber, mineral wool, calcium silicate, silica fiber and advanced insulation materials for industrial applications. From standard products to customized insulation solutions, we help customers improve thermal efficiency, equipment protection and operating performance.
Send Us An Inquiry
Related products
-
Polycrystalline mullite fiber insulation

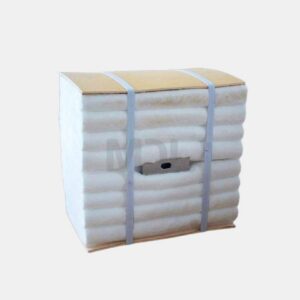

High Temperature Polycrystalline Mullite Fiber Module
Read more -
Polycrystalline mullite fiber insulation

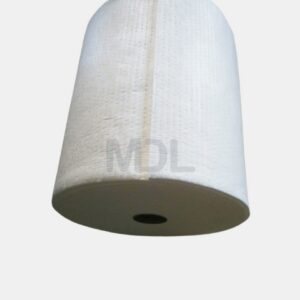

Heat Insulation Polycrystalline Mullite Fiber Blanket
