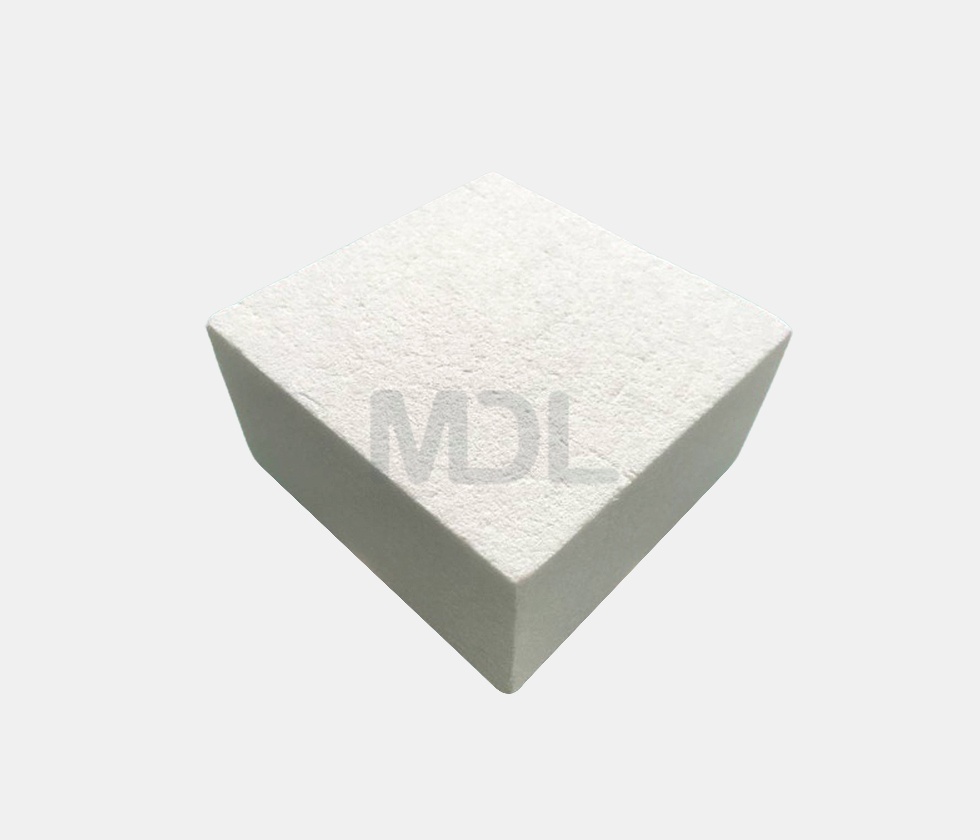

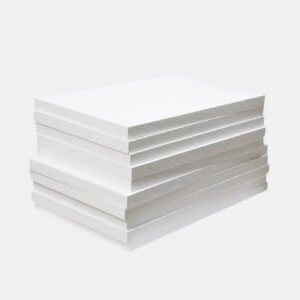

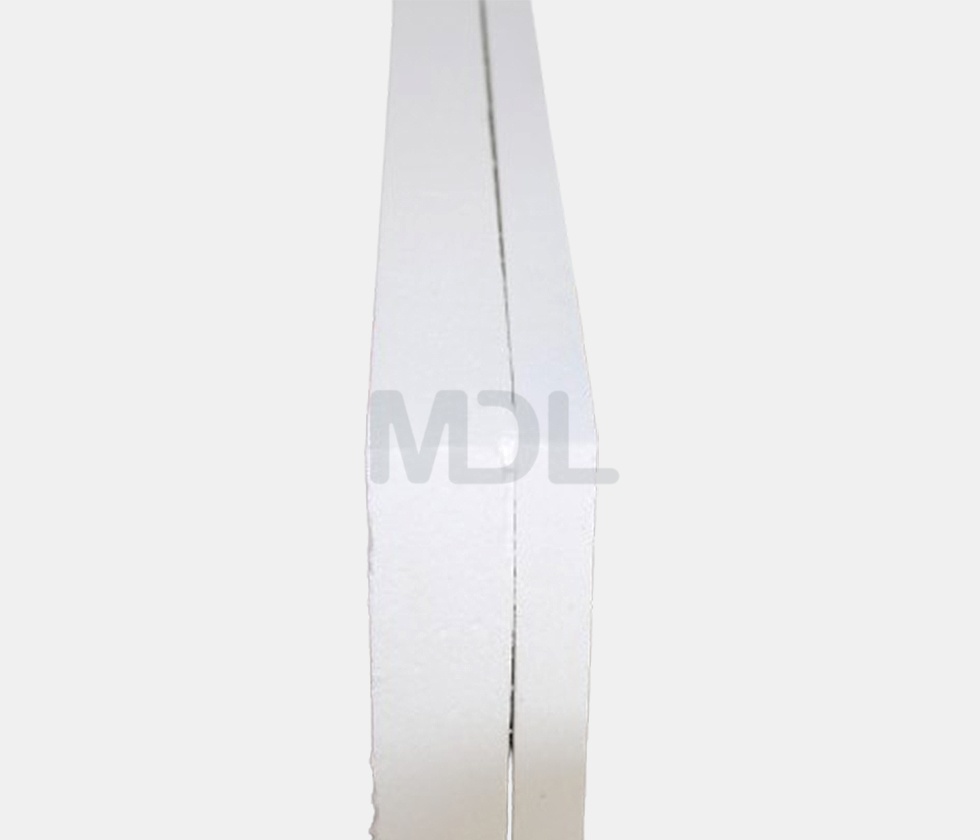

Polycrystalline Mullite Fiber Board
Product Description:
Temp Grade: 1600°C, 1700°C, 1800°C
Density: 300kg/m₃–600kg/m₃
Specification:
• 25x600x900/1000mm
• 50x600x900/1000mm
• 75x600x900/1000mm
• 150x600x900/1000mm
Customized specification is acceptable.
Share
product details
• DESCRIPTION
Polycrystalline mullite fiber board (also called PCW board)is produced by wet vacuum filtration and pressing molding, which is made of polycrystalline mullite fiber bulk, organi, inorganic binder. The product has excellent strength, anti-erosion and easy to cut.
As a professional Polycrystalline Mullite Fiber Board supplier, Mindelun provides different temperature grades, densities, thicknesses, and customized dimensions to meet specific furnace and thermal equipment requirements. Mindelun supports OEM customization and application-based material selection, helping customers balance thermal performance, service life, and overall Polycrystalline Mullite Fiber Board cost for their projects.
• PROPERTIES
Ø Good high temperature resistance.
Ø Excellent corrosion resistance.
Ø Low coefficient of thermal expansion.
Ø Small wire shrinkage rate under high temperature.
Ø Easy cut and deep process.
Ø Good resistance to flame and airflow erosion.
• APPLICATION
Ø Industrial kiln lining Heat treatment.
Ø Ladle furnace, bell jar kiln, tunnel kiln, roller kiln.
Ø High temperature fire baffle; Kiln car heat insulation.
Ø Liquid collection tanks and flume in aluminum products industry.
Ø Heat insulation of various high temperature industrial kilns.
• SPECIFICATION
| 1 | Item | Unit | Test Result | Test Result |
| 2 | Grade | / | Mullite | Mullite |
| 3 | Specification temp | (℃) | 1600 | 1800 |
| 4 | Working temperature | (℃) | 1450 | 1650 |
| 5 | Color | / | Pure White | Pure White |
| 6 | Density | (kg/m₂) | 300-600 | 300-600 |
| 7 | Permanent shrinkage Rate of liner (24h, density 300kg/m3) | (%) | ≤0.5 | ≤0.3 |
| (1450℃） | (1650℃） | |||
| Thermal conductivity of each heat surface(density 300kg/m3) | 0.22（1000℃） | 0.22（1000℃） | ||
| 9 | Compression strength (density 280kg/m₃) | (Mpa) | ≧0.5 | ≧0.06 |
| 10 | Al₂O₃ | (%) | 68 | 78 |
| 11 | Al₂O₃+SiO₂ | (%) | 99.5 | 99.8 |
| 12 | Al₂O₃+SiO₂+ZrO₂ | (%) | – | – |
| 13 | ZrO₂ | (%) | – | – |
| 14 | Fe₂O₃ | (%) | – | – |
| 15 | Na₂O+K₂O | (%) | – | – |
| 16 | Thickness | (mm) | 25/50/75/150 | |
| 17 | Width | (mm) | 600 | |
| 18 | Length | (mm) | 900/1000 | |
