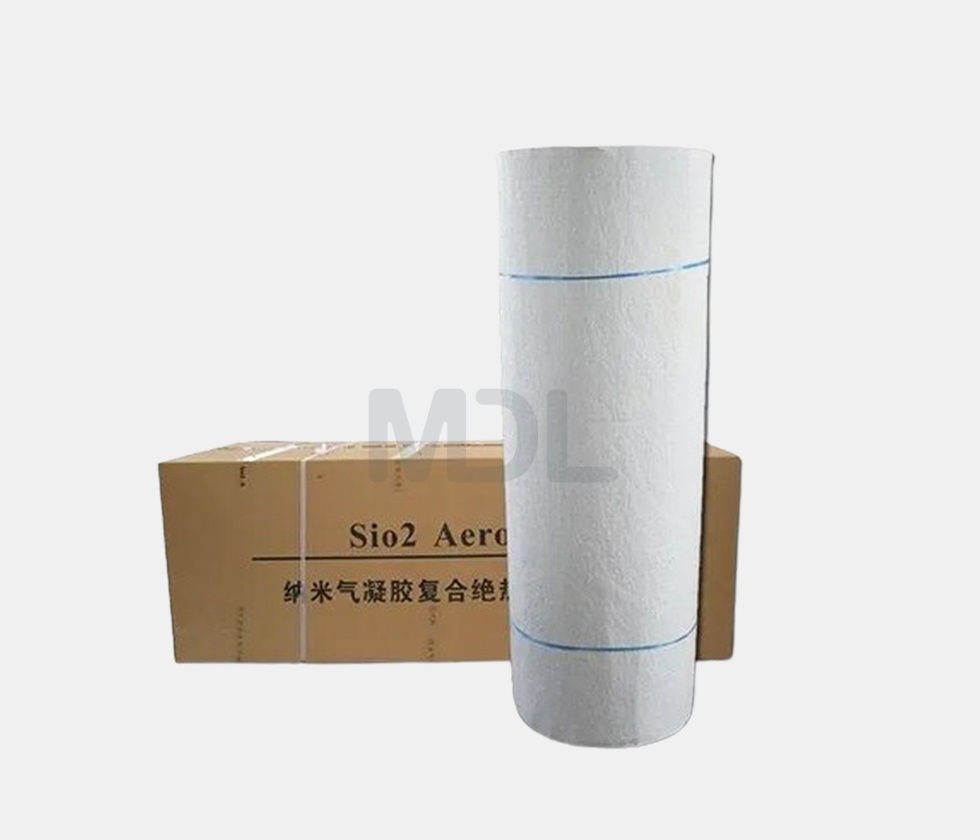

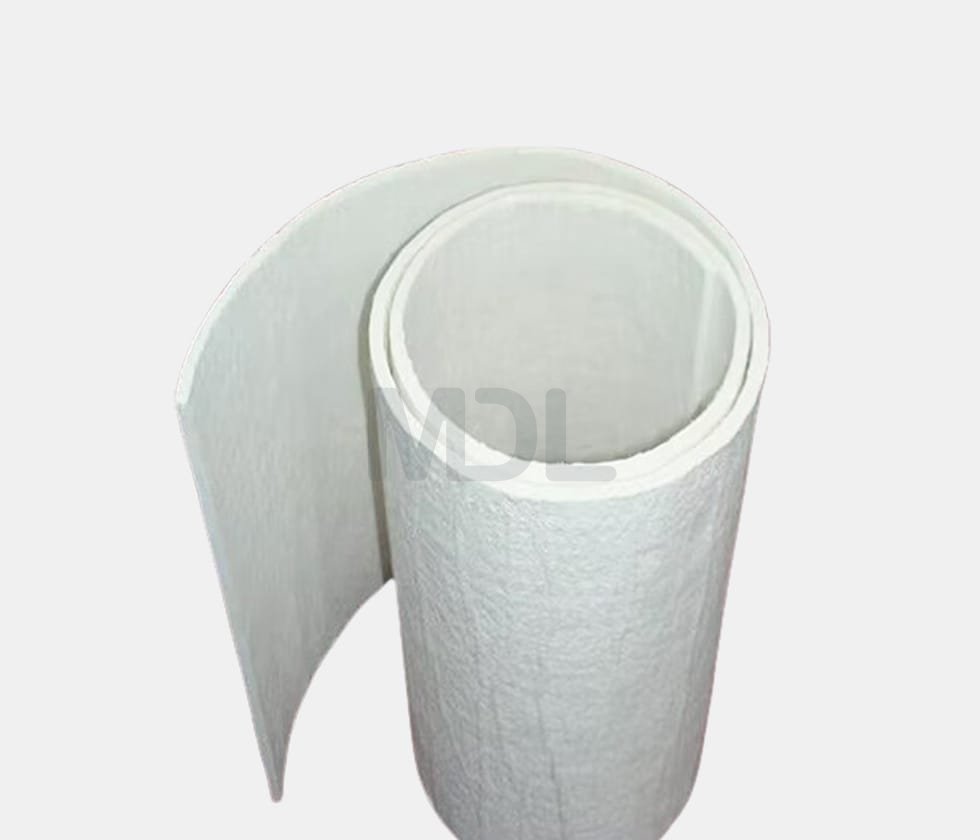

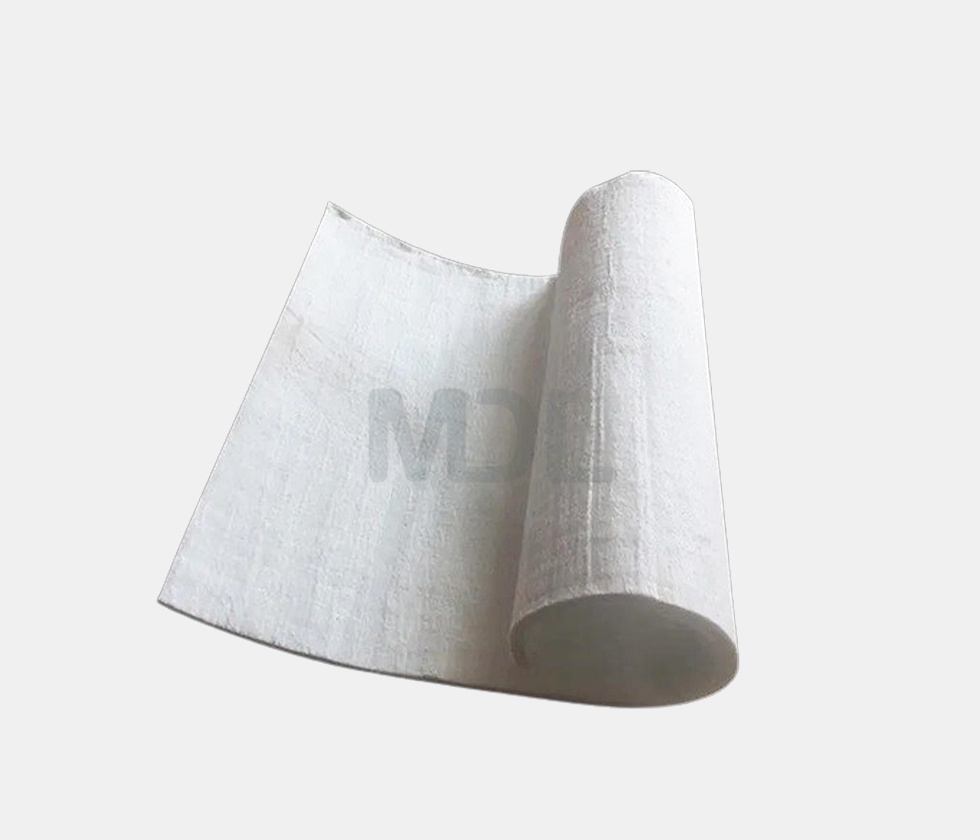

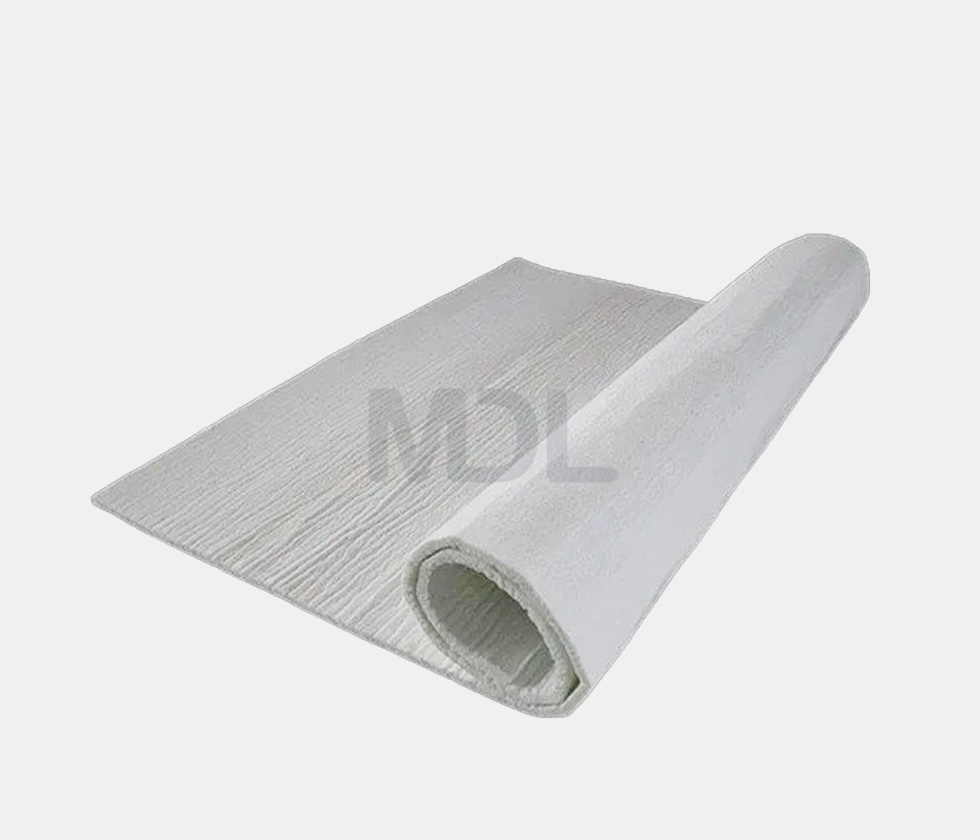

Nano Aerogel Insulation Blanket
Product Description:
Temp Grade: 1000°C
Bulk density: 180kg/m₃–210kg/m₃
Specification:
•Thickness: 3/5/6/10mm
•Width:1500mm
Customized specification is acceptable.
Share
product details
• DESCRIPTION
Nano aerogel insulation blanket is a new type of high efficiency heat insulation material based on the principle of nano pores. The material consists of 7 to 12 nanometers of silica and high-silica glass fibers, forming numerous nanoscale micropores inside, and contains highly efficient infrared reflection components, which minimize heat transfer, convection and radiation, and has a lower thermal conductivity than still air.
The thermal insulation performance of the material is 3 to 6 times that of traditional materials, and it is one of the most efficient high-temperature thermal insulation materials so far. As a professional Nano aerogel insulation blanket supplier, Mindelun offers more than standard thermal insulation-grade products. We also provide Polycrystalline mullite fiber insulation in various densities, along with Biosoluble fiber insulation materials, delivering reliable solutions for thermal insulation, energy saving, fire protection and environmental protection.
• PROPERTIES
Ø Low thermal conductivity, good heat insulation effect. The thermal insulation performance of the material is 3 to 6 times that of traditional materials.To get same insulation effect, the thickness is few fraction of traditional material.
Ø Good hydrophobicity and Class A fire resist.
Ø Does not contain any asbestos and ceramic fiber, completely harmless to health.
Ø The surface is soft, does not cut hands, can be processed well.
Ø Light weight and easy to transportation.
• APPLICATION
Ø Oil mining steam pipeline, prefabricated insulation pipe.
Ø Thermal power plant, petrochemical plant.
Ø Chemical plant pipeline storage tanks,containers and other equipment insulation.
Ø All kinds of high and low temperature furnace equipment.
Ø High-speed train, automobile, subway and other vehicle body insulation.
Ø Building insulation.
• SPECIFICATION
| 1 | Item | Unit | Test Result |
| 2 | Modle | / | NMT-1 |
| 3 | Thickness | (mm) | 3/5/6/10 |
| 4 | Width | (mm) | 1500 |
| 5 | Working temperature | (℃) | 650 |
| 6 | Thermal conductivity | w/m.k | ≤0.021 |
| 7 | Bulk density | (kg/m₃) | 180±30 |
| 8 | Hydrophobicity | (%) | ≥99 |
| 9 | SiO₂ | (%) | 96 |
| 10 | Chlorine ion content | (%) | ≤0.001 |
