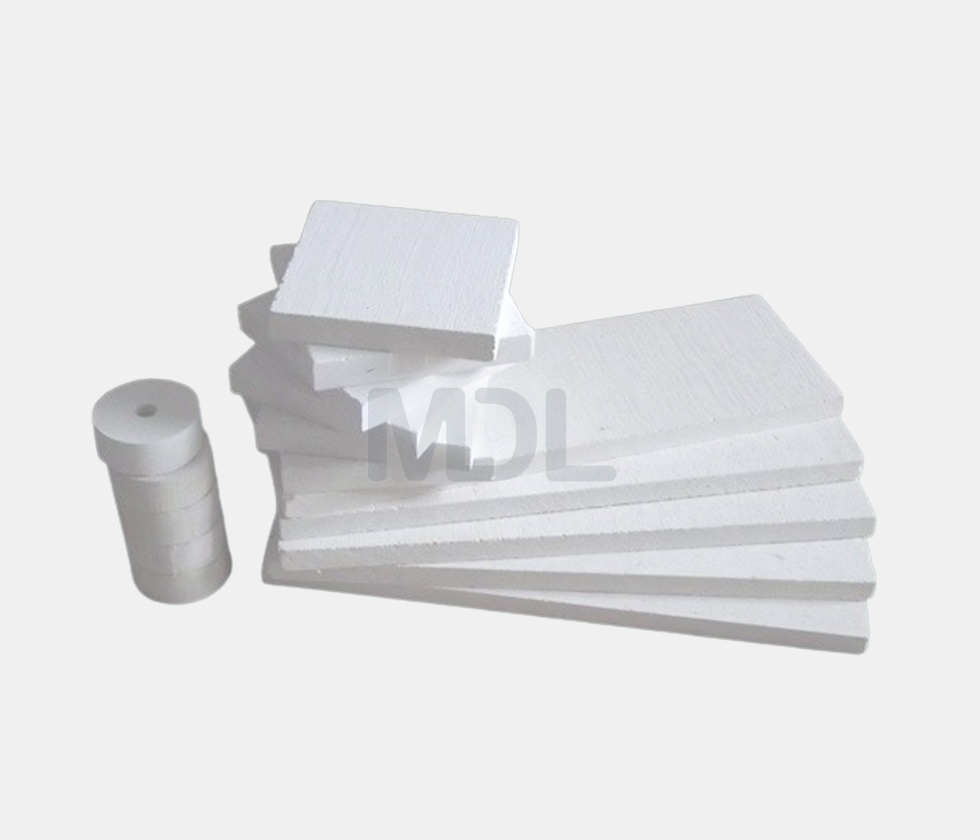

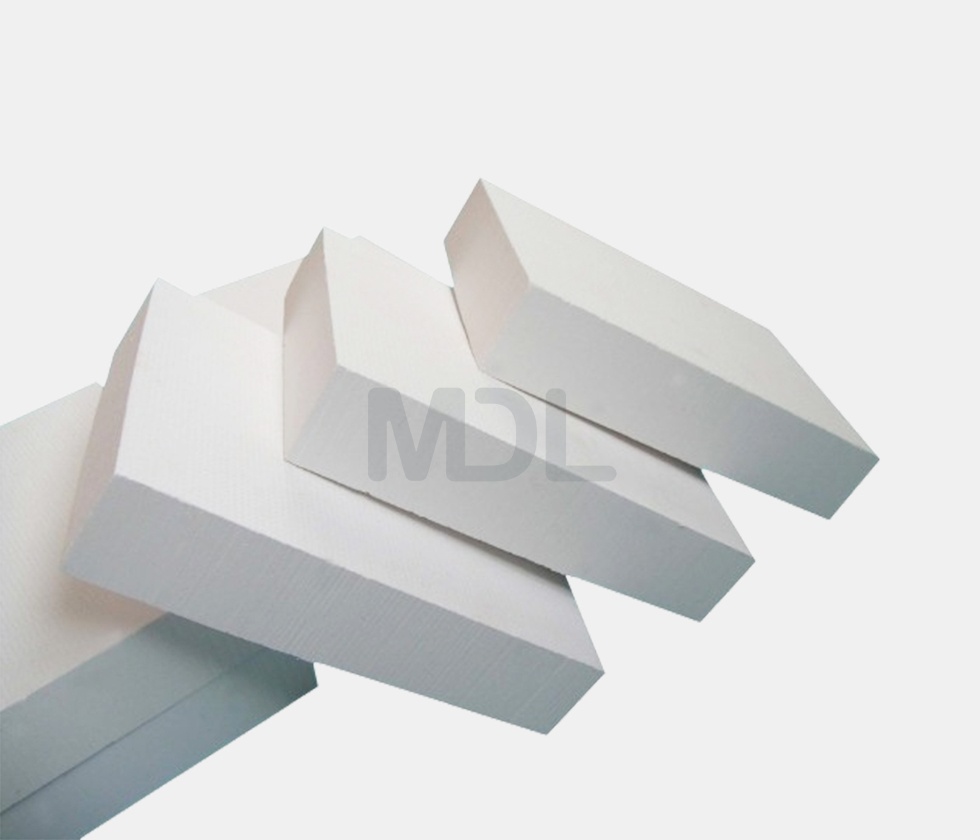

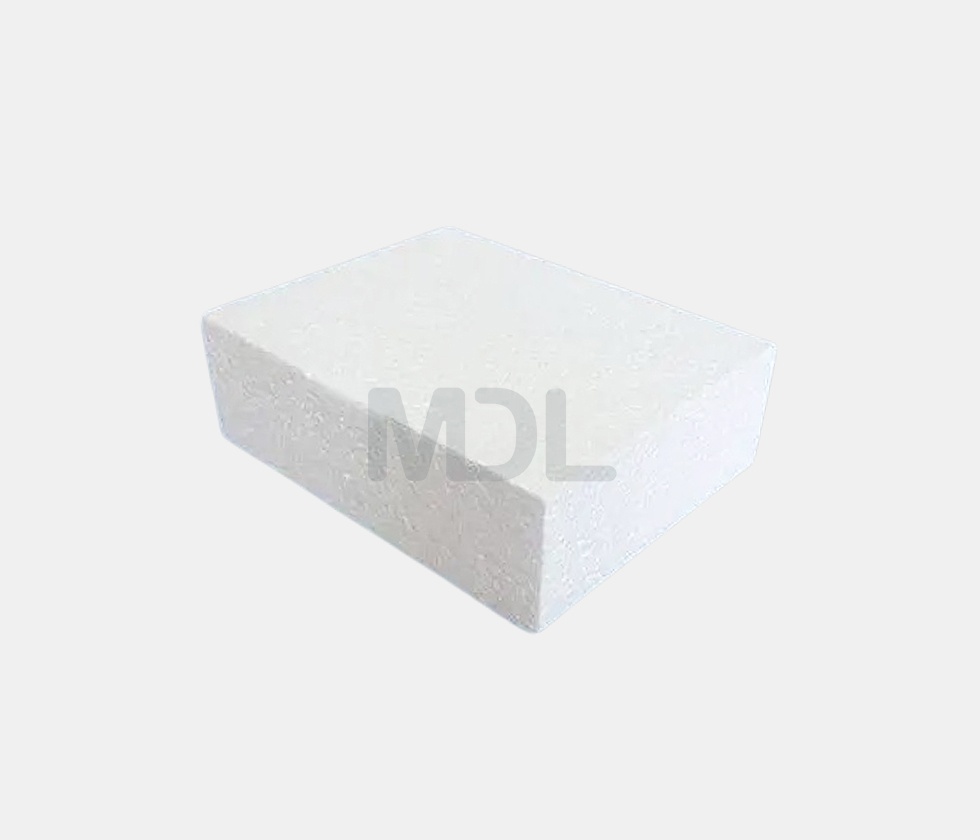

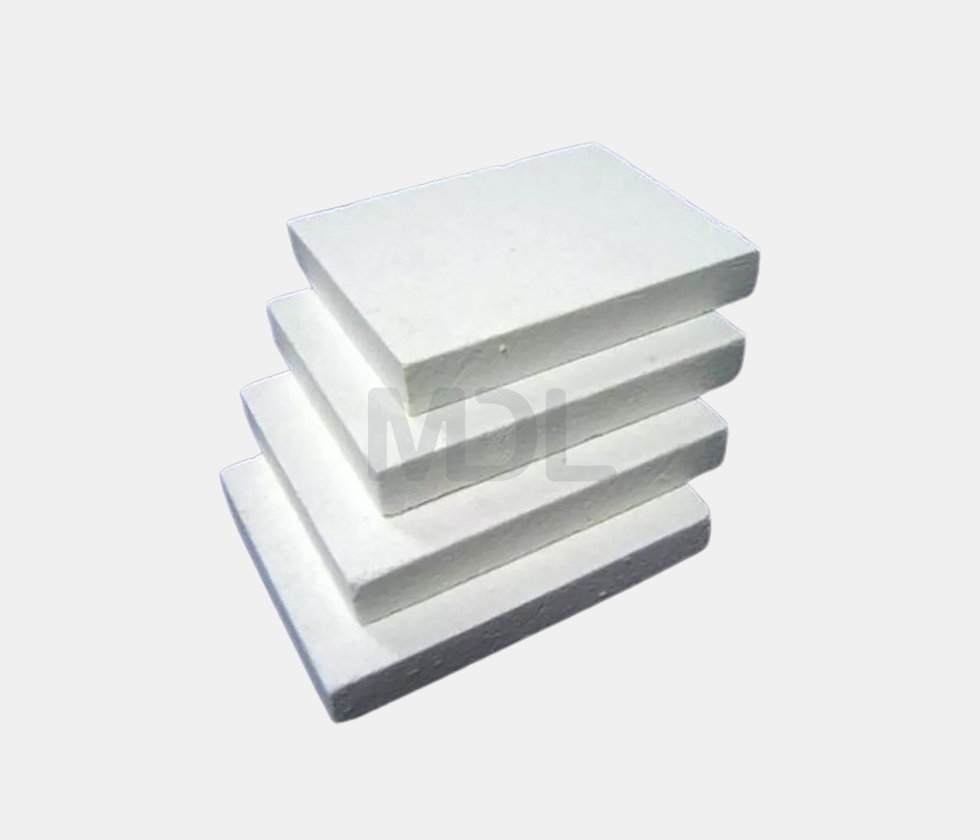

Low Density Calcium Silicate Board
Product Description:
Temp Grade: 650°C, 1050°C.
Density: 200-300kg/m₃
Specification:
• 1000 mm x 500mm x 20-120mm ( Thickness)
• 600mm x 300mm x 20-120mm ( Thickness )
Customized specification is acceptable.
Share
product details
• DESCRIPTION
Low Density Calcium Silicate Boards are lightweight insulation boards made from inorganic mineral or cellulose fibers reinforced with silica-calcium materials. Through pulping, molding, and high-temperature, high-pressure steam curing, they form a stable calcium silicate structure with excellent fire resistance, moisture resistance, sound insulation, durability, and insect resistance.
These calcium silicate insulation boards are widely used for ceilings, partitions, wall insulation, and industrial equipment insulation. As an experienced Low Density Calcium Silicate Board Manufacturer, Mindelun offers different densities, thicknesses, and sizes. When comparing silicate calcium board price, density, dimensions, quantity, and performance requirements should all be considered.
• PROPERTIES
Ø Light bulk weight.
Ø High strength.
Ø Low thermal conductivity.
Ø Good corrosion resistance.
Ø Small heat capacity and sound insulation.
Ø High temperature resistance.
Ø Easy cutting, sawing and so on.
• APPLICATION
Ø Cement: – Preheaters/Precalciners, Coolers, TAD etc.
Ø Aluminium: – Reduction pots, Other Thermal Process Equipment
Ø Glass: – Furnace, Recuperators, Annealing etc.
Ø Steel: – Various types of furnaces as refractory back up.
Ø Power Plants: – Boilers, Steam Lines, Recuperators etc.
Ø Fertilizers :- Reformers, Steam Lines, Furnaces,
Ø Petrochemicals Incinerators, High Temp. Equipments, & Refineries. Hot Gas & Chemical lines etc.
Ø Ceramic: – Tunnel kilns.
Ø Ship Building: – Boilers, Turbines, Steam Lines, Fuel Gas ducts etc.
Ø Chemicals: – Boilers, High Temp. Reactors, Fuel Gas ducts, Steam/ Thermic fluid lines, Dryers, Furnaces etc.
Ø Others: – Significant fuel saving can be obtained in Sugar Mills, Foundries Rolling Mills and other industries, which use thermal equipments at High Temperature.
• SPECIFICATION
| Physical properity | Unit | MINDELUN BRAND–1000℃ | GB/T10699 | JISA9510-1995 NO.1-22 | ASTM C533-2007TYPE-II | |||
| Bulk density | kg/m₃ | 200±10% | 230±10% | 250±10% | 300±10% | ≤220 | ≤220 | ≤352 |
| Bending strength | MPa | ≥0.35 | ≥0.45 | ≥0.50 | ≥1.0 | ≥0.30 | ≥0.30 | ≥0.344 |
| Compress Strength | MPa | ≥0.60 | ≥0.80 | ≥0.90 | ≥2.0 | ≥0.50 | ≥0.50 | ≥0.688 |
| Thermal conductivity at | W/m.k | ≤0.075(200±5℃) | ≤0.085(200±5℃) | ≤0.095(200±5℃) | ≤0.11(900±5℃) | ≤0.065(100±5℃) | ≤0.060(70±5℃) | ≤0.095(204±5℃) |
| Max using temp | ℃ | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 927 |
| Permanent shrinkage Rate of liner | % | ≤2(1000,16hrs) | ≤2(1000,16hrs) | ≤2(1000,16hrs) | ≤1.2(1000,3hrs) | ≤2(1000,16hrs) | ≤2(1000,3hrs) | ≤2(927,24hrs) |
| Length mm | mm | 500 | 600 | 1000 | 1000 | 1080 | 1220 | 1220 |
| Width | mm | 500 | 300 | 500 | 600 | 950 | 1220 | 1220 |
| Thickness | mm | 20-120 | 20-120 | 20-120 | 20-120 | 50–110 | 50–110 | 20–120 |
| SiO₂ | 46-48% | |||||||
| CaO | 39—41% | |||||||
| AlO₃ | 0.39-0.42% | |||||||
| MgO | 0.5-0.7% | |||||||
| Fe2O₃ | 0.3-0.4% | |||||||
| Na2-K2O | 0.9—0.12% | |||||||
| LOI | 8—11% | |||||||
| MINDELUN BRAND–650℃ | |||
| Physical properity | Modle | MDL-230 | MDL-250 |
| Bulk density | kg/m₃ | 230(±10%) | 250(±10%) |
| Compress Strength | Mpa | ≥0.50 | ≥0.60 |
| Bending strength | Mpa | ≥0.30 | ≥0.45 |
| Thermal conductivity at 100℃ | w/m.k | 0.06 | 0.062 |
| Max using temp | ℃ | 650 | 650 |
| Permanent shrinkage Rate of liner | % | ≤2 | ≤2 |
| Length mm | 100–600 | ||
| Width | 100–300 | ||
| Thickness | 30–100 | ||
| SiO₂ | 46-48% | ||
| CaO | 39—41% | ||
| AlO₃ | 0.39-0.42% | ||
| MgO | 0.5-0.7% | ||
| Fe2O₃ | 0.3-0.4% | ||
| Na₂-K₂O | 0.9—0.12% | ||
| LOI | 8—11% | ||
