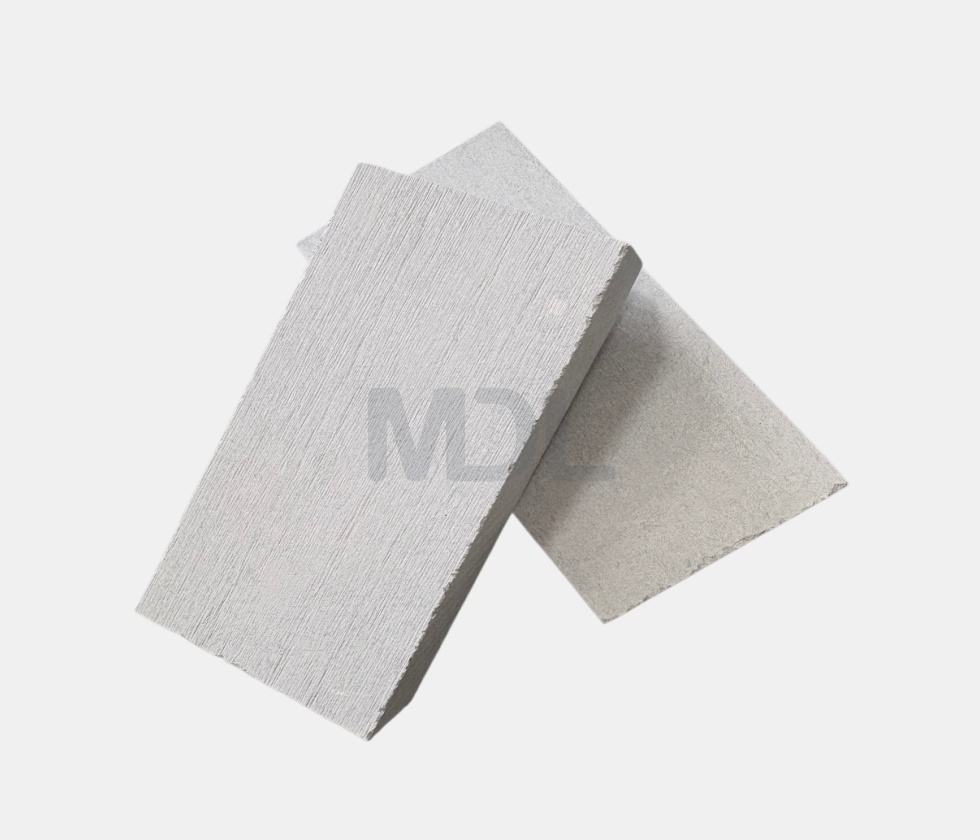

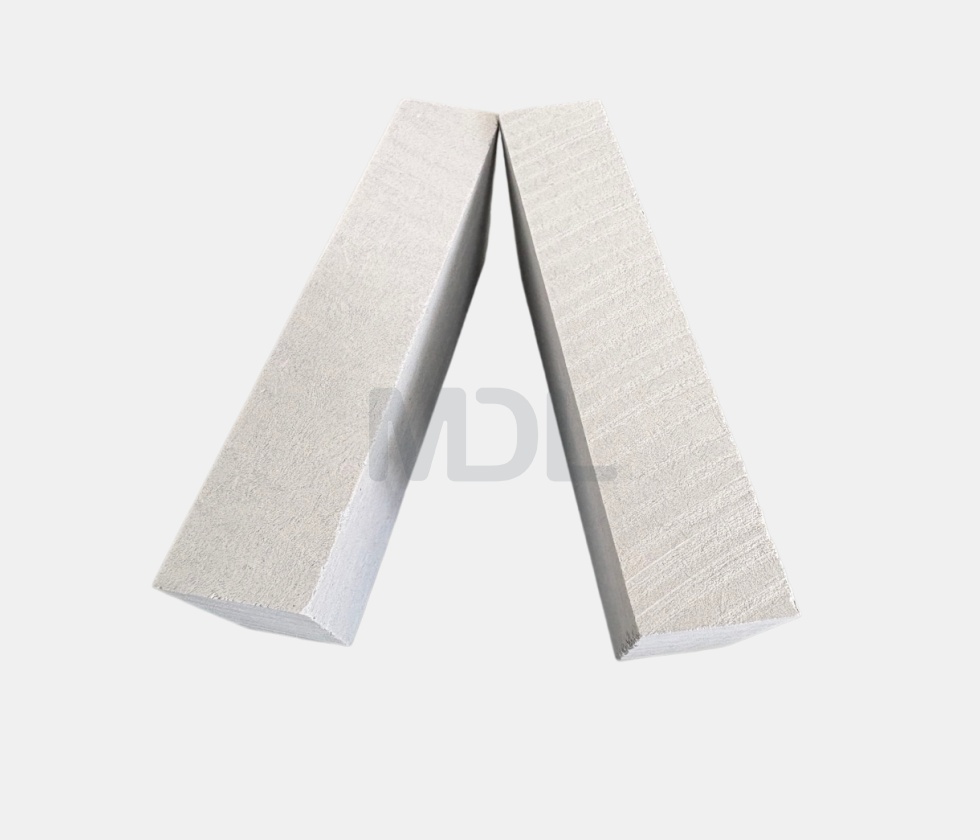

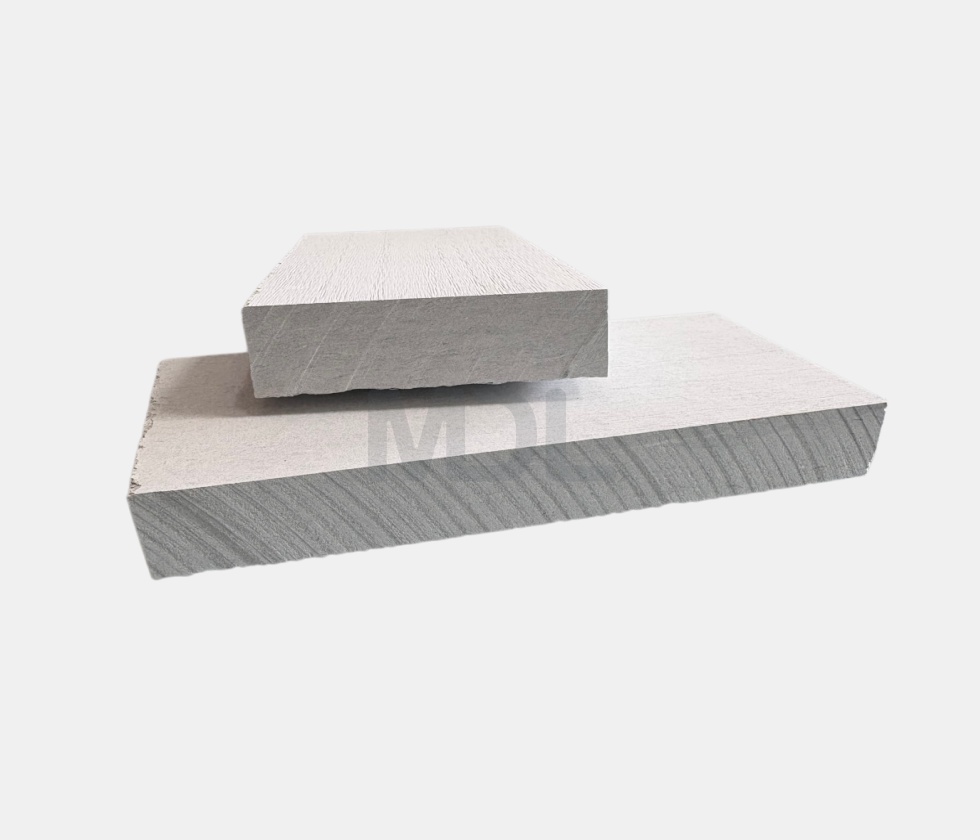

Carbon Fiber Reinforced Calcium Silicate Board
Product Description:
Temp Grade: 1000°C.
Density: 750kg/m₃–800kg/m₃
Specification:
• 1200mm x 1200mm x 20-120mm ( Thickness )
• 1200mm x 2440mm x 20-120mm ( Thickness )
Customized specification is acceptable.
Share
product details
• DESCRIPTION
Carbon Fiber Reinforced Calcium Silicate Board is a high-performance calcium silicate insulation board enhanced with carbon fibers to provide improved strength, dimensional stability, and performance in demanding high-temperature environments. Also referred to as Carbon Fiber Calcium Silicate Board or Calcium Silicate Carbon Fiber Reinforced Board, it is a specialized functional insulation material rather than a conventional building material.
The unique combination of calcium silicate and carbon fiber reinforcement makes this carbon fiber reinforced calcium silicate board particularly suitable for high-temperature industrial applications where thermal insulation, mechanical strength, and dimensional stability are required. It is widely used in non-ferrous metal processing, especially aluminum smelting and casting, as well as other demanding thermal processing systems.
Compared with standard calcium silicate boards, carbon fiber reinforcement helps improve the board’s resistance to cracking and mechanical stress while maintaining the excellent thermal insulation properties of calcium silicate. Mindelun supplies carbon fiber reinforced calcium silicate board in customized specifications for industrial equipment, aluminum processing systems, and other high-temperature insulation applications.
• PROPERTIES
Ø High Strength and Excellent Thermal Stability: Carbon fibers greatly enhance the board’s strength. For example, some carbon fiber reinforced boards can achieve compressive strength of ≥18 MPa and flexural strength of ≥8.5 MPa. Meanwhile, they maintain stable performance at temperatures as high as 1000°C–1050°C, with excellent thermal shock resistance.
Ø Non-wetting” to Aluminum: This is a critical feature for aluminum industry applications. Carbon fiber reinforced high-density calcium silicate boards do not wet with molten non-ferrous metals like aluminum, effectively preventing adhesion and erosion by molten aluminum. This makes them ideal for components that come into direct contact with molten aluminum.
Ø Low Thermal Conductivity: They still provide good thermal insulation at high temperatures, with thermal conductivity as low as 0.04–0.05 W/(m·K), helping to reduce heat loss.
Ø Environmentally Safe: The product is asbestos-free, making it an environmentally friendly and safe material.
• APPLICATION
Ø Molten aluminum troughs, transition plates, filter plates: Utilizing its non-wetting and high-strength properties.

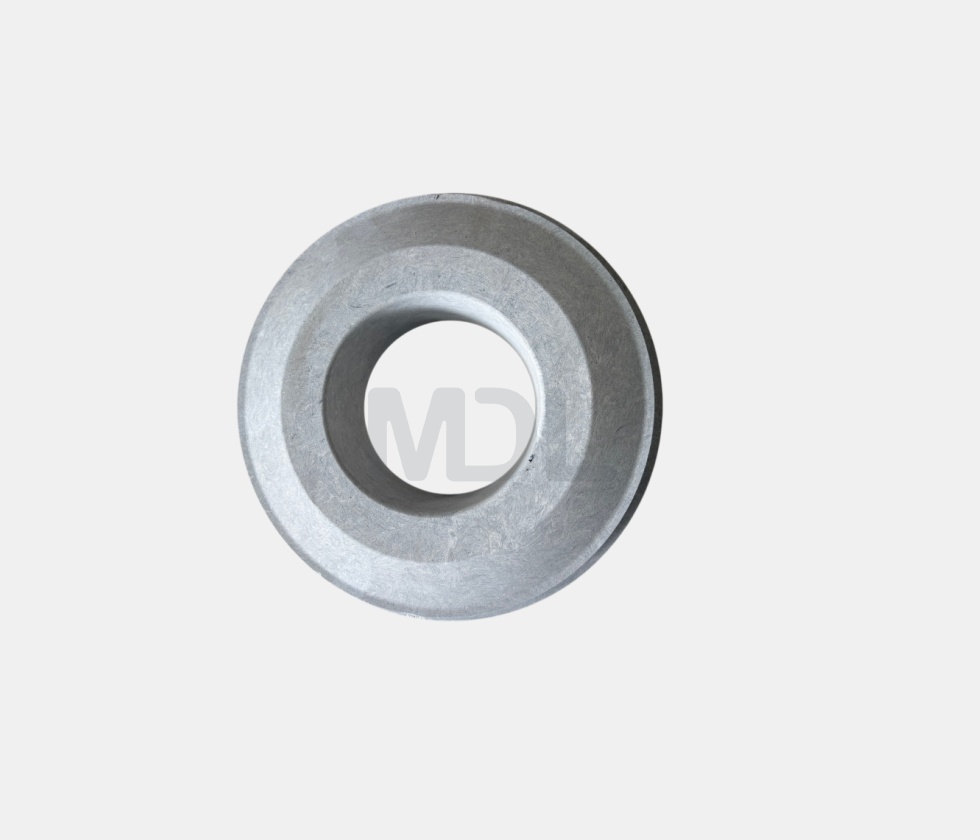

Ø Casting sprue bushings, (flow divider plates), hot-top rings: Used in precision casting processes like low-pressure casting, serving as a cost-effective alternative to titanium aluminate components.
Ø Insulating linings for industrial furnaces and kilns: Such as backing insulation layers for heating furnaces, annealing furnaces, and electrolytic cells.
Ø High-temperature molds and formers: For example, molds used in hot bending of automotive glass.
• SPECIFICATION
| Physical properity | Unit | MINDELUN BRAND–1000℃ |
| Bulk density | kg/m₃ | 750-800±10% |
| Bending strength | MPa | ≥8 |
| Compress Strength | MPa | ≥15 |
| Thermal conductivity at 500℃ | W/m.k | ≤0.15 |
| Max using temp | ℃ | 850 |
| Shrinkage Rate of liner (850,24hrs) | In width&length direction % | 0.31 |
| In thickness direction % | ≤1.61 | |
| Length*Width | ||
| 1000*500
600*300 1200*1200 1220*2440 |
||
| Thickness | 20-120mm | |
| SiO₂ | 46-48% | |
| CaO | 39—41% | |
| AlO₃ | 0.39-0.42% | |
| MgO | 0.5-0.7% | |
| Fe2O₃ | 0.3-0.4% | |
| Na2-K2O | 0.9—0.12% | |
| LOI | 8—11% | |
Carbon Fiber Reinforced Calcium Silicate Board FAQ
1. What is Carbon Fiber Reinforced Calcium Silicate Board?
Carbon Fiber Reinforced Calcium Silicate Board is a high-performance calcium silicate insulation board reinforced with carbon fibers. It provides improved mechanical strength, crack resistance, dimensional stability, and thermal insulation for demanding high-temperature industrial applications.
2. What is Carbon Fiber Calcium Silicate Board used for?
Carbon Fiber Calcium Silicate Board is widely used for aluminum smelting and casting, non-ferrous metal processing, industrial furnaces, thermal equipment, aluminum processing systems, and other high-temperature insulation applications.
3. What are the advantages of Carbon Fiber Reinforced Calcium Silicate Board?
Carbon fiber reinforcement improves resistance to cracking, mechanical stress, and dimensional deformation while maintaining the thermal insulation performance of calcium silicate. This makes it suitable for applications requiring both insulation and structural stability.
4. Is Carbon Fiber Reinforced Calcium Silicate Board suitable for aluminum processing?
Yes. Carbon Fiber Reinforced Calcium Silicate Board for aluminum processing is designed for demanding thermal environments such as aluminum smelting, casting, and related equipment, where good insulation, strength, and dimensional stability are required.
5. Is Mindelun a Carbon Fiber Reinforced Calcium Silicate Board Manufacturer?
Yes. Mindelun is a Carbon Fiber Reinforced Calcium Silicate Board Manufacturer in China, supplying customized carbon fiber calcium silicate boards for aluminum processing, industrial equipment, thermal systems, and other high-temperature applications.
6. Is Mindelun a Carbon Fiber Calcium Silicate Board Supplier in China?
Yes. As a Carbon Fiber Calcium Silicate Board Supplier in China, Mindelun provides factory-direct B2B supply for distributors, wholesalers, contractors, manufacturers, and industrial project customers.
7. Does Mindelun have a Carbon Fiber Calcium Silicate Board Factory?
Yes. Mindelun operates as a Carbon Fiber Calcium Silicate Board Factory supporting customized production, quality control, OEM/ODM service, and bulk supply according to customer specifications.
8. Can I buy Carbon Fiber Reinforced Calcium Silicate Board directly from a China factory?
Yes. Customers can purchase Carbon Fiber Reinforced Calcium Silicate Board directly from a China factory through Mindelun. Sample orders, bulk orders, and container shipments are available for B2B customers.
9. Does Mindelun provide custom Carbon Fiber Reinforced Calcium Silicate Board?
Yes. As a Custom Carbon Fiber Reinforced Calcium Silicate Board Manufacturer, Mindelun can customize thickness, length, width, density, cutting, machining, packaging, labeling, and other specifications according to project requirements.
10. What specifications can Mindelun produce?
Mindelun can produce Carbon Fiber Calcium Silicate Board with customized specifications, including 750–850 kg/m³ density, 20–120 mm thickness, and dimensions up to 2440 × 1200 mm, depending on the application and production requirements.
11. Can Carbon Fiber Reinforced Calcium Silicate Board be used for furnace insulation?
Yes. Carbon Fiber Reinforced Calcium Silicate Board for furnace insulation can be used as rigid thermal insulation or structural insulation components in suitable industrial furnaces and thermal processing equipment. The appropriate grade should be selected according to temperature, mechanical load, and installation conditions.
12. Does Mindelun provide OEM Carbon Fiber Calcium Silicate Board?
Yes. Mindelun provides OEM Carbon Fiber Calcium Silicate Board with customized dimensions, specifications, packaging, labeling, and private-label options for distributors, manufacturers, contractors, and industrial buyers.
13. Can I order Carbon Fiber Calcium Silicate Board wholesale?
Yes. Mindelun provides Carbon Fiber Calcium Silicate Board wholesale supply for distributors, wholesalers, contractors, manufacturers, and industrial project customers. Bulk and container orders can be arranged according to specifications and quantities.
14. Is Carbon Fiber Calcium Silicate Board available for industrial equipment insulation?
Yes. Carbon Fiber Calcium Silicate Board for industrial equipment insulation can be used in suitable thermal processing equipment, aluminum processing systems, furnaces, and other industrial applications requiring rigid high-temperature insulation.
15. What information is needed for a quotation?
For a Carbon Fiber Reinforced Calcium Silicate Board quotation, please provide:
- Working temperature
- Thickness
- Length and width
- Required density
- Application
- Quantity
- Cutting or machining requirements
- Packaging or OEM requirements
- Delivery destination
Drawings and technical specifications are also welcome for customized industrial projects.
16. Does Mindelun supply other calcium silicate insulation boards?
Yes. As a China calcium silicate board manufacturer and calcium silicate insulation board supplier, Mindelun also supplies medium-density, low-density, glass fiber reinforced, carbon fiber reinforced, and other calcium silicate insulation boards for industrial applications.
17. Why choose Mindelun as a Carbon Fiber Reinforced Calcium Silicate Board Supplier?
Mindelun combines China manufacturing, customized production, OEM/ODM service, factory-direct B2B supply, and project-based product selection. As a Carbon Fiber Reinforced Calcium Silicate Board Supplier, Mindelun supports distributors, wholesalers, contractors, manufacturers, and industrial buyers with customized insulation solutions and one-stop sourcing.
