Polycrystalline Mullite Fiber Veneer Block for Industrial Insulation
Product Description:
Temp Grade: 1600°C, 1800°C
Density: 100kg/m₃
Specification:
• 30x100x200mm
• 50x100x200mm
• 100x100x200mm
Customized specification is acceptable.
Share
Polycrystalline Mullite Fiber Veneer Block
Polycrystalline Mullite Fiber Veneer Block is a lightweight, flexible and high-temperature insulation component made from high-purity polycrystalline mullite fiber. Also called PCW Veneer Block or Polycrystalline Fiber Veneer Piece, it is designed for furnace insulation, thermal sealing and hot-face insulation in demanding industrial applications.
Mindelun is a professional Polycrystalline Mullite Fiber manufacturer and supplier, providing customized PCW insulation components for furnace manufacturers, refractory distributors, insulation contractors, EPC companies and industrial users.
Key Features
- High-temperature stability for demanding insulation applications
- Low thermal conductivity and low heat storage
- Low linear shrinkage and good dimensional stability
- Excellent thermal shock resistance
- Flexible and resilient structure for selected surfaces
- Good chemical stability under suitable conditions
- Lightweight and easy to handle and install
- Custom cutting and compression forming available
Applications
PCW Veneer Block is suitable for specialized areas of high-temperature furnace insulation, particularly where flexible contact, thermal sealing or customized shapes are required.
Typical applications include:
- Steel heating, reheating and heat treatment furnaces
- Annealing and soaking furnaces
- Ceramic fast-firing, tunnel and roller kilns
- High-temperature electric furnaces
- Furnace doors and covers
- Furnace door sealing and expansion gaps
- Glass and thermal processing equipment
- High-temperature furnace lining and backup insulation
For complete industrial furnace insulation systems, PCW veneer blocks can be combined with suitable fiber insulation products according to furnace design and operating conditions.
Custom PCW Veneer Block
Mindelun supplies custom PCW Veneer Block according to drawings, samples and project requirements. Customization includes:
- Length, width and thickness
- Density
- Special shapes and cutting dimensions
- Compression forming
- Packaging and OEM requirements
Customers can provide the working temperature, dimensions, installation position and application for product selection and quotation.
Specifications
| 1 | Item | Unit | Test Result |
| 2 | Grade | / | 1600 veneer block |
| 3 | Specification temp | (℃) | 1600 |
| 4 | Working temperature | (℃) | 1450 |
| 5 | Color | / | Pure White |
| 6 | Density | (kg/m₃) | 100±15 |
| 7 | Permanent shrinkage Rate of liner (24h, density 200kg/m3 ) | (%) | 1 |
| (1500℃） | |||
| Thermal conductivity of each heat surface(density 200kg/m3) | 0.226（1000℃） 0.295（1200℃） 0.387（1400℃） |
||
| 10 | Al₂O₃ | (%) | 72 |
| 11 | Al₂O₃+SiO₂ | (%) | 99.8 |
| 12 | Al₂O₃+SiO₂+ZrO₂ | (%) | – |
| 13 | ZrO₃ | (%) | – |
| 14 | Fe₂O3₃ | (%) | – |
| 15 | Na₂O+K₃O | (%) | – |
| 16 | Thickness | (mm) | 30-100 |
| 17 | Width | (mm) | 100 |
| 18 | Length | (mm) | 200 |
Polycrystalline Mullite Fiber Supplier
Mindelun provides factory-direct PCW insulation for distributors, wholesalers, furnace manufacturers, contractors and industrial projects. Our product range also includes Polycrystalline Mullite Fiber Board, Polycrystalline Mullite Fiber Blanket and other high-temperature insulation materials.
If you need a Polycrystalline Mullite Fiber Veneer Block supplier or custom high-temperature insulation manufacturer, contact Mindelun with your application and specifications.
Professional Insulation Materials Manufacturer in China
Mindelun supplies a comprehensive range of ceramic fiber, mineral wool, calcium silicate, silica fiber and advanced insulation materials for industrial applications. From standard products to customized insulation solutions, we help customers improve thermal efficiency, equipment protection and operating performance.
Send Us An Inquiry
Related products
-
Polycrystalline mullite fiber insulation

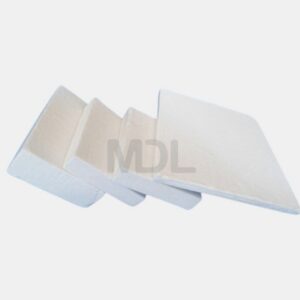

Polycrystalline Mullite Fiber Board Supplier | PCW Insulation Board
