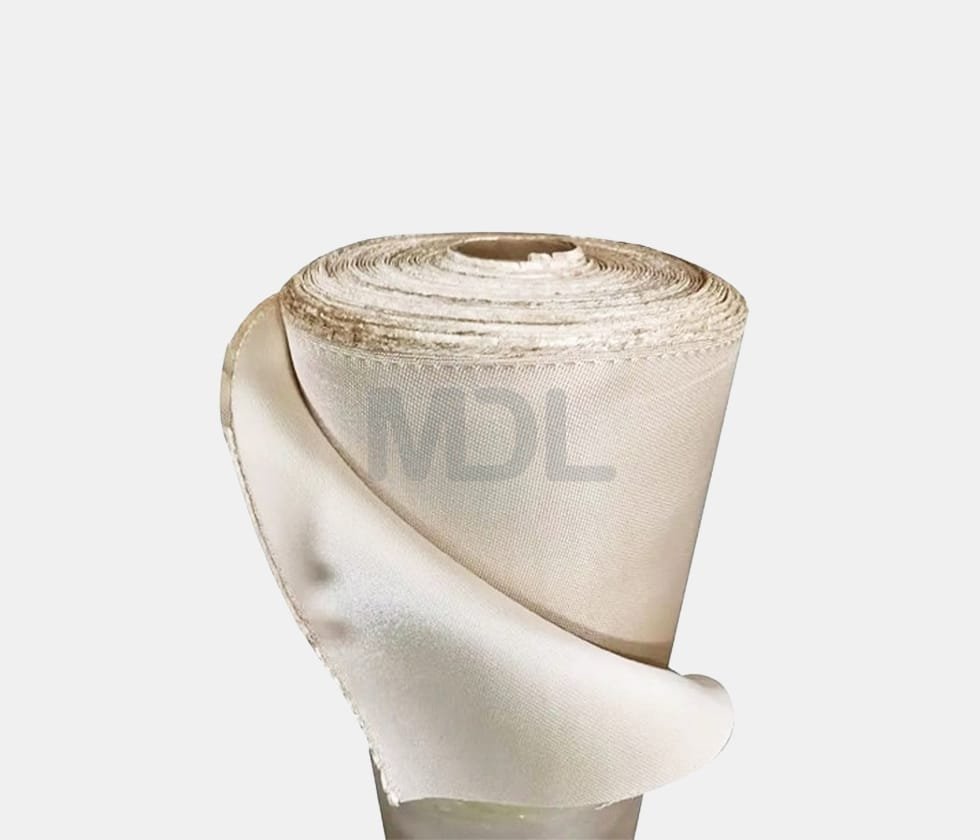

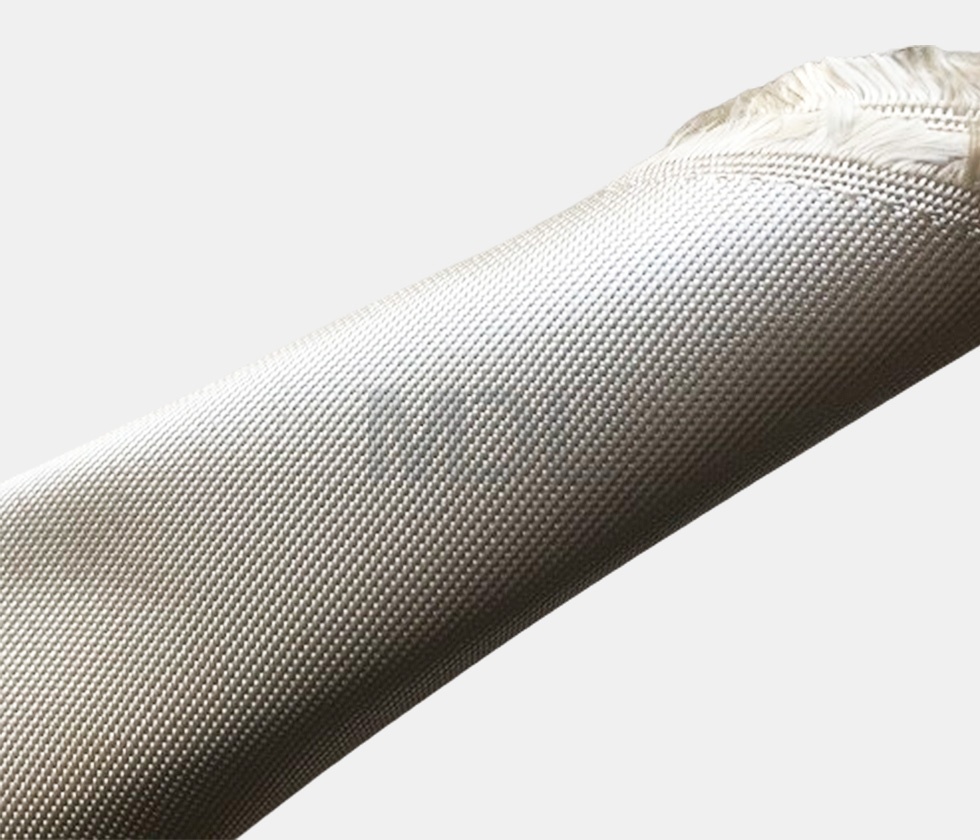

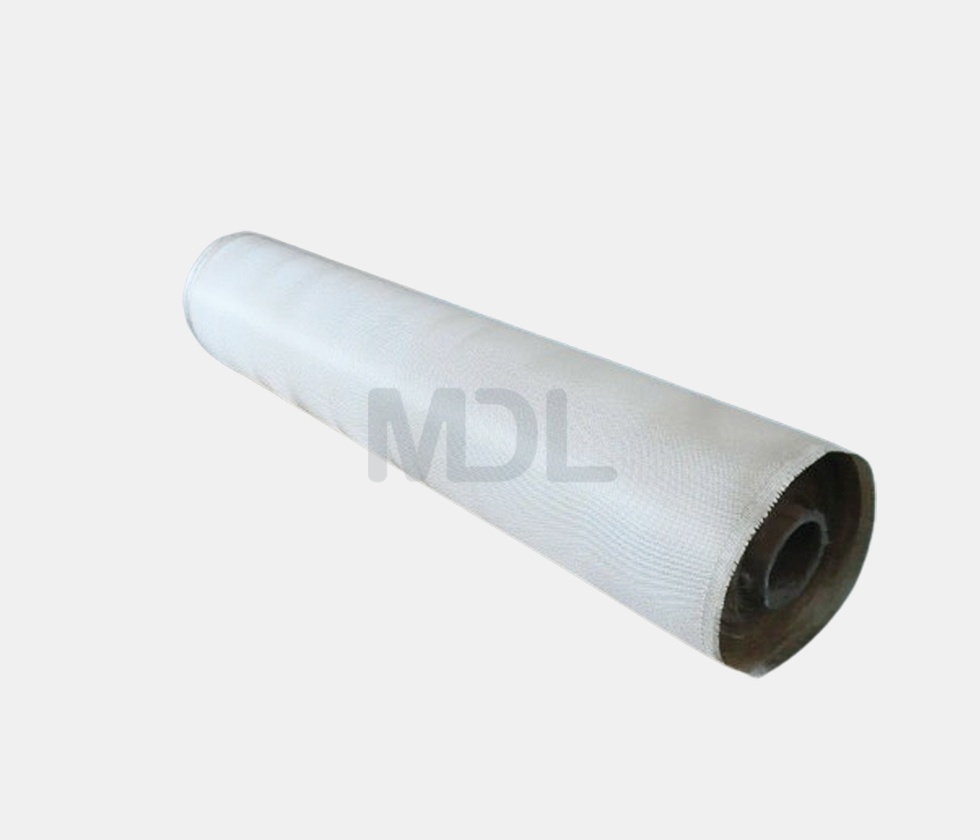

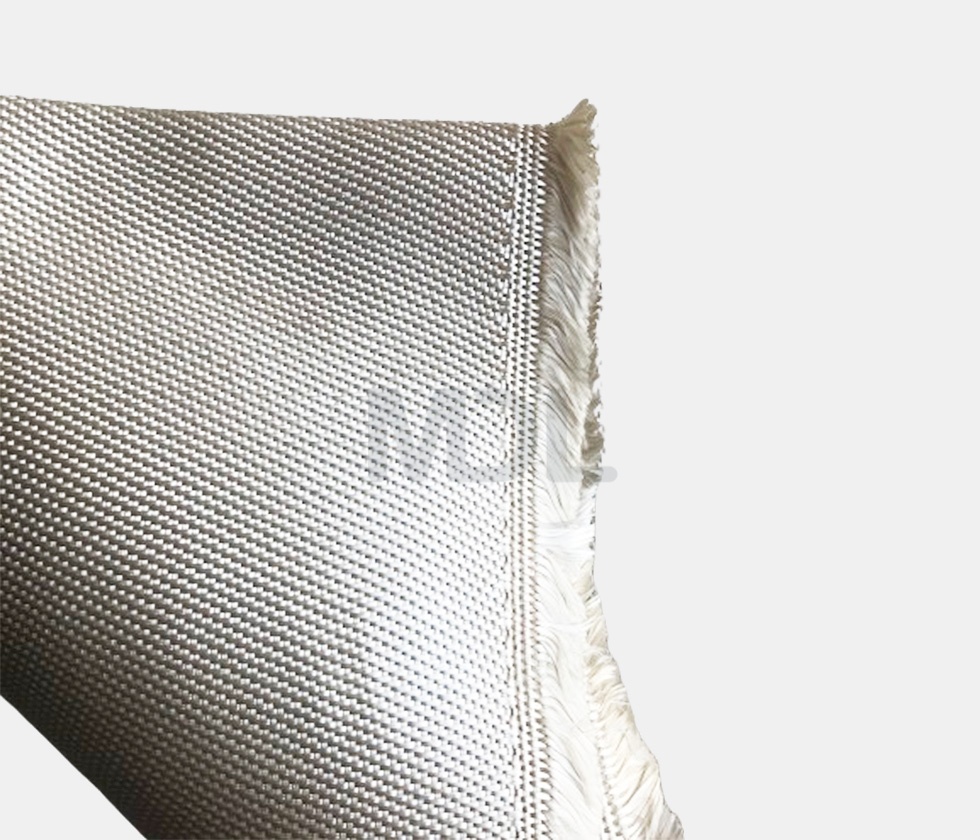

High Silica Fabric (Silica Textile)
Product Description:
Temp Grade: 1000°C
Fabric Weight: 600gsm,1000gsm, 1150gsm, 1250gsm
Specification:
• Thickness: 0.7-1.30mm
• Width:914/1000mm
Customized specification is acceptable.
Share
product details
• DESCRIPTION
High silica fiber fabric is a high-temperature-resistant inorganic fiber material with a silicon dioxide (SiO₂) content of more than 96%. Its softening point is close to 1700°C, allowing the material to maintain reliable performance and be used continuously in high-temperature environments below 1000°C.
As a high-performance high temperature silica fiber, it offers excellent resistance to heat and flame while maintaining the flexibility and strength required for industrial applications. Silica fiber fabrics can be processed into different constructions and thicknesses to meet various thermal insulation and high-temperature protection requirements.
Also known as silica fiber cloth, silica textile, or high silica cloth, this material is suitable for applications requiring flexible and durable high-temperature protection, including thermal insulation, fire protection, welding protection, and heat shielding.
Mindelun supplies high-performance High Silica Fiber Fabric in customized specifications for industrial insulation and high-temperature protection applications.
• PROPERTIES
Ø Low thermal conductivity, good heat insulation effect.
Ø Good chemical stability, strong corrosion resistance, inert to most chemicals.
Ø Good electrical insulation performance.
Ø Does not contain any asbestos and ceramic fiber, completely harmless to health.
Ø The surface is soft, does not cut hands, can be processed well.
• APPLICATION
Ø Aerospace thermal ablative materials.
Ø Turbine insulation material, engine exhaust insulation, muffler cover.
Ø Ultra-high temperature steam pipeline insulation, high temperature expansion joint insulation, heat exchanger cover, flange joint insulation, steam valve insulation.
Ø Shipbuilding industry, heavy machinery and equipment industry heat insulation protection.
Ø Metallurgical casting insulation protection, kiln and high temperature industrial furnace protection cover.
Ø Nuclear power plant equipment and wire and cable fire insulation.
• SPECIFICATION
| 1 | Item | Unit | Test Result | Test Result | Test Result | Test Result | Test Result |
| 2 | Modle | / | MDL-84 | MDL-86 | MDL-88 | MDL-860 | MDL-26 |
| 3 | Thickness | (mm) | 0.7 | 1 | 1.3 | 1.25 | 0.26 |
| 4 | Working temperature | (℃) | 1000 | 1000 | 1000 | 1000 | 1000 |
| 5 | Weave | / | Satin 8HS | Satin | Satin12HS | Gummed cover | Plain |
| 6 | Weight | (g/m₂) | 600 | 1000 | 1150 | 1350 | 240 |
| 7 | Width | (mm) | 914±10mm 1000±10mm |
914±10mm 1000±10mm |
914±10mm 1000±10mm |
860±10mm 1000±10mm |
820±10mm 1000±10mm |
| 8 | Warp | （Yarns/cm) | Warp: 18±1 | Warp: 18±1 | Warp: 18±1 | Warp: 18±2 | Warp: 18.5±1 |
| Weft: 13±1 | Weft: 13±1 | Weft: 13±1 | Weft: 13±2 | Weft: 12.5±1 | |||
| 9 | WARP Tensile Strength |
(N/inch) | 800 | 800 | 1000 | 1000 | 300 |
| 10 | Weft Tensile Strength |
(N/inch) | 500 | 600 | 750 | 750 | 250 |
| 11 | SiO₂ | (%) | 96 | 96 | 96 | 96 | 96 |
| 12 | LoI | (%) | 3 | 3 | 3 | 3 | 3 |
| 16 | Specification: Thickness: 0.26–1.3mm, customized. Length*Width: 920*50000mm, customized. |
||||||
| 17 | NOTE: The physical properties mentioned above represent this lot of products. These values should not be considered as specification values of this type of material. |
||||||
