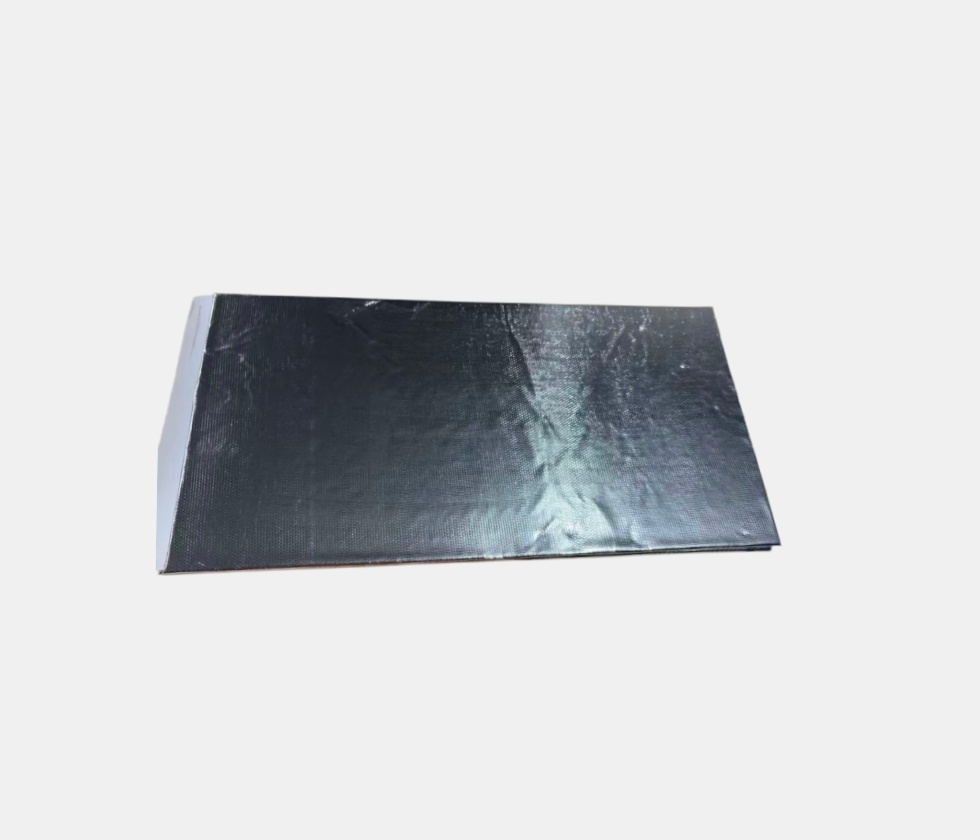

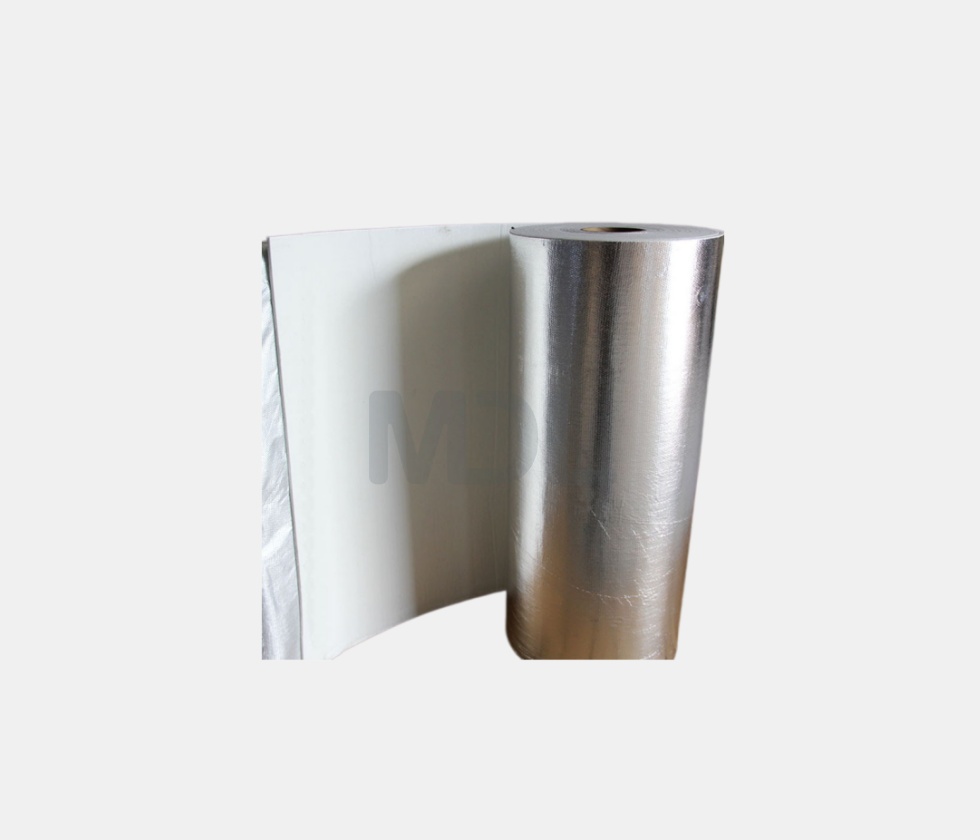

Aluminium Foil Ceramic Fiber Paper
Product Description:
Temp Grade: 1050°C,1260°C, 1360°C,1430°C.
Density: 180kg/m₃, 200kg/m₃
Specification:
• 0.5 x610/1220 x 120000mm
• 1 x610/1220 x 60000mm
• 2 x610/1220x15000mm
• 3 x610/1220 x 20000mm
• 4×610/1220x15000mm
• 5×610/1220x12000mm
• 10×610/1220x6000mm
Customized specification is acceptable.
Share
product details
• DESCRIPTION
Aluminum foil ceramic fiber paper (more accurately known as aluminum foil laminated ceramic fiber paper) is a high-performance thermal insulation material formed by combining aluminum foil with ceramic fiber paper. It integrates the advantages of both components, not only retaining the high-temperature resistance and thermal insulation properties of ceramic fiber paper but also enhancing strength, airtightness, and heat reflection capabilities through the aluminum foil layer.
As a professional aluminum foil ceramic fiber paper supplier, Mindelun offers more than standard aluminum foil coated ceramic fiber paper grade products. We also provide aluminum foil coated ceramic fiber blanket in various densities, along with ceramic fiber and rock wool insulation materials, delivering reliable solutions for thermal insulation, energy saving, and fire protection.
• PROPERITIES
Ø Double insulation: Ceramic fiber paper substrates have a low thermal conductivity and can prevent heat conduction. The aluminum foil on the surface can reflect most of the thermal radiation, achieving an insulation effect where 1+1>2.
Ø Sturdy and high tearing resist: The aluminum foil layer plays a reinforcing role, significantly enhancing the tensile strength and bending resistance of the material, making it less prone to damage during processing and installation.
Ø Clean, stain-proof and waterproof: The aluminum foil layer can effectively prevent ceramic fibers from chipping and dusting, and resist to oil, water splash and moisture, making the material surface cleaner and more beautiful.
Ø Strong sealing performance: A continuous and dense aluminum foil layer significantly enhance the material’s air tightness and better block gases and moisture.
Ø Good corrosion resistance: It has good chemical stability and can resist the erosion of most chemical substances.
Ø Soft, Light weight, easy installation and ECO friendly: It retains the softness and light weight of ceramic fiber paper, making it convenient for secondary processing such as stamping, cutting and winding.
• APPLICATION
Ø Automotive industry: The insulation of the engine compartment and the wrapping of the exhaust manifold can effectively reduce the heat transfer to the vehicle body and protect the surrounding components.
Ø Industrial high temperature equipment: Insulation and heat preservation materials for high-temperature pipelines, valves, and furnace bodies, as well as sealing gaskets used for high-temperature flanges, door covers, and other parts.
Ø Household appliance: Internal insulation and heat insulation layers of various heaters and electric heating equipment.
Ø Building Hvac: The insulation and heat preservation of fans and air conditioning ducts. Can simultaneously achieve the functions of heat preservation, fire prevention and moisture prevention.
Ø Various metals for stress relief heat insulation high temperature building fire protection.
• ADVICE ON PRODUCTS CHOOSE
ØTemperature ≤ 1050℃: Choose 1260 STD (the most cost-effective option)
ØTemperature 1100–1200℃: Choose 1360 HA
ØHigh thermal shock / corrosion resistance: Choose 1430 HZ
ØHigh waterproof requirements: Choose double-sided aluminum foil coating
• SPECIFICATION
| 1 | Item | Unit | Test Result | Test Result | Test Result | Test Result |
| 2 | Specification temp | (℃) | 1260(ST) | 1260(HP) | 1360(HA) | 1430(HZ) |
| 3 | Working temperature | (℃) | 1050 | 1100 | 1200 | 1350 |
| 4 | Density | (kg/m3) | 180/200 | 180/200 | 180/200 | 180/200 |
| 5 | Permanent shrinkage Rate of liner (24h, density 200kg/m3) | (%) | -3 | -3 | -3 | -3 |
| (1000℃） | (1100℃） | (1200℃） | (1350℃） | |||
| 6 | Thermal conductivity of each heat surface(density 200kg/m3) | （W/m.k) | 0.1(400℃） | 0.1(400℃） | 0.1(400℃） | 0.1(400℃） |
| 0.12（800℃） | 0.12（800℃） | 0.13（800℃） | 0.19（800℃） | |||
| 7 | Moisture content | (%) | ≤1% | ≤1% | ≤1% | ≤1% |
| 8 | Compression strength (density 200kg/m3) | (Mpa) | ≧0.3 | ≧0.3 | ≧0.3 | ≧0.3 |
| 9 | Shot contenT | (%) | ≤10% | ≤10% | ≤10% | ≤10% |
| 10 | Al2O3 | (%) | ≧43 | ≧45 | ≧52 | ≧35 |
| 11 | Al2O3+SiO2 | (%) | 97 | 97 | 97 | 97 |
| 12 | Fe2O3 | (%) | ＜1.0 | ＜1.0 | ＜1.0 | ＜1.0 |
| 13 | Na2O+K2O | (%) | ＜0.5 | ＜0.5 | ＜0.5 | ＜0.5 |
| 14 | Aluminum foil thickness | (mm) | 0.05-0.1 | |||
| 15 | Aluminum foil radiation heat rate | (%) | ≧80 | |||
| 16 | Thickness | (mm) | 0.5/1/2/3/4/5/6/10 | |||
| 17 | Width | (mm) | 500/610/1000/1200/1220 | |||
| 18 | Length | (mm) | 10000/12000/15000/20000/30000/60000/120000 | |||
Professional Insulation Materials Manufacturer in China
Mindelun supplies a comprehensive range of ceramic fiber, mineral wool, calcium silicate, silica fiber and advanced insulation materials for industrial applications. From standard products to customized insulation solutions, we help customers improve thermal efficiency, equipment protection and operating performance.
Send Us An Inquiry
Related products
-
Aluminum foil coated special insulation

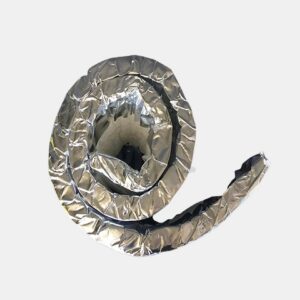

Aluminium Foil Faced Ceramic Fiber Blanket Supplier | Mindelun
Read more -
Aluminum foil coated special insulation

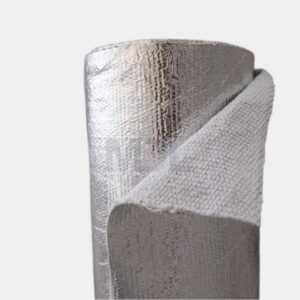

High Temperature Aluminium Foil Coated Ceramic Fiber Cloth
